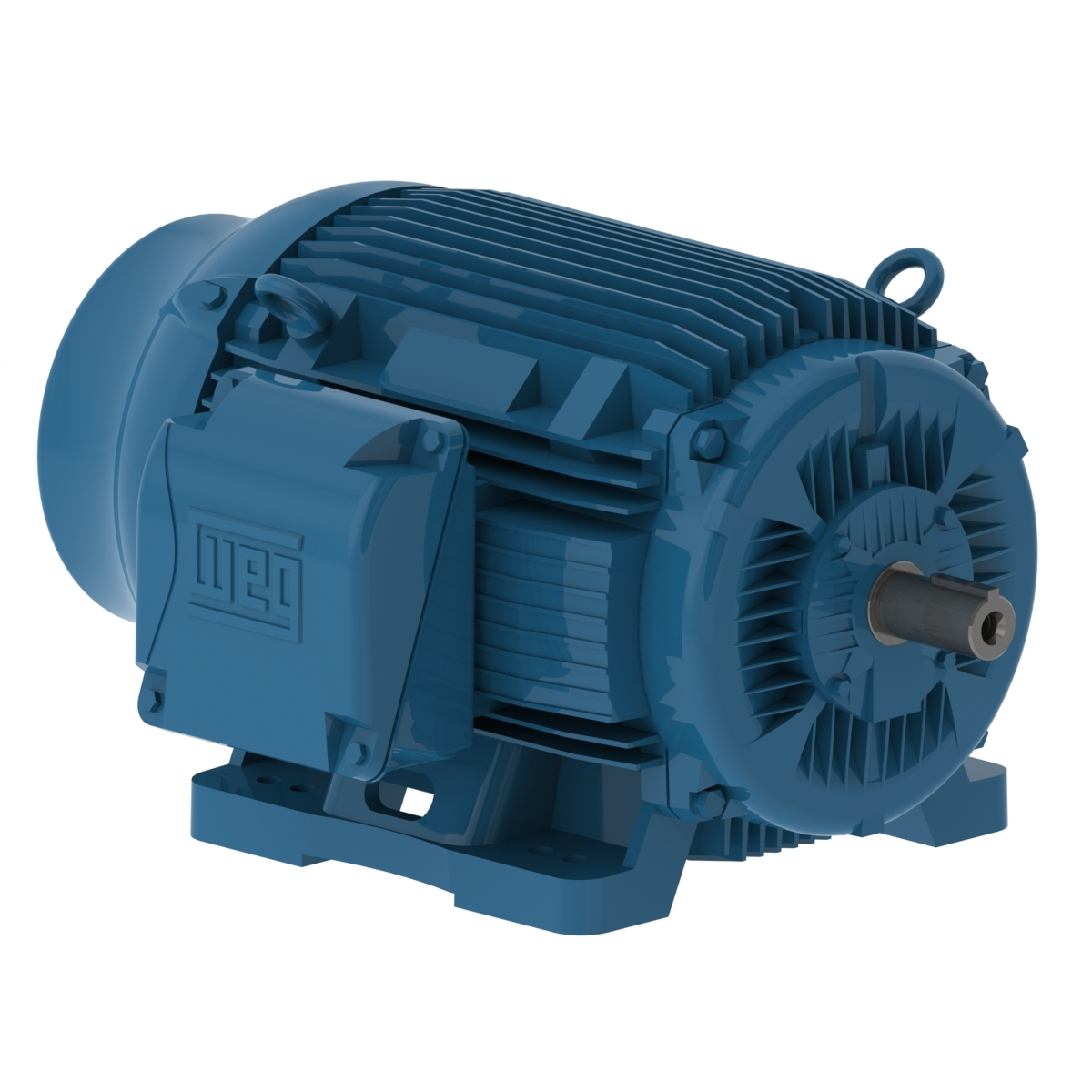

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C , 104°F |
| Base Type | Rigid Base |
| Bearing Cap | Yes |
| Bearing Type | Ball |
| Breakdown Torque | 229% |
| Cc Number | CC029A |
| Connection Cables Quantity | 12 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency @ 100% | 94.5% |
| Efficiency @ 50% | 94.1% |
| Efficiency @ 75% | 94.5% |
| Efficiency Group | Premium |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 404/405T |
| Frame Material | Cast Iron |
| Frame Size | 404/5T |
| Frequency | 60 Hz |
| Full Load Amps | 170/84.9A , 84.9/170-188A |
| Full Load Amps @ 50hz | 104/68.1/69/70.9/95.7/99.3A |
| Grounding Lugs | Double |
| Horsepower | 75 hp |
| Hp | 50 hp, 75 hp |
| Impregnation Method | Constant Resin Flow |
| Insulation Class | Class F |
| L.r. Amperes | 543/1087A |
| Locked Rotor Time (cold) | 30 sec. |
| Locked Rotor Time (hot) | 17 sec. |
| Locked Rotor Torque | 229% |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Type | NPT |
| Moment Of Inertia (j) | 40.2 lbs.-sq. ft. |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting | F-1 |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1180 RPM |
| Nema Design | B |
| No Load Amps | 30/60A |
| No. Of Speeds | 1 |
| Noise | 68 dBA |
| Noise Level | 68 dBA |
| Number Of Poles | 6 |
| Overall Length | 39 3/4" |
|---|---|
| Overload Protection | No |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 50% | 0.74 |
| Power Factor 75% | 0.83 |
| Power Factor_100% | 0.86 |
| Rated Current | 84.9/170A |
| Rated Speed | 1184 RPM |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW/CCW |
| Rpm | 1100-1200 RPM |
| Rpm Range | 1101-1200 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Dia. | 2 7/8" |
| Shaft Length | 7 1/4" |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 1.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Thermal Protection | None |
| Torque | 329 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 230/460/380V |
| Warranty | 3 yrs. |
| Balancing Method | 1/2 Key |
| Cold Locked Rotor Time | 25s |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | B |
| Enclosure Rating | IC411 |
| Frequency | 50/60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| l. r. amps | 593A |
| locked rotor time (hot) | 14s |
| Lrc | 6.2x(Code G) |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Nde Bearing Seal | Yes |
| No. Of Poles | 6 |
| Output Rating | 55 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Torque | 401 lbs.-ft. |
| Rated Voltage | 415V |
| Standard Logo | sae.png |
| Tropicalized Painting | Without |
| Height (cm) | 91.44 |
|---|---|
| Length (cm) | 100.96 |
| Width (cm) | 86.11 |
| HS Code | 8501528040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 535.95 |
