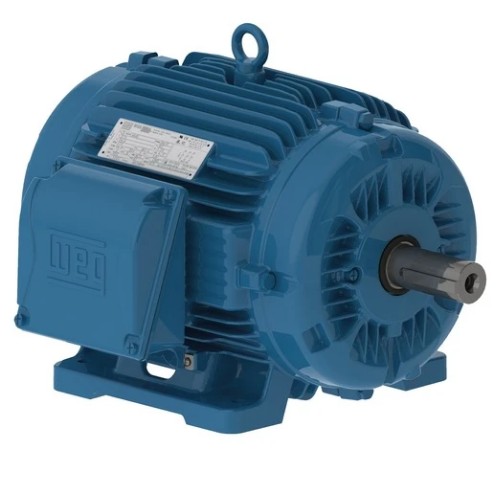

| Item | Electric Motor |
|---|---|
| Composition | Cast Iron |
| Efficiency | 50% |
| Efficiency @ 100% | 88.1% |
| Enclosure Type | Tefc |
| Frame | 404T |
| Frame Size | 404T |
| Frequency | 60 Hz |
| Full Load Amps | 62/124-137A |
| Hp | 50 hp |
| Insulation Class | Class F |
| No Load Amps | 24/48A |
| Noise | 65 dBA |
| Number Of Poles | 6 |
| Output Hp | 50 hp |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor_100% | 0.85 |
| Rpm | 1100-1200 RPM |
| Service Factor | 1 |
| Torque | 228 lbs.-ft. |
| Voltage | 208-230/460V |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | Yes |
| break-down torque | 0% |
| Cold Locked Rotor Time | 82s |
| Connection Cables Quantity | 12 |
| De Bearing Seal | Yes |
| Degree Of Protection | IP55 |
| Design | D |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC411 |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum |
| Flange | Without |
|---|---|
| Frame Material | Cast Iron |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| Impregnation Method | Constant Resin Flow |
| l. r. amps | 825-746/373A |
| locked rotor time (hot) | 46s |
| Locked Rotor Torque | 280% |
| Lrc | 5.9x(Code G) |
| Main Terminal Box Hole | 3" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| moment of inertia | 36 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-2 |
| Nde Bearing Seal | Yes |
| No. Of Poles | 6 |
| Noise Level | 68 dBA |
| Output Rating | 37 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| rated amps | 140-126/63.2A |
| Rated Speed | 1135 RPM |
| Rated Torque | 231 lbs.-ft. |
| Rated Voltage | 208-230/460V |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Shaft Locking Device | With |
| Shaft Material | SAE 4140 Carbon Steel |
| Slip | 5.42% |
| Standard Logo | sae.png |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| temp. rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Right Position |
| Tropicalized Painting | Without |
| Height (cm) | 25.4 |
|---|---|
| Length (cm) | 50.8 |
| Width (cm) | 25.4 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 546.75 |
