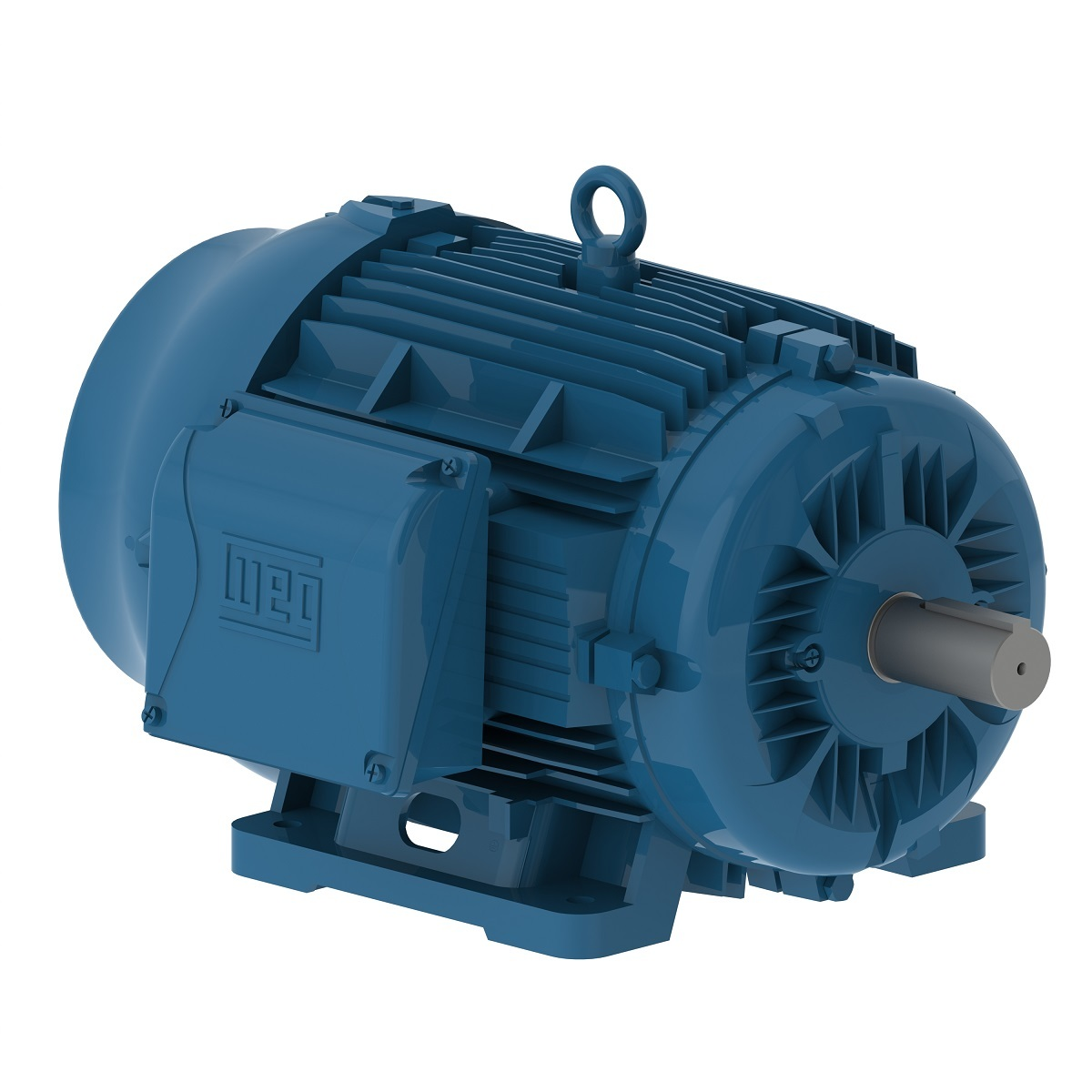

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Break-down Torque | 260% |
| Breakdown Torque | 260% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 54 sec. |
| Connection Cables Quantity | 6 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency @ 100% | 93% |
| Efficiency @ 50% | 91.7% |
| Efficiency @ 75% | 92.4% |
| Efficiency At 1 % | 84% |
| Efficiency At 50 % | 68% |
| Efficiency At 75 % | 79% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 254/6T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 55.4A |
| Grounding Lugs | Single |
| Horsepower | 20 hp |
| Hot Locked Rotor Time | 30 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 382A |
| L.r. Amperes | 382A |
| Locked Rotor Time (cold) | 54 sec. |
| Locked Rotor Time (hot) | 30 sec. |
| Locked Rotor Torque | 240% |
| Lrc | 6.9X(Code H) |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Hole Size | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 3.1 lbs.-sq. ft. |
| Moment Of Inertia (j) | 3.1 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1770 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 22.1A |
| No. Of Poles | 4 |
|---|---|
| Noise | 64 dBA |
| Noise Level | 64 dBA |
| Output | 20 hp |
| Output Rating | 20 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor 50% | 0.68 |
| Power Factor 75% | 0.79 |
| Power Factor At 1 % | 93 |
| Power Factor At 50 % | 91.7 |
| Power Factor At 75 % | 92.4 |
| Power Factor_100% | 0.84 |
| Rated Current | 55.4A |
| Rated Speed | 1770 RPM |
| Rated Torque | 59.3 lbs.-ft. |
| Rated Voltage | 200V , 200V AC |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 58.7 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 200V AC |
| Balancing Method | 1/2 Key |
| Cold Locked Rotor Time | 54s |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Enclosure Rating | IC411 |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| locked rotor time (hot) | 30s |
| Material | Carbon Steel |
| Nde Bearing Seal | V Ring |
| Output Rating | 15 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Standard Logo | sae.png |
| Voltage | 200V |
| Height (cm) | 77.98 |
|---|---|
| Length (cm) | 115.06 |
| Width (cm) | 85.09 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 178.65 |
