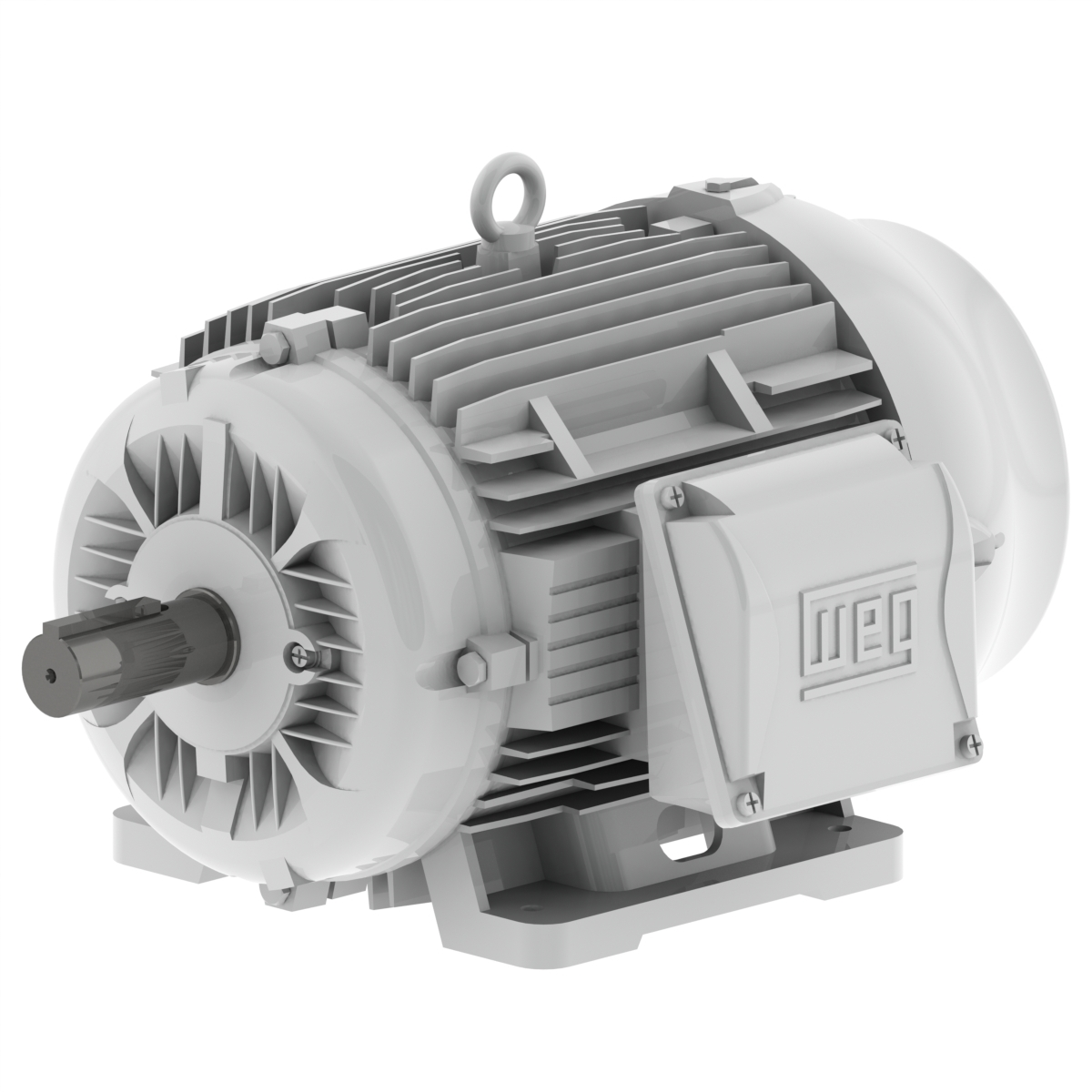

| Item | Electric Motor |
|---|---|
| Composition | Cast Iron |
| Efficiency | 50% |
| Efficiency @ 100% | 85.5% |
| Enclosure Type | Tefc |
| Frame | 324T |
| Frame Size | 324T |
| Frequency | 60 Hz |
| Full Load Amps | 19.5/38.9-43A |
| Hp | 15 hp |
| Insulation Class | Class F |
| No Load Amps | 8.5/17A |
| Noise | 56 dBA |
| Number Of Poles | 8 |
| Phase | 3 |
| Power Factor | 75% |
| Power Factor_100% | 0.83 |
| Rpm | 850 RPM |
| Service Factor | 1 |
| Torque | 91.4 lbs.-ft. |
| Voltage | 208-230/460V |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Breakdown Torque | 0% |
| Cold Locked Rotor Time | 36s |
| Connection Cables Quantity | 12 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | D |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC411 |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | Without |
|---|---|
| Frame Material | Cast Iron |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Hot Locked Rotor Time | 20s |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amperes | 251-227/113A |
| Locked Rotor Torque | 280% |
| Lrc | 5.2x(Code G) |
| Main Terminal Box Hole | 2" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 9.63 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-2 |
| Nde Bearing Seal | V Ring |
| No. Of Poles | 8 |
| Noise Level | 56 dBA |
| Output Rating | 11 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Current | 48.2-43.6/21.8A |
| Rated Speed | 840 RPM |
| Rated Torque | 93.8 lbs.-ft. |
| Rated Voltage | 208-230/460V |
| Regreasing System | At Drive End And Non-Drive End |
| Rotation | CW And CCW |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 6.67% |
| Standard Logo | sae.png |
| Starting Method | Direct On Line |
| Synchronous Speed | 900 RPM |
| Temperature Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Right Position |
| Tropicalized Painting | Without |
| Weight (kg) | 224.1 |
|---|
| Style | Model | Voltage | Frequency | Motor Enclosure Design | Service Factor | Hp | Full Load Amps | Nameplate Rpm | Rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 00109ET3E182T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 hp | 4.6/2.3A | 875 RPM | 875 RPM | $1,117.41 | |
| B | 00159ET3E184T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 1 1/2 hp | 5.4/2.7A | 865 RPM | 860 RPM | $1,295.58 | |
| B | 00209ET3E213T-W22 | 230/460/380V | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 2 hp | 6.8/3.4A | 875 RPM | 870 RPM | $2,123.90 | |
| B | 00309ET3E215T-W22 | 230/460V AC | 60 Hz | Totally Enclosed Fan Cooled | 1.25 | 3 hp | 9.1/4.55A | 870 RPM | 865 RPM | $2,609.18 | |
| C | 00509ET3E254T-W22 | 208-230/460V | 60 Hz | Totally Enclosed Fan Cooled | 1 | 5 hp | 15.2/7.6A | 882 RPM | 880 RPM | $3,785.11 | |
| D | 01009ES3EOW286T-W22 | 208-230/460V | - | - | 1 | 10 hp | 13.9/27.8-30.7A | - | 830 RPM | - | RFQ
|
| E | 00709ET3E256TC-W22 | 230/460/380V AC | 50/60 Hz | Totally Enclosed Fan Cooled | 1.25 | 7 1/2 hp | 11.1/22.2-24.5A | - | 880 RPM | $4,350.86 |
