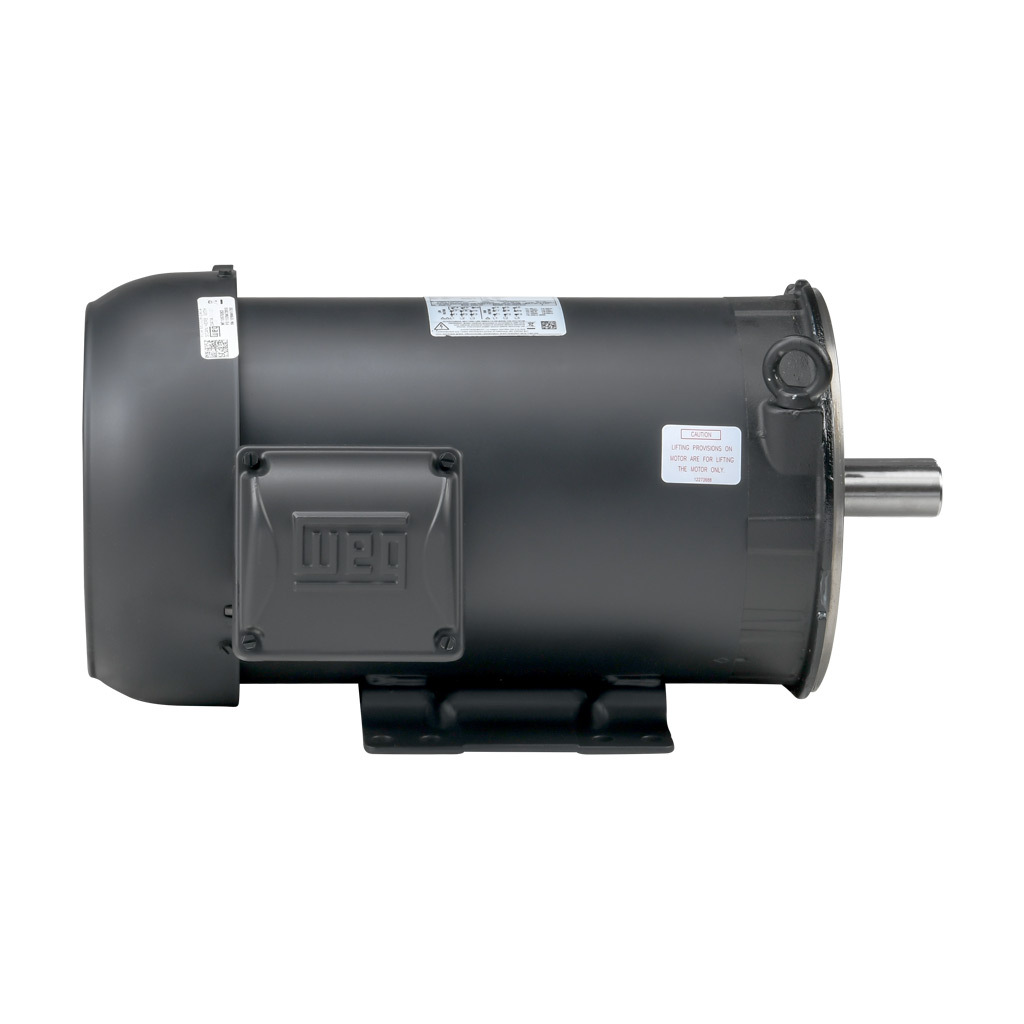

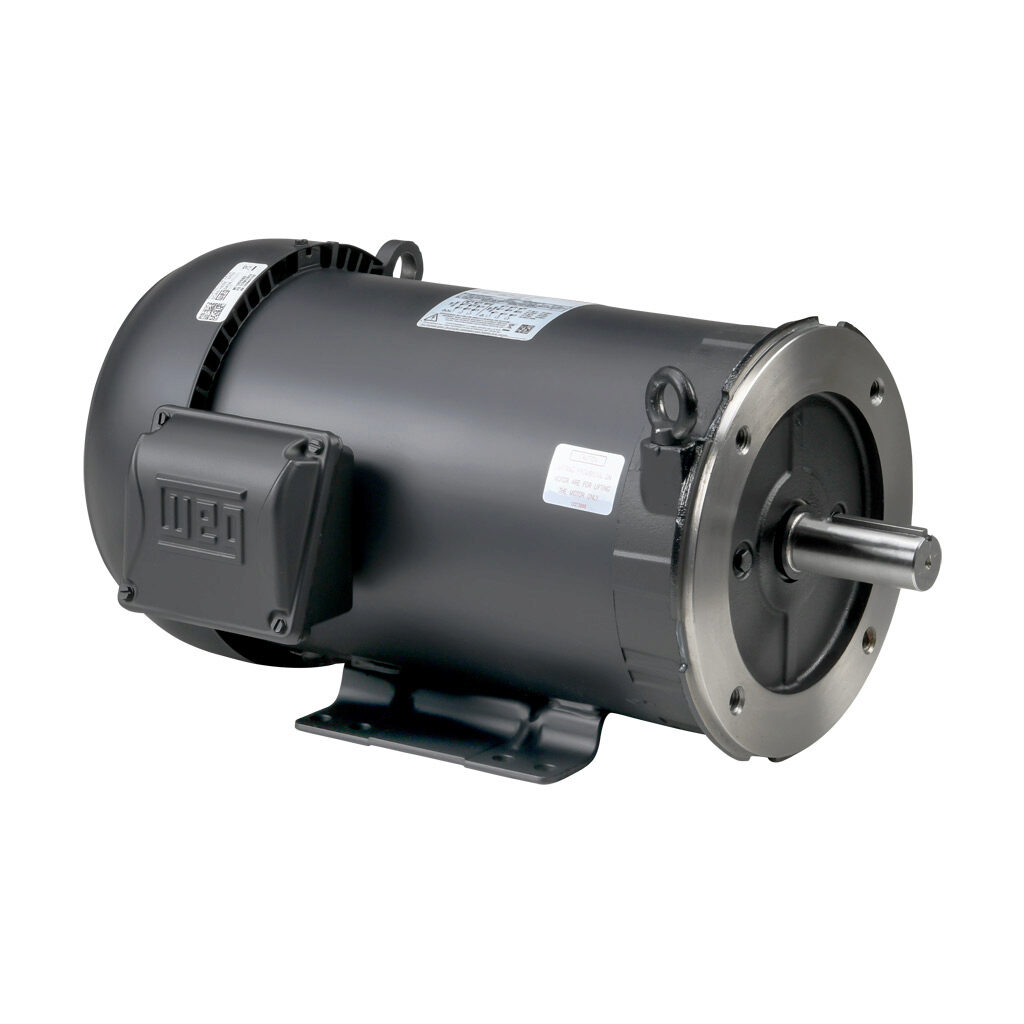

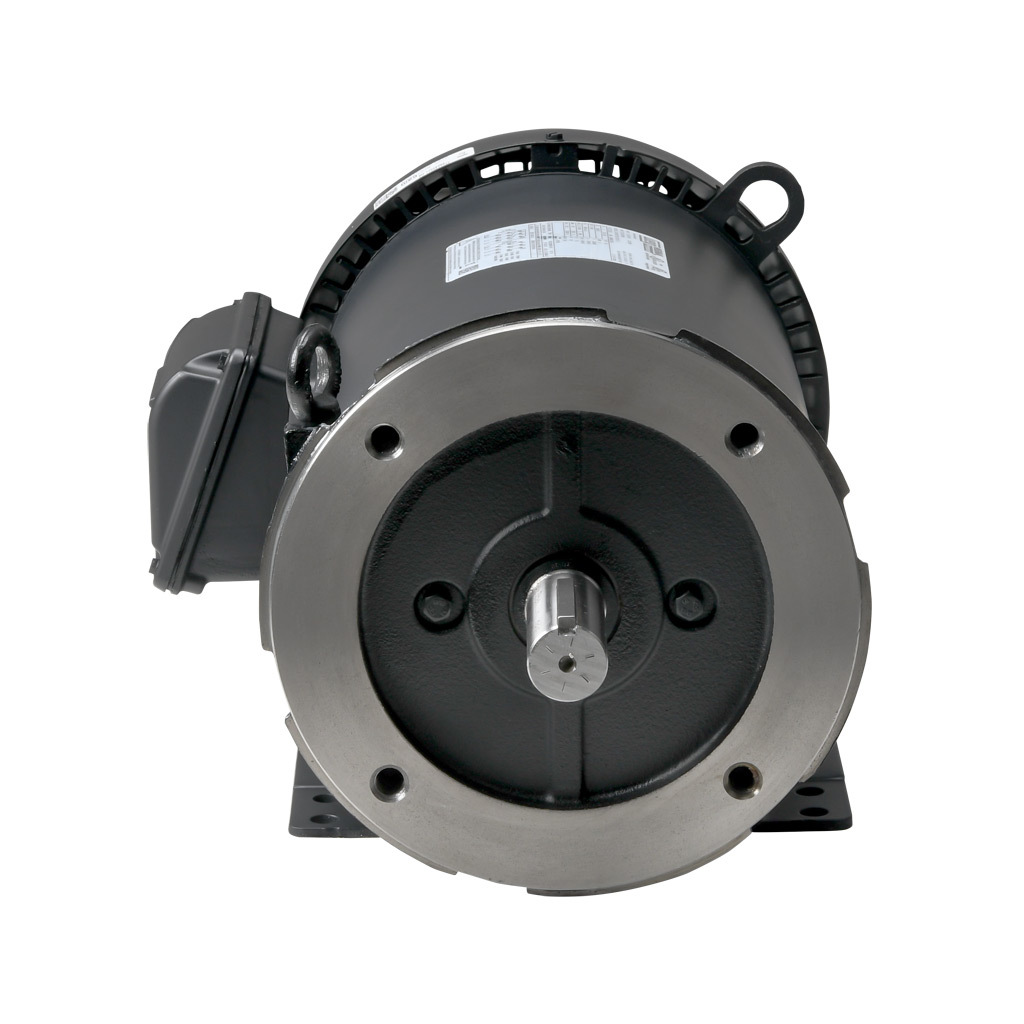

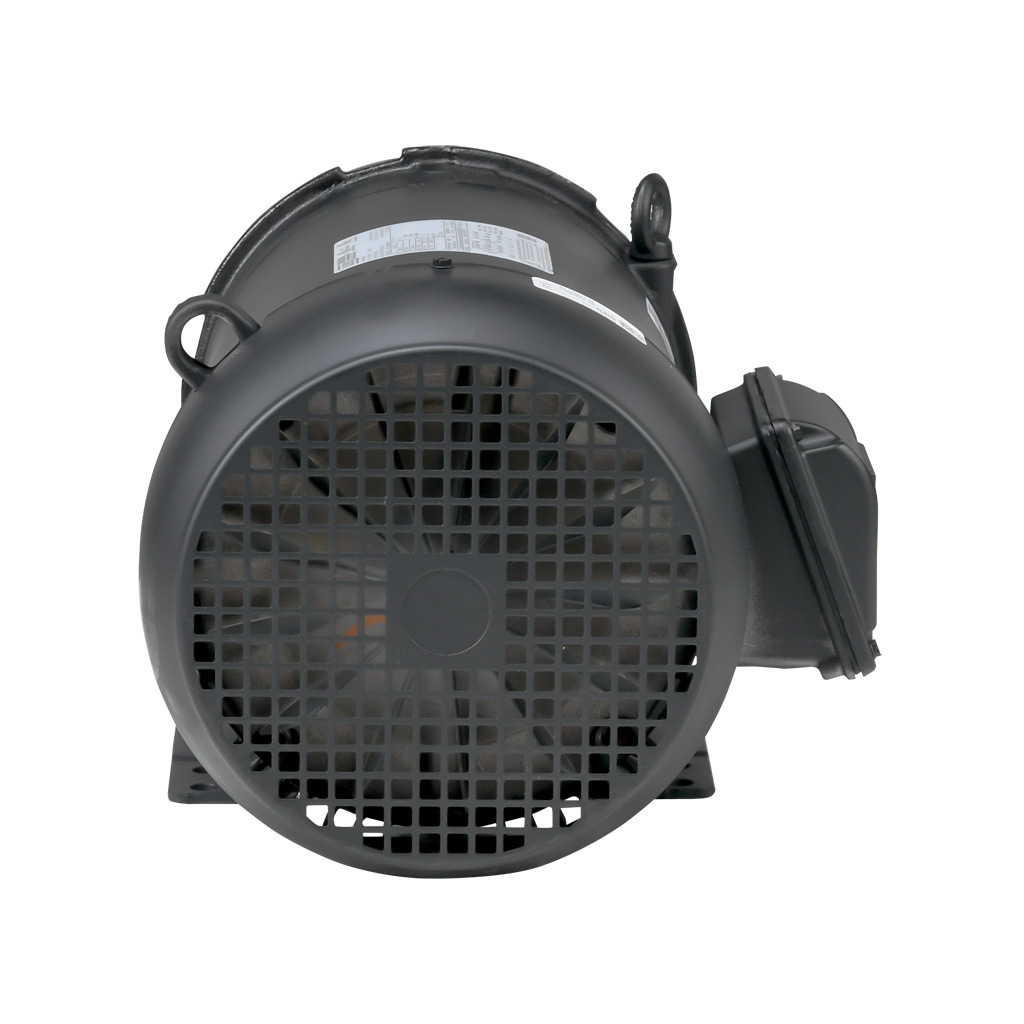

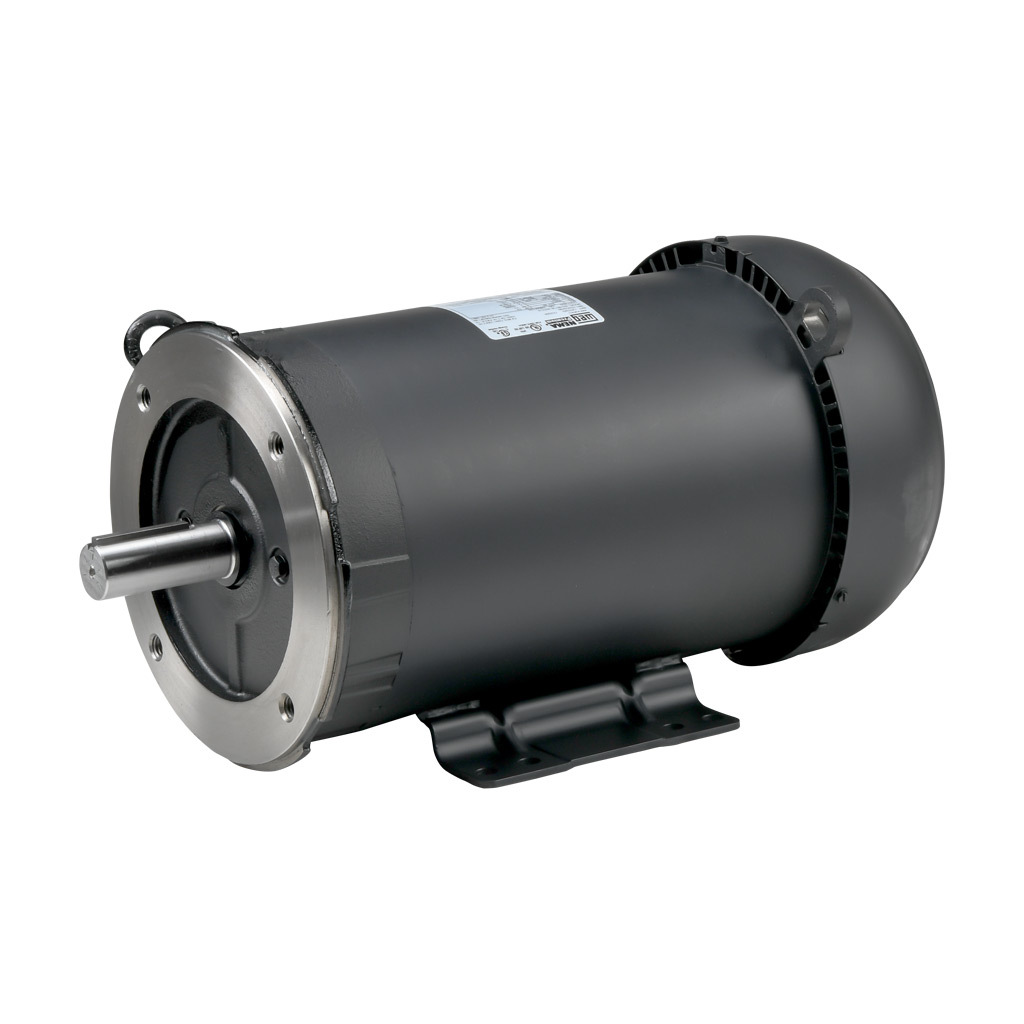

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 300% |
| Breakdown Torque | 300% |
| Cold Locked Rotor Time | 32 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Constant Torque Rating | 4:1 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 89.5% |
| Efficiency @ 100% | 89.5% |
| Efficiency @ 50% | 87.5% |
| Efficiency @ 75% | 88.5% |
| Efficiency At 1 % | 81% |
| Efficiency At 50 % | 61% |
| Efficiency At 75 % | 74% |
| Efficiency Group | Premium Efficiency |
| Electrically Reversible | Yes |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 182/4TC |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 18 sec. |
| Hp | 3 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| Integrated Brake | No |
| Ip Rating | IP55 |
| L. R. Amps | 67.1/33.5A |
| L.r. Amperes | 33.5/67.1A |
| Locked Rotor Time (cold) | 32 sec. |
| Locked Rotor Time (hot) | 18 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 8.8X(Code K) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.4017 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.4017 lbs.-sq. ft. |
| Motor Application | General Purpose And Inverter Rated |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame | 182TC |
| Motor Speed | 1765 RPM |
| Motor Type | Induction |
| Mounting | F-1 , Foot Mounted |
| Mounting Orientation | Horizontal, Vertical |
| Nameplate Rpm | 1765 RPM |
| Nema Design | Design B |
|---|---|
| No Load Amps | 2/4A , 4/2A |
| No. Of Poles | 4 |
| Noise Level | 56 dBA |
| Number Of Phases | 3 |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.61 |
| Power Factor 75% | 0.74 |
| Power Factor At 1 % | 89.5 |
| Power Factor At 50 % | 87.5 |
| Power Factor At 75 % | 88.5 |
| Power Factor_100% | 0.81 |
| Rated Current | 3.81/7.62A , 7.62/3.81A |
| Rated Speed | 1765 RPM |
| Rated Torque | 8.93 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Series | S Series |
| Service Factor | 1.15 |
| Shaft Diameter | 1 1/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Shaft Type | Round With Square Key |
| Slip | 1.94% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Variable Torque Rating | 1000:1 |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC |
| Voltage Rating | 208-230/460V AC |
| Voltage Type | AC |
| Balancing Method | 1/2 Key |
| Cold Locked Rotor Time | 37s |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Enclosure Rating | IC411 |
| Frequency | 50 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| l. r. amps | 34.6A |
| locked rotor time (hot) | 21s |
| Lrc | 8x(Code K) |
| Material | Carbon Steel |
| Nde Bearing Seal | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Voltage | 415V |
| Standard Logo | sae.png |
| Tropicalized Painting | Without |
| Height (cm) | 48.26 |
|---|---|
| Length (cm) | 48.26 |
| Width (cm) | 45.72 |
| Country Of Origin | BR |
|---|---|
| Weight (kg) | 42.75 |
