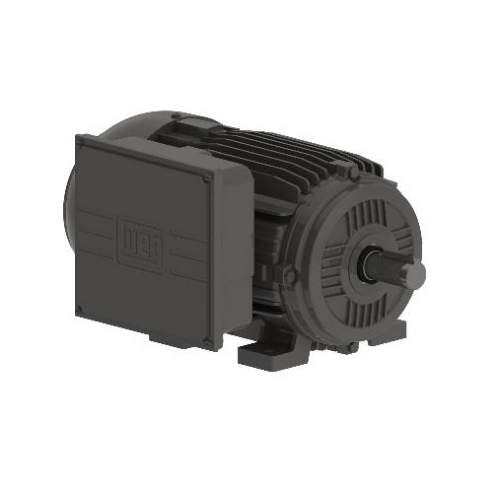

| Item | Electric Motor |
|---|---|
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Break-down Torque | 380% |
| Cold Locked Rotor Time | 73 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 88% |
| Efficiency At 50 % | 75% |
| Efficiency At 75 % | 84% |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 184YZ |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 41 sec. |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 69-62.3/31.2A |
| Locked Rotor Torque | 250% |
| Lrc | 8.6X(Code K) |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 0.1898 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Speed | 3515 RPM |
| Mounting | Pad Mounted |
| No Load Amps | 2.24-2.6/1.3A |
| No. Of Poles | 2 |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 86.5 |
| Power Factor At 50 % | 82.5 |
| Power Factor At 75 % | 86.5 |
| Rated Current | 8.02-7.25/3.63A |
| Rated Torque | 4.48 lbs.-ft. |
| Rated Voltage | 208-230/460V AC |
| Rotation | CW/CCW |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.36% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
|---|---|
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/460V AC |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bearing Cap | No |
| break-down torque | 380% |
| Cold Locked Rotor Time | 73s |
| Connection Cables Quantity | 9 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC418 |
| Enclosure Type | TEAO |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| l. r. amps | 69-62.3/31.2A |
| locked rotor time (hot) | 41s |
| Locked Rotor Torque | 250% |
| Lrc | 8.6x(Code K) |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| moment of inertia | 0.1898 lbs.-sq. ft. |
| Mounting | Pad Mounted, F-1 |
| Nde Bearing Seal | V Ring |
| no load amps | 2.24-2.6/1.3A |
| No. Of Poles | 2 |
| Output Rating | 2.2 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| rated amps | 82-7.25/3.63A |
| Rated Speed | 3515 RPM |
| Rated Torque | 4.48 lbs.-ft. |
| Rated Voltage | 208-230/460V |
| Rotation | CW And CCW |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.36% |
| Standard Logo | sae.png |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| temp. rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Height (cm) | 25.4 |
|---|---|
| Length (cm) | 50.8 |
| Width (cm) | 25.4 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 47.7 |
