| Item | OEM Blower |
|---|---|
| Airflow @ 0.000 In Sp | 133 CFM |
| Airflow @ 0.100 In Sp | 128 CFM |
| Airflow @ 0.125 In Sp | Not Applicable |
| Airflow @ 0.250 In Sp | 119 CFM |
| Airflow @ 0.375 In Sp | Not Applicable |
| Airflow @ 0.400 In Sp | 112 CFM |
| Airflow @ 0.500 In Sp | 105 CFM |
| Airflow @ 0.500 In Sp Range | 105 CFM |
| Airflow @ 0.750 In Sp | Not Applicable |
| Airflow @ 1.000 In Sp | Not Applicable |
| Airflow @ 1.250 In Sp | Not Applicable |
| Airflow @ 1.500 In Sp | Not Applicable |
| Airflow @ 10.00 In Sp | Not Applicable |
| Airflow @ 11.00 In Sp | Not Applicable |
| Airflow @ 12.00 In Sp | Not Applicable |
| Airflow @ 13.00 In Sp | Not Applicable |
| Airflow @ 2.000 In Sp | Not Applicable |
| Airflow @ 2.500 In Sp | Not Applicable |
| Airflow @ 3.000 In Sp | Not Applicable |
| Airflow @ 3.500 In Sp | Not Applicable |
| Airflow @ 4.000 In Sp | Not Applicable |
| Airflow @ 4.500 In Sp | Not Applicable |
| Airflow @ 5.000 In Sp | Not Applicable |
| Airflow @ 6.000 In Sp | Not Applicable |
| Airflow @ 7.000 In Sp | Not Applicable |
| Airflow @ 8.000 In Sp | Not Applicable |
| Airflow @ 9.000 In Sp | Not Applicable |
| Amca Fan Class | Not Rated |
| Amps | 0.33A |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Assembly | Assembled |
| Bearing Type | Ball |
| Blower Conduit Box | Yes |
| Blower Outlet Shape | Rectangular |
| Blower Wheel Diameter | 3 3/4" |
| Blower Wheel Width | 1 7/8" |
| Brake Horsepower | 1/30 hp |
| Cfm @ 0.000-in. Sp | 133 |
| Cfm @ 0.200-in. Sp | 126 CFM |
| Cfm @ 0.300-in. Sp | 119 CFM |
| Cfm @ 0.400-in. Sp | 112 CFM |
| Cfm @ 0.500-in. Sp | 105 CFM |
| Chemical Resistant | No |
| Compatible Speed Control | No |
| Conduit Box | Yes |
| Corrosion Resistant | No |
| Dimension A | 6 9/16" |
| Dimension B | 7 1/4" |
| Dimension C | 5 5/8" |
| Dimension D | 2 5/8" |
| Dimension E | 6 9/16" |
| Dimension J | 5 1/8" |
| Dimension K | 4" |
| Dimension L | 4 1/8" |
| Dimension M | 1 1/2" |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Drive Type | Direct Drive |
| Flange Type | Flanged |
| For Air Type | Clean Air |
| For High-static Pressure Applications | No |
| For Location | Indoor |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
|---|---|
| Full Load Amps | 0.33A |
| Hazardous Location Application | No |
| Hazardous Location Specification | Not Applicable |
| High-efficiency Motor | No |
| Housing Color | Gray |
| Housing Depth | 6 1/2" |
| Housing Finish | Enamel |
| Housing Height | 6 1/2" |
| Housing Material | Steel |
| Housing Material Finish | Enamel |
| Housing Width | 5 5/8" |
| Hz | 50/60 Hz |
| Includes | Discharge Mounting Flange |
| Includes Drive Package | Not Applicable |
| Includes Motor | Yes |
| Includes Mounting Hardware | No |
| Inlet Dia. | 3 1/4" |
| Inlet Diameter | 3 1/4" |
| Lead Length | 13" |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 104°F |
| Maximum Inlet Air Temperature | 104°F |
| Motor Duty Class | Continuous |
| Motor Enclosure Design | Open |
| Motor Frame Designation | 3.3\\ Psc Motor |
| Motor Horsepower | 1/30 hp |
| Motor Insulation | Class B |
| Motor Location | Out Of Airstream |
| Motor Type | Permanent Split Capacitor |
| Mount Type | All Position |
| Mounting Orientation | Multiposition |
| Mounting Position | All Position |
| No. Of Inlets | 1 |
| Number Of Inlets | 1 |
| Number Of Speeds | 1 |
| Oem Replacement | Yes |
| Outlet Dia. | Not Applicable |
| Outlet Height | 2 1/2" |
| Outlet Shape | Rectangular |
| Outlet Width | 2 1/2" |
| Overall Depth | 6 1/2" |
| Overall Height | 6 1/2" |
| Overall Width | 5 5/8" |
| Phase | 1 |
| Replacement For | 2C915 |
| Resistance Properties | Corrosion Resistant |
| Rpm | 2880 |
| Shaft Diameter | 8 mm |
| Sound Level | Not Rated |
| Spark Resistant Construction Type | Not Rated |
| Speed Controllable | No |
| Thermal Overload Protection | Yes |
| Thermal Protection | Auto |
| Wheel Bore Dia. | 8 mm |
| Wheel Dia. | 3 3/4" |
| Wheel Material | Steel |
| Wheel Material Finish | Galvanized |
| Wheel Type | Forward Curve |
| Wheel Width | 1 7/8" |
| With Flange | Yes |

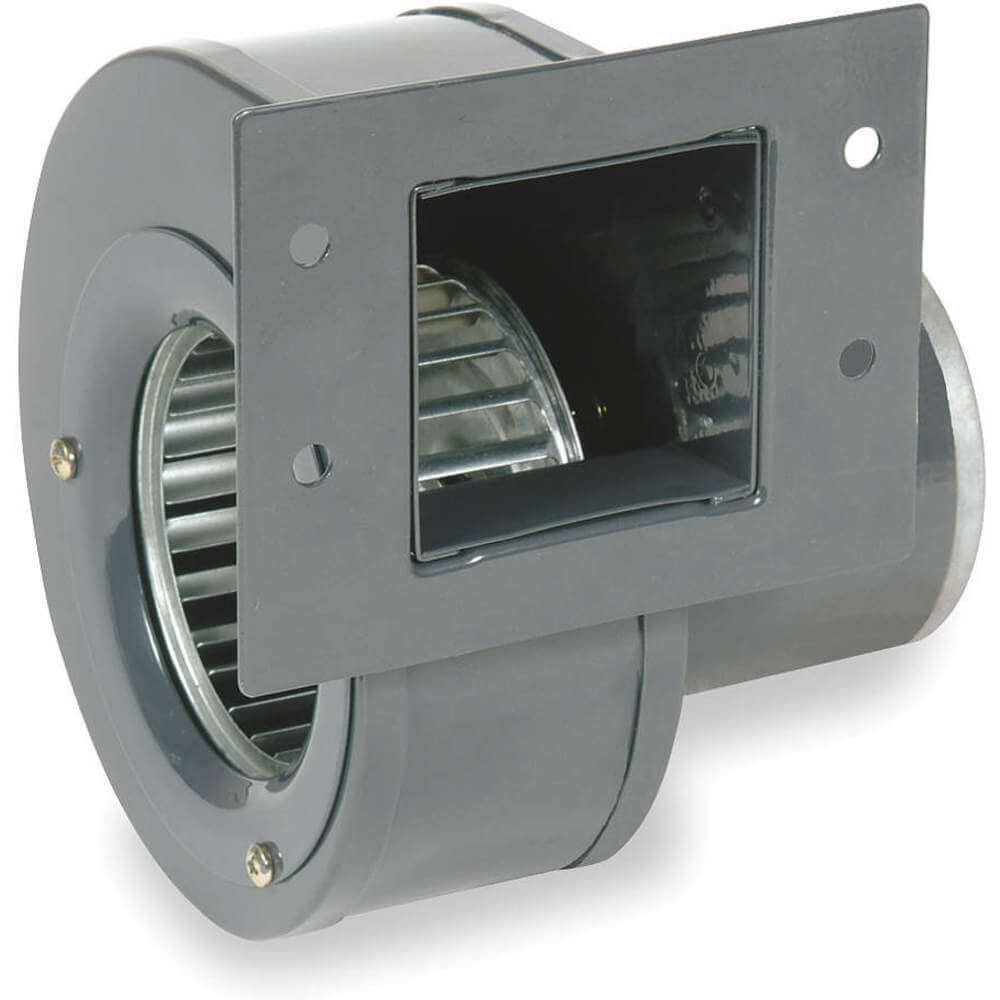

Dayton 1TDP6 blower is an OEM specialty blower ideal for replacing an original blower in HVAC systems. The 1/30 HP permanent-split capacitor motor on these blowers makes them suitable for continuous-duty cooling or ventilating operations. Dayton 1TDP6 blower motor features cast aluminium end shields to dissipate heat faster, decrease downtime and prolong the service life.
| Height (cm) | 16.67 |
|---|---|
| Length (cm) | 16.67 |
| Width (cm) | 14.29 |
| HS Code | 8414596060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 2.4435 |
Yes, this blower has safety features like automatic thermal protection to stop the motor in case of overheating, overloads or phase failure and protect the blower.
This blower can be mounted in any position using side mounting tabs and mounting flanges.
The housing on this blower is made of steel with enamel finish for structural rigidity & durability. The fan wheel is made of galvanised steel to resist corrosion.
The Dayton 1TDP6 blower's fan rotates at a maximum speed of 2880 RPM while offering airflows up to 133 cfm.
| Style | Model | Outlet Shape | Housing Material | Overall Height | Overall Width | Overall Depth | Outlet Height | Outlet Width | Motor Enclosure Design | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1TDN1 | Round | Steel | 3 3/4" | 3 3/16" | 4" | Not Applicable | Not Applicable | Open | $86.08 | |
| B | 1TDN2 | Round | Steel | 3 7/8" | 3 15/16" | 4" | Not Applicable | Not Applicable | Open | $103.21 | |
| C | 1TDN3 | Rectangular | Steel | 4 5/8" | 3 1/2" | 4 1/2" | 1 5/8" | 1 1/2" | Open | $75.86 | |
| C | 1TDN4 | Rectangular | Steel | 4 1/2" | 4 3/16" | 4 1/2" | 1 5/8" | 2" | Open | $75.41 | |
| D | 1TDN5 | Rectangular | Steel | 4 5/8" | 4 11/16" | 4 1/2" | 1 5/8" | 2" | Open | $113.23 | |
| E | 1TDN6 | Round | Steel | 5 3/4" | 5" | 6 7/16" | Not Applicable | Not Applicable | Open | $120.42 | |
| F | 1TDN7 | Round | Steel | 5 3/4" | 5 1/8" | 6 7/16" | Not Applicable | Not Applicable | Open | $110.04 |
