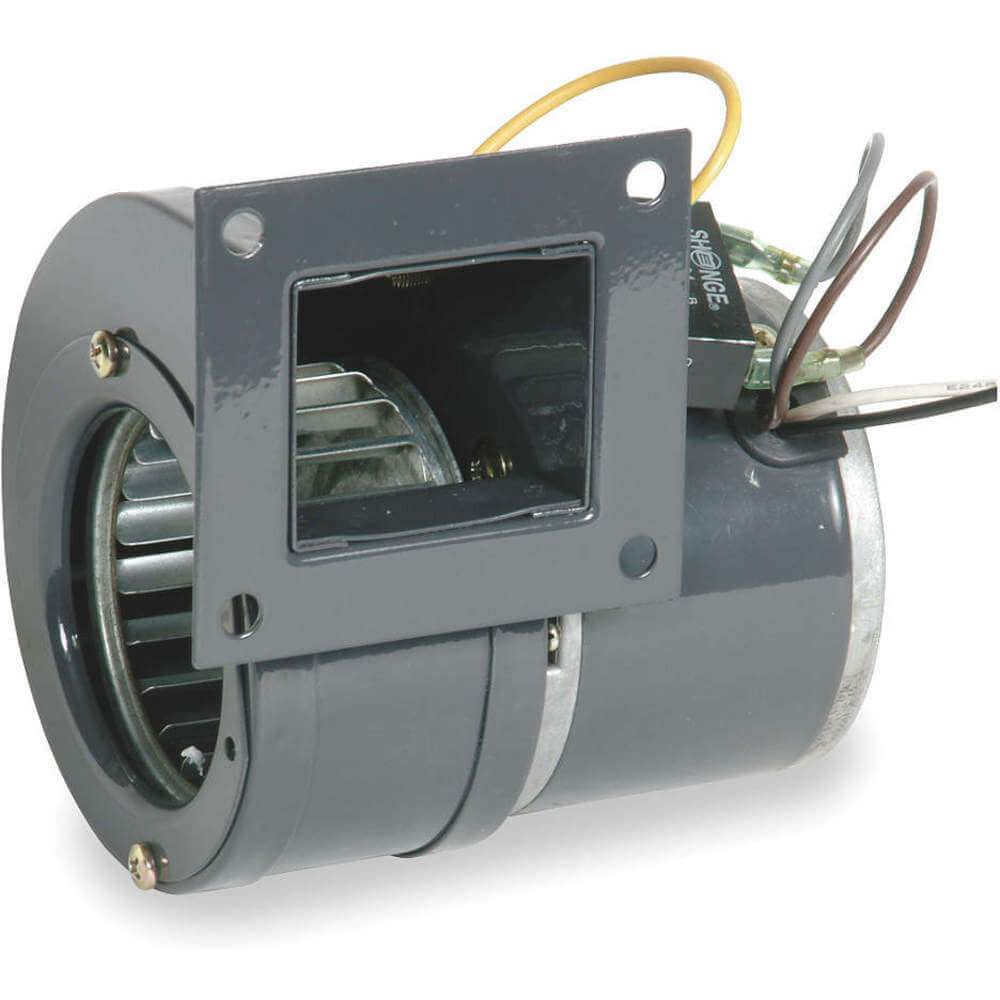

| Item | OEM Blower |
|---|---|
| Airflow @ 0.000 In Sp | 53 CFM |
| Airflow @ 0.100 In Sp | 52 CFM |
| Airflow @ 0.125 In Sp | Not Applicable |
| Airflow @ 0.250 In Sp | 48 CFM |
| Airflow @ 0.375 In Sp | Not Applicable |
| Airflow @ 0.400 In Sp | 41 CFM |
| Airflow @ 0.500 In Sp | 23 CFM |
| Airflow @ 0.500 In Sp Range | 23 CFM |
| Airflow @ 0.750 In Sp | Not Applicable |
| Airflow @ 1.000 In Sp | Not Applicable |
| Airflow @ 1.250 In Sp | Not Applicable |
| Airflow @ 1.500 In Sp | Not Applicable |
| Airflow @ 10.00 In Sp | Not Applicable |
| Airflow @ 11.00 In Sp | Not Applicable |
| Airflow @ 12.00 In Sp | Not Applicable |
| Airflow @ 13.00 In Sp | Not Applicable |
| Airflow @ 2.000 In Sp | Not Applicable |
| Airflow @ 2.500 In Sp | Not Applicable |
| Airflow @ 3.000 In Sp | Not Applicable |
| Airflow @ 3.500 In Sp | Not Applicable |
| Airflow @ 4.000 In Sp | Not Applicable |
| Airflow @ 4.500 In Sp | Not Applicable |
| Airflow @ 5.000 In Sp | Not Applicable |
| Airflow @ 6.000 In Sp | Not Applicable |
| Airflow @ 7.000 In Sp | Not Applicable |
| Airflow @ 8.000 In Sp | Not Applicable |
| Airflow @ 9.000 In Sp | Not Applicable |
| Amca Fan Class | Not Rated |
| Amps | 0.3A |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Assembly | Assembled |
| Bearing Type | Ball |
| Blower Conduit Box | No |
| Blower Outlet Shape | Rectangular |
| Blower Wheel Diameter | 2 15/16" |
| Blower Wheel Width | 1 7/8" |
| Brake Horsepower | 1/50 hp |
| Cfm @ 0.000-in. Sp | 53 |
| Cfm @ 0.100-in. Sp | 52 |
| Cfm @ 0.200-in. Sp | 50 CFM |
| Cfm @ 0.300-in. Sp | 47 CFM |
| Cfm @ 0.400-in. Sp | 41 CFM |
| Cfm @ 0.500-in. Sp | 23 CFM |
| Chemical Resistant | No |
| Compatible Speed Control | No |
| Conduit Box | No |
| Corrosion Resistant | No |
| Dimension A | 4 1/2" |
| Dimension B | 5 5/16" |
| Dimension C | 4 11/16" |
| Dimension D | 2 1/8" |
| Dimension E | 4 5/8" |
| Dimension F | 3 5/16" |
| Dimension J | 3 7/16" |
| Dimension K | 3 1/8" |
| Dimension L | 2 13/16" |
| Dimension M | 2 7/16" |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Drive Type | Direct Drive |
| Flange Type | Flanged |
| For Air Type | Clean Air |
| For High-static Pressure Applications | No |
| For Location | Indoor |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Full Load Amps | 0.3A |
| Hazardous Location Application | No |
| Hazardous Location Specification | Not Applicable |
| High-efficiency Motor | No |
| Housing Color | Gray |
| Housing Depth | 4 1/2" |
| Housing Finish | Enamel |
| Housing Height | 4 5/8" |
| Housing Material | Steel |
|---|---|
| Housing Material Finish | Enamel |
| Housing Material Gauge | 0.8 mm |
| Housing Width | 4 11/16" |
| Hz | 50/60 Hz |
| Includes | Discharge Mounting Flange |
| Includes Drive Package | Not Applicable |
| Includes Motor | Yes |
| Includes Mounting Hardware | No |
| Inlet Dia. | 2 9/16" |
| Inlet Diameter | 2 1/2" |
| Lead Length | 13" |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 104°F |
| Maximum Inlet Air Temperature | 104°F |
| Motor Duty Class | Continuous |
| Motor Enclosure Design | Open |
| Motor Horsepower | 1/50 hp |
| Motor Insulation | Class B |
| Motor Location | Out Of Airstream |
| Motor Type | Permanent Split Capacitor |
| Mount Type | All Position |
| Mounting Orientation | Multiposition |
| Mounting Position | All Position |
| No. Of Inlets | 1 |
| Number Of Inlets | 1 |
| Number Of Speeds | 1 |
| Oem Replacement | Yes |
| Outlet Dia. | Not Applicable |
| Outlet Height | 1 5/8" |
| Outlet Shape | Rectangular |
| Outlet Width | 2" |
| Overall Depth | 4 1/2" |
| Overall Height | 4 5/8" |
| Overall Width | 4 11/16" |
| Phase | 1 |
| Replacement For | 4C012 |
| Resistance Properties | Corrosion Resistant |
| Rpm | 3388 |
| Shaft Diameter | 8 mm |
| Sound Level | Not Rated |
| Spark Resistant Construction Type | Not Rated |
| Speed Controllable | No |
| Thermal Overload Protection | Yes |
| Thermal Protection | Auto |
| Wheel Bore Dia. | 8 mm |
| Wheel Dia. | 2 7/8" , 2.938" |
| Wheel Material | Steel |
| Wheel Material Finish | Galvanized |
| Wheel Type | Forward Curve |
| Wheel Width | 1 7/8" |
| With Flange | Yes |
| Current | 0.3A |
| Features | Noise And Vibration Are Held To A Minimum To Maintain CFM At Higher Static Pressures, The Motor Has Cast Aluminum End Shields For Greater Heat Dissipation And Protection, Resulting In Less Downtime And Longer Service Life, This Dynamically Balanced Blower Provides Smooth And Quiet Operation |
| Flange Size | 3 7/16" W x 3 1/8" H |
| Frequency | 50/60 Hz |
| Manufacturer Warranty Length | 1 yr. Limited |
| Maximum Ambient Temperature | 104°F |
| Maximum Fan Speed | 3388 RPM |
| Maximum Static Pressure | 5/8 in. wc |
| Minimum Ambient Temperature | 14°F |
| Minimum Fan Speed | 0 RPM |
| Motor Enclosure | Open |
| Motor Frame Designation | 3.3" PSC motor |
| Motor Insulation Class | Class B |
| Motor Ip Rating | IP20 |
| Motor Speed | 3380 RPM |
| Nameplate Voltage | 115V AC |
| Outlet Type | Flanged |
| Rotation | CW |
| Standards | CE AND ROHS COMPLIANCE, CULUS RECOGNIZED (E47479) FOR THE MOTOR ONLY NOT THE BLOWER |
| Wheel Diameter | 2 7/8" |
| Height (cm) | 11.75 |
|---|---|
| Length (cm) | 11.43 |
| Width (cm) | 11.91 |
| HS Code | 8414596060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.6425 |
| Style | Model | Outlet Shape | Housing Material | Overall Height | Overall Width | Overall Depth | Outlet Height | Outlet Width | Motor Enclosure Design | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1TDN1 | Round | Steel | 3 3/4" | 3 3/16" | 4" | Not Applicable | Not Applicable | Open | $90.84 | |
| B | 1TDN2 | Round | Steel | 3 7/8" | 3 15/16" | 4" | Not Applicable | Not Applicable | Open | $123.05 | |
| C | 1TDN3 | Rectangular | Steel | 4 5/8" | 3 1/2" | 4 1/2" | 1 5/8" | 1 1/2" | Open | $78.89 | |
| C | 1TDN4 | Rectangular | Steel | 4 1/2" | 4 3/16" | 4 1/2" | 1 5/8" | 2" | Open | $78.43 | |
| D | 1TDN6 | Round | Steel | 5 3/4" | 5" | 6 7/16" | Not Applicable | Not Applicable | Open | $125.24 | |
| E | 1TDN7 | Round | Steel | 5 3/4" | 5 1/8" | 6 7/16" | Not Applicable | Not Applicable | Open | $114.44 | |
| E | 1TDN8 | Round | Steel | 5 3/4" | 5" | 6 7/16" | Not Applicable | Not Applicable | Open | $114.31 |
