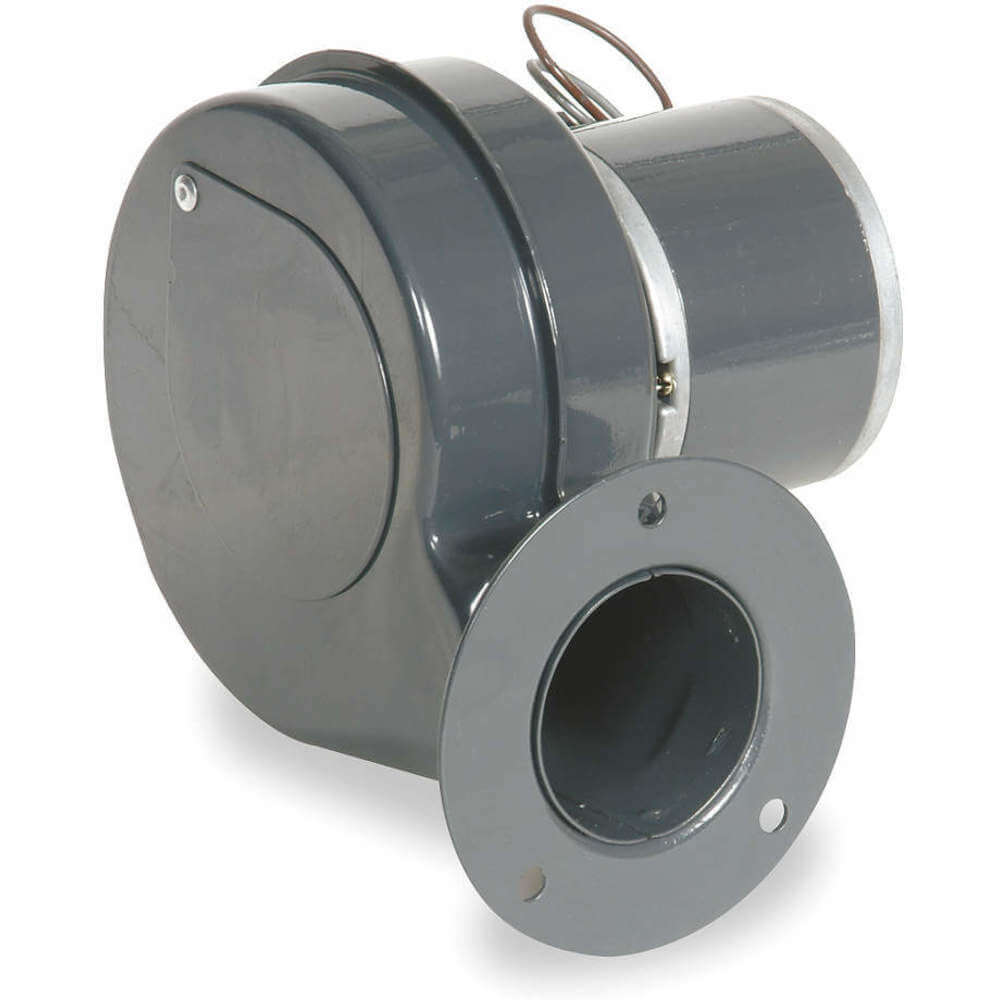

| Item | OEM Blower |
|---|---|
| Airflow @ 0.000 In Sp | 50 CFM |
| Airflow @ 0.100 In Sp | 48 CFM |
| Airflow @ 0.125 In Sp | Not Applicable |
| Airflow @ 0.250 In Sp | 40.5 CFM |
| Airflow @ 0.375 In Sp | Not Applicable |
| Airflow @ 0.400 In Sp | 32 CFM |
| Airflow @ 0.500 In Sp | 18 CFM |
| Airflow @ 0.500 In Sp Range | 18 CFM |
| Airflow @ 0.750 In Sp | Not Applicable |
| Airflow @ 1.000 In Sp | Not Applicable |
| Airflow @ 1.250 In Sp | Not Applicable |
| Airflow @ 1.500 In Sp | Not Applicable |
| Airflow @ 10.00 In Sp | Not Applicable |
| Airflow @ 11.00 In Sp | Not Applicable |
| Airflow @ 12.00 In Sp | Not Applicable |
| Airflow @ 13.00 In Sp | Not Applicable |
| Airflow @ 2.000 In Sp | Not Applicable |
| Airflow @ 2.500 In Sp | Not Applicable |
| Airflow @ 3.000 In Sp | Not Applicable |
| Airflow @ 3.500 In Sp | Not Applicable |
| Airflow @ 4.000 In Sp | Not Applicable |
| Airflow @ 4.500 In Sp | Not Applicable |
| Airflow @ 5.000 In Sp | Not Applicable |
| Airflow @ 6.000 In Sp | Not Applicable |
| Airflow @ 7.000 In Sp | Not Applicable |
| Airflow @ 8.000 In Sp | Not Applicable |
| Airflow @ 9.000 In Sp | Not Applicable |
| Amca Fan Class | Not Rated |
| Amps | 0.23A |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Assembly | Assembled |
| Bearing Type | Ball |
| Blower Conduit Box | Yes |
| Blower Outlet Shape | Round |
| Blower Wheel Diameter | 3" |
| Blower Wheel Width | 1 7/8" |
| Brake Horsepower | 1/125 hp |
| Cfm @ 0.000-in. Sp | 50 |
| Cfm @ 0.100-in. Sp | 48 |
| Cfm @ 0.200-in. Sp | 44 CFM |
| Cfm @ 0.300-in. Sp | 39 CFM |
| Cfm @ 0.400-in. Sp | 32 CFM |
| Cfm @ 0.500-in. Sp | 18 CFM |
| Chemical Resistant | No |
| Compatible Speed Control | No |
| Conduit Box | Yes |
| Corrosion Resistant | No |
| Dimension A | 6 7/16" |
| Dimension B | 6 1/2" |
| Dimension C | 5 1/16" |
| Dimension D | 2 1/4" |
| Dimension E | 5 13/16" |
| Dimension J | 4 1/16" |
| Dimension L | 2 3/8" |
| Dimension M | 2 13/16" |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Drive Type | Direct Drive |
| Flange Type | Flanged |
| For Air Type | Clean Air |
| For High-static Pressure Applications | No |
| For Location | Indoor |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Full Load Amps | 0.23A |
| Hazardous Location Application | No |
| Hazardous Location Specification | Not Applicable |
| High-efficiency Motor | No |
| Housing Color | Gray |
| Housing Depth | 6 7/16" |
| Housing Finish | Enamel |
| Housing Height | 5 3/4" |
| Housing Material | Steel |
| Housing Material Finish | Enamel |
|---|---|
| Housing Material Gauge | 0.8 mm |
| Housing Width | 5 1/8" |
| Hz | 50/60 Hz |
| Includes | Discharge Mounting Flange, Inlet Cover |
| Includes Drive Package | Not Applicable |
| Includes Motor | Yes |
| Includes Mounting Hardware | No |
| Inlet Dia. | 2 3/8" |
| Inlet Diameter | 2 3/8" |
| Lead Length | 13" |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 104°F |
| Maximum Inlet Air Temperature | 104°F |
| Motor Duty Class | Continuous |
| Motor Enclosure Design | Open |
| Motor Horsepower | 1/125 hp |
| Motor Insulation | Class B |
| Motor Location | Out Of Airstream |
| Motor Type | Permanent Split Capacitor |
| Mount Type | All Position |
| Mounting Orientation | Multiposition |
| Mounting Position | All Position |
| No. Of Inlets | 1 |
| Number Of Inlets | 1 |
| Number Of Speeds | 1 |
| Oem Replacement | Yes |
| Outlet Dia. | 2 1/8" |
| Outlet Height | Not Applicable |
| Outlet Shape | Round |
| Outlet Width | Not Applicable |
| Overall Depth | 6 7/16" |
| Overall Height | 5 3/4" |
| Overall Width | 5 1/8" |
| Phase | 1 |
| Replacement For | 4C440 |
| Resistance Properties | Corrosion Resistant |
| Rpm | 3036 |
| Shaft Diameter | 8 mm |
| Sound Level | Not Rated |
| Spark Resistant Construction Type | Not Rated |
| Speed Controllable | No |
| Thermal Overload Protection | Yes |
| Thermal Protection | Auto |
| Wheel Bore Dia. | 8 mm |
| Wheel Dia. | 3" |
| Wheel Material | Steel |
| Wheel Material Finish | Galvanized |
| Wheel Type | Forward Curve |
| Wheel Width | 1 7/8" |
| With Flange | Yes |
| Current | 0.23A |
| Features | Maintains cfm at Higher Static Pressures, Open Motors with Cast Aluminum End Shields Dissipate Heat to Help Reduce Downtime and Extend Service Life |
| Flange Size | 4 1/16" Dia. |
| Frequency | 50/60 Hz |
| Manufacturer Warranty Length | 1 yr. Limited |
| Maximum Ambient Temperature | 104°F |
| Maximum Fan Speed | 3036 RPM |
| Maximum Static Pressure | 5/8 in. wc |
| Minimum Ambient Temperature | 14°F |
| Minimum Fan Speed | 0 RPM |
| Motor Enclosure | Open |
| Motor Frame Designation | 3.3" PSC motor |
| Motor Insulation Class | Class B |
| Motor Ip Rating | IP20 |
| Motor Speed | 3080 RPM |
| Nameplate Voltage | 115V AC |
| Outlet Diameter | 2 1/8" |
| Outlet Type | Flanged |
| Rotation | CCW |
| Standards | CE AND ROHS COMPLIANCE, CULUS RECOGNIZED (E47479) FOR THE MOTOR ONLY NOT THE BLOWER |
| Wheel Diameter | 3" |
| Height (cm) | 14.76 |
|---|---|
| Length (cm) | 16.35 |
| Width (cm) | 13.02 |
| HS Code | 8414596060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 2.0475 |
| Style | Model | Outlet Shape | Housing Material | Overall Height | Overall Width | Overall Depth | Outlet Height | Outlet Width | Motor Enclosure Design | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1TDN1 | Round | Steel | 3 3/4" | 3 3/16" | 4" | Not Applicable | Not Applicable | Open | $90.84 | |
| B | 1TDN2 | Round | Steel | 3 7/8" | 3 15/16" | 4" | Not Applicable | Not Applicable | Open | $123.05 | |
| C | 1TDN3 | Rectangular | Steel | 4 5/8" | 3 1/2" | 4 1/2" | 1 5/8" | 1 1/2" | Open | $78.89 | |
| C | 1TDN4 | Rectangular | Steel | 4 1/2" | 4 3/16" | 4 1/2" | 1 5/8" | 2" | Open | $78.43 | |
| D | 1TDN5 | Rectangular | Steel | 4 5/8" | 4 11/16" | 4 1/2" | 1 5/8" | 2" | Open | $117.76 | |
| E | 1TDN6 | Round | Steel | 5 3/4" | 5" | 6 7/16" | Not Applicable | Not Applicable | Open | $125.24 | |
| F | 1TDN8 | Round | Steel | 5 3/4" | 5" | 6 7/16" | Not Applicable | Not Applicable | Open | $114.31 |
