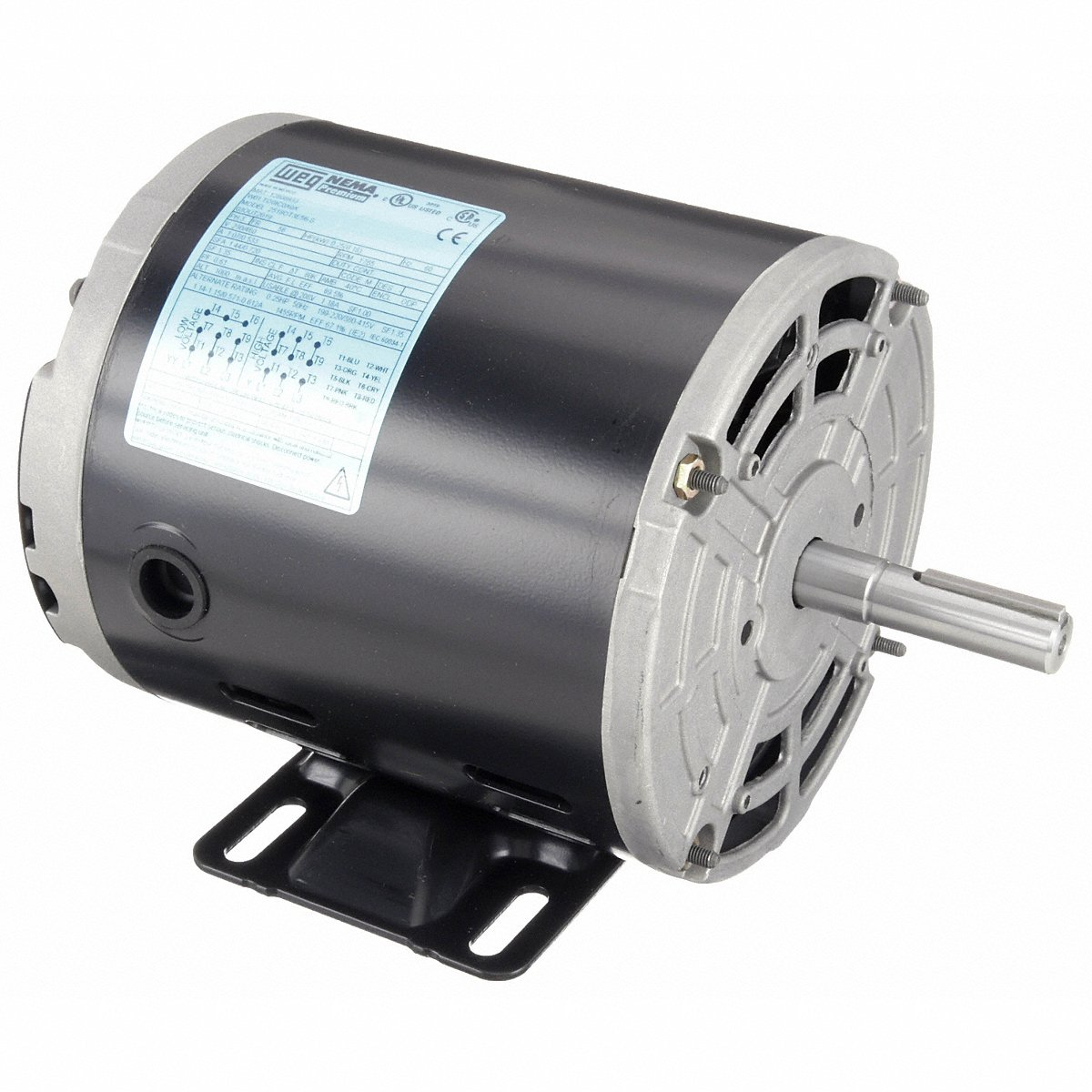

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break-down Torque | 330% |
| Cc Number | CC029A |
| Cold Locked Rotor Time | 68 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 61% |
| Efficiency At 50 % | 41% |
| Efficiency At 75 % | 52% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Flange Type | Without |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.18-17/0.533A |
| Full Load Amps @ 50hz | 1.10/0.585/1.14/0.571A |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 38 sec. |
| Hp | 1/4 hp |
| Hp @ 50hz | 1/4 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| Includes | Conduit Box |
| Ins. Class | Class F |
| Inverter Rated | Yes |
| L. R. Amps | 6.96-6.29/3.14A |
| Length Less Shaft | 8 1/16" |
| Locked Rotor Torque | 229% |
| Lrc | 5.9X(Code M) |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 40°C |
| Moment Of Inertia | 0.0389 lbs.-sq. ft. |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Speed | 1765 RPM |
| Mounting | F-1 , Foot Mounted |
| Nameplate Rpm | 1765 RPM |
| No Load Amps | 0.862-1/0.5A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Noise Level | 52 dBA |
| Nominal Efficiency | 69.5% |
|---|---|
| Output | 1/4 hp |
| Output Rating | 1/4 hp |
| Overall Length | 9 15/16" |
| Overload Protector | Without Overload Protector |
| Phase | 3 |
| Power Factor At 1 % | 69.5 |
| Power Factor At 50 % | 57.5 |
| Power Factor At 75 % | 64 |
| Rated Current | 1.18-1.07/0.533A |
| Rated Torque | 0.744 lbs.-ft. |
| Rated Voltage | 208-230/460V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.94% |
| Standards | Csa, Ul |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 190-220/208-230/380-415/460V , 208-230/460V AC |
| Weight | 15.8 lbs. |
| Altitude | 1000 m.a.s.l. |
| Balancing Method | 1/2 Key |
| Cold Locked Rotor Time | 68s |
| De Bearing Seal | No |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC01 |
| Frequency | 50 Hz |
| Grounding Lugs Type | Single |
| Insulation Class | F |
| l. r. amps | 3.12A |
| locked rotor time (hot) | 38s |
| Locked Rotor Torque | 210% |
| Lrc | 5.1x(Code K) |
| Motor Thermal Protection | None |
| Nde Bearing Seal | No |
| no load amps | 0.548A |
| Noise Level | 49 dBA |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| rated amps | 0.612A |
| Rated Speed | 1465 RPM |
| Rated Torque | 0.896 lbs.-ft. |
| Rated Voltage | 415V |
| Rotation | CW And CCW |
| Service Factor | 1.35 (1 @ 208V) |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.33% |
| Standard Logo | nema.png |
| Height (cm) | 77.98 |
|---|---|
| Length (cm) | 25.24 |
| Width (cm) | 85.09 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 8.37 |
