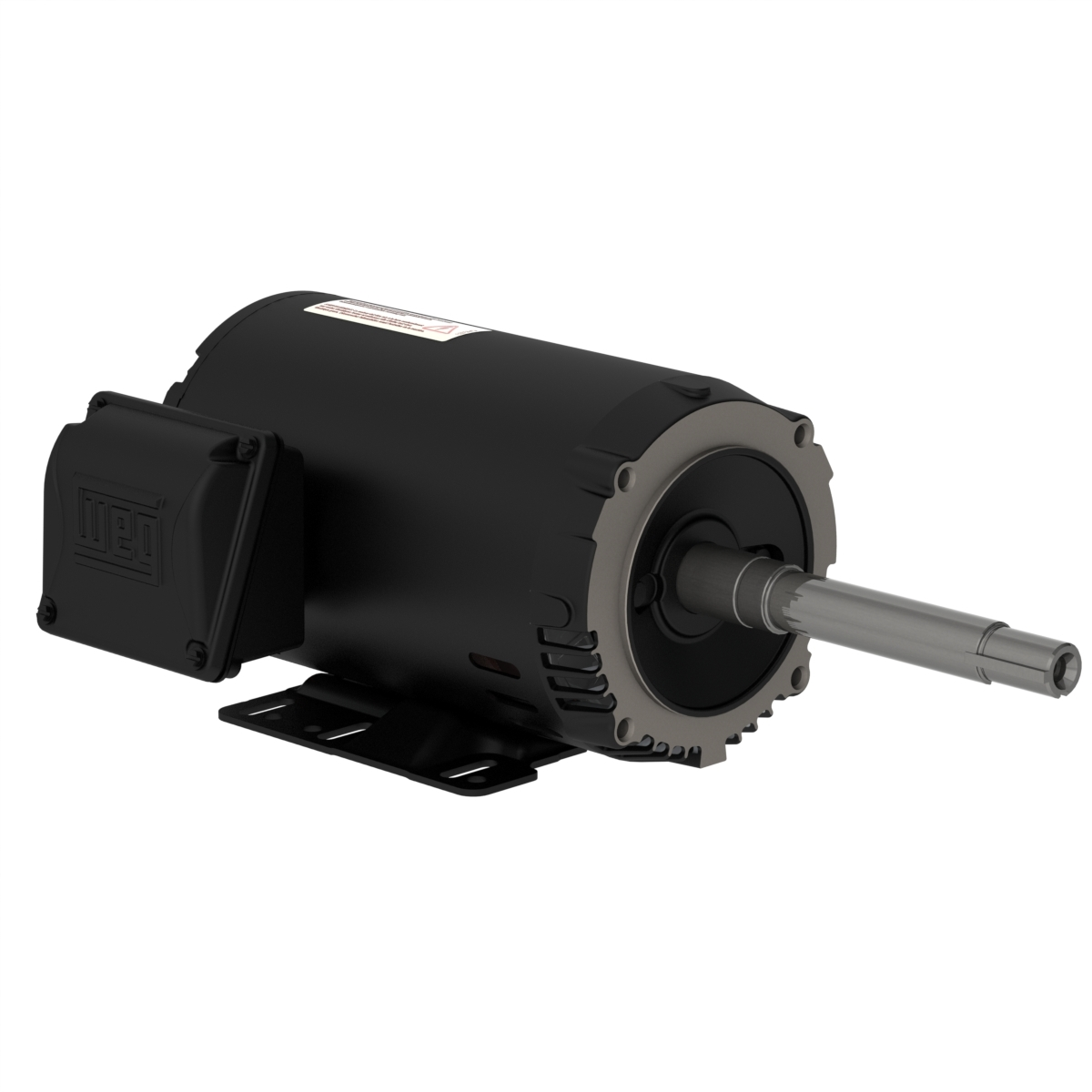

| Item | Close-Coupled Pump Motor |
|---|---|
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Application | Closed Coupled |
| Bearing Cap | Yes |
| Body Design | Rolled Steel |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 330% |
| Cable Press Material | Sem |
| Composition | Steel |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 2:1 |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 85.5% |
| Efficiency @ 100% | 85.5% |
| Efficiency @ 50% | 84% |
| Efficiency @ 75% | 85.5% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 145JP |
| Frame Material | Rolled Steel |
| Frame Size | 143/5JP |
| Grounding Lugs | Single |
| Hp | 2 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| Inverter Rating | Inverter Ready |
| L.r. Amperes | 24.8/49.5A |
| Locked Rotor Time (cold) | 25 sec. |
| Locked Rotor Time (hot) | 14 sec. |
| Locked Rotor Torque | 220% |
| Main Terminal Box Hole | 1.118" |
| Moment Of Inertia (j) | 0.1151 lbs.-sq. ft. |
|---|---|
| Mounting | F-1 |
| Mounting Arrangement | F1 |
| Nema Frame | NEMA 143-5JP |
| Nema Mount | C Face With Base |
| No Load Amps | 1.05/2.11A |
| Noise Level | 62 dBA |
| Number Of Poles | 2 |
| Output Hp | 2 hp |
| Output Kw | 1.5 kW |
| Output Rating | 2 hp |
| Output Rpm | 3510 RPM |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 50% | 0.77 |
| Power Factor 75% | 0.86 |
| Power Factor_100% | 0.91 |
| Rated Current | 2.78/5.57A |
| Rated Speed | 3510 RPM |
| Rated Torque | 2.99 lbs.-ft. |
| Rated Voltage | 200/400V |
| Replaces | 00236OP3V145JP-S |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Slip | 2.5% |
| Space Heater | None |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Voltage | 200/400V AC |
| Height (cm) | 32.26 |
|---|---|
| Length (cm) | 52.83 |
| Width (cm) | 37.08 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 21.15 |
