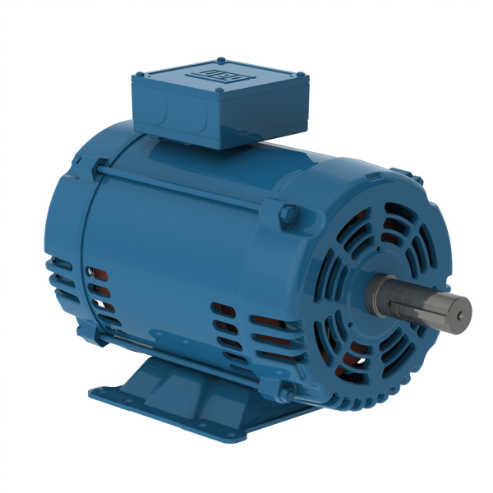

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Break-down Torque | 290% |
| Cold Locked Rotor Time | 21 sec. |
| Connection Cables Quantity | 6 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 81% |
| Efficiency At 50 % | 63% |
| Efficiency At 75 % | 75% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Feet | Yes |
| Flange Type | Without |
| Frame | 184T |
| Frame Material | Rolled Steel |
| Frame Size | 184T |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Horsepower | 5 hp |
| Hot Locked Rotor Time | 12 sec. |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 108A |
| Locked Rotor Torque | 210% |
| Lrc | 7.3X(Code J) |
| Main Terminal Box Hole Size | 3/4" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 0.3495 lbs.-sq. ft. |
|---|---|
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1755 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 6.9A |
| No. Of Poles | 4 |
| Noise Level | 55 dBA |
| Output | 5 hp |
| Output Rating | 5 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 89.5 |
| Power Factor At 50 % | 88.5 |
| Power Factor At 75 % | 89.5 |
| Rated Current | 14.7A |
| Rated Torque | 15 lbs.-ft. |
| Rated Voltage | 200V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 105 K |
| Terminal Block | Without |
| Terminal Box | Top |
| Tropicalized Painting | Without |
| Voltage | 200V |
| Height (cm) | 24.38 |
|---|---|
| Length (cm) | 39.88 |
| Width (cm) | 30.99 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 32.4 |
