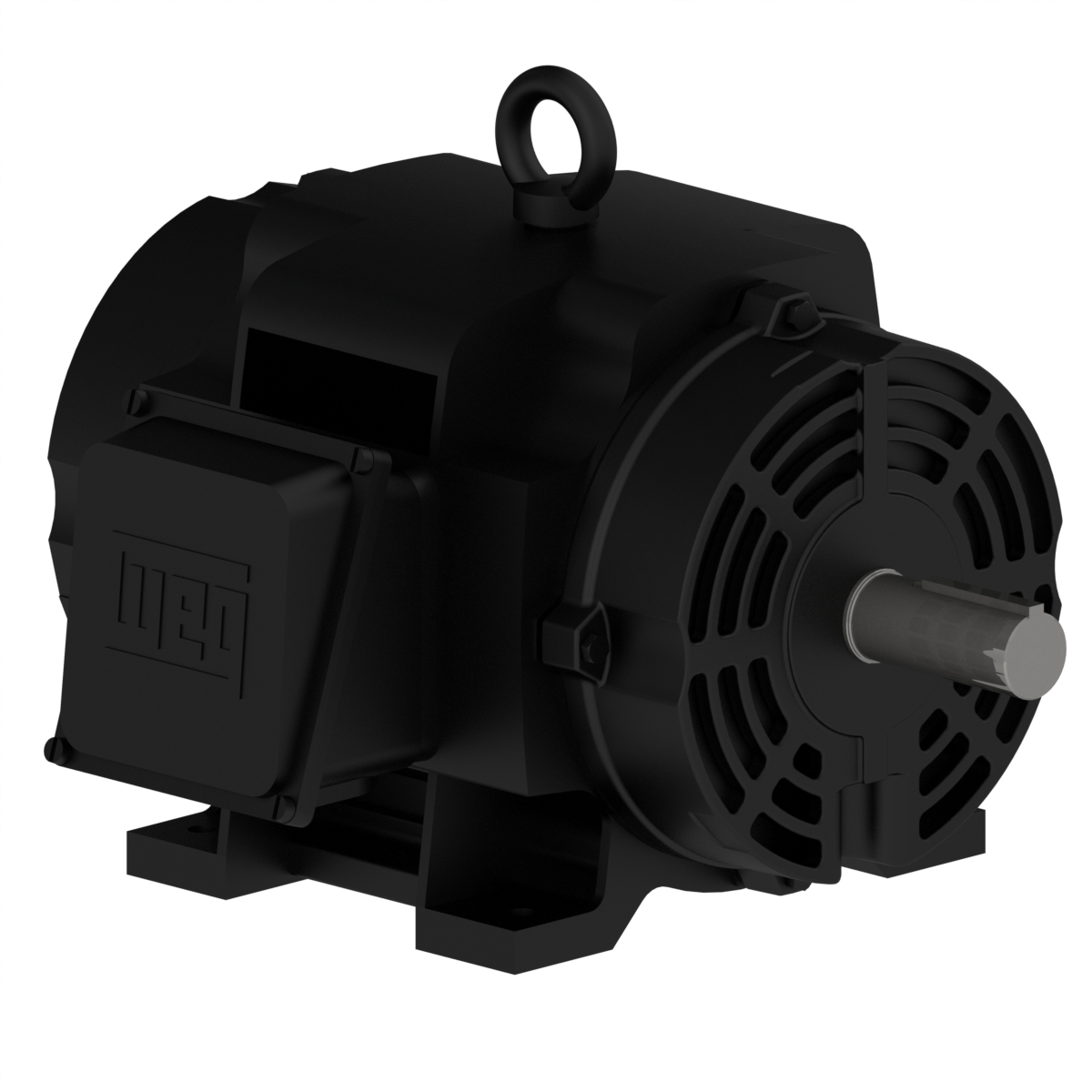

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | No |
| Break-down Torque | 250% |
| Breakdown Torque | 250% |
| Cold Locked Rotor Time | 21 sec. |
| Connection Cables Quantity | 12 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 91% |
| Efficiency @ 50% | 89.5% |
| Efficiency @ 75% | 90.2% |
| Efficiency At 1 % | 84% |
| Efficiency At 50 % | 71% |
| Efficiency At 75 % | 80% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Flange Type | Without |
| Frame | 254T |
| Frame Material | Cast Iron |
| Frame Size | 254T |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 12 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 276/138A |
| L.r. Amperes | 138/276A |
| Locked Rotor Time (cold) | 21 sec. |
| Locked Rotor Time (hot) | 12 sec. |
| Locked Rotor Torque | 160% |
| Lrc | 5.6X(Code F) |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Hole Size | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 0.7328 lbs.-sq. ft. |
|---|---|
| Moment Of Inertia (j) | 0.7328 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 3520 RPM |
| Mounting | F-2 , Foot Mounted |
| No Load Amps | 18.2/9.1A , 9.1/18.2A |
| No. Of Poles | 2 |
| Noise Level | 66 dBA |
| Output | 20 hp |
| Output Rating | 20 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.71 |
| Power Factor 75% | 0.8 |
| Power Factor At 1 % | 91 |
| Power Factor At 50 % | 89.5 |
| Power Factor At 75 % | 90.2 |
| Power Factor_100% | 0.84 |
| Rated Current | 24.6/49.2A , 49.2/24.6A |
| Rated Speed | 3520 RPM |
| Rated Torque | 29.8 lbs.-ft. |
| Rated Voltage | 230/460V , 230/460V AC |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.22% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Right Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V AC |
| Height (cm) | 24.38 |
|---|---|
| Length (cm) | 39.88 |
| Width (cm) | 30.99 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 116.55 |
