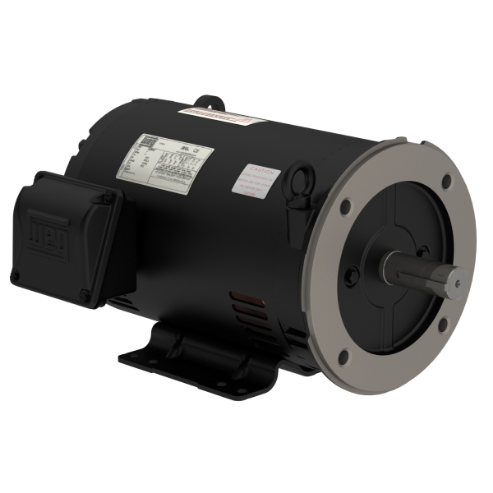

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 330% |
| Breakdown Torque | 330% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 27 sec. |
| Composition | Steel |
| Connection Cables Quantity | 12 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 89.5% |
| Efficiency @ 50% | 87.5% |
| Efficiency @ 75% | 88.5% |
| Efficiency At 1 % | 80% |
| Efficiency At 50 % | 60% |
| Efficiency At 75 % | 73% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 182/4TC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 15 sec. |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 74.6/37.3A |
| L.r. Amperes | 37.3/74.6A |
| Locked Rotor Time (cold) | 27 sec. |
| Locked Rotor Time (hot) | 15 sec. |
| Locked Rotor Torque | 220% |
| Lrc | 8.4X(Code K) |
| Main Terminal Box Hole | 1.118" |
|---|---|
| Main Terminal Box Hole Size | 1.118" |
| Moment Of Inertia | 0.3092 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.3092 lbs.-sq. ft. |
| Motor Speed | 1765 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 2.38/4.76A , 4.76/2.38A |
| No. Of Poles | 4 |
| Noise Level | 55 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.6 |
| Power Factor 75% | 0.73 |
| Power Factor At 1 % | 89.5 |
| Power Factor At 50 % | 87.5 |
| Power Factor At 75 % | 88.5 |
| Power Factor_100% | 0.8 |
| Rated Current | 4.44/8.88A |
| Rated Speed | 1765 RPM |
| Rated Torque | 8.93 lbs.-ft. |
| Rated Voltage | 200/400V , 200/400V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.94% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 200/400V AC |
| Height (cm) | 24.38 |
|---|---|
| Length (cm) | 39.88 |
| Width (cm) | 30.99 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 32.85 |
