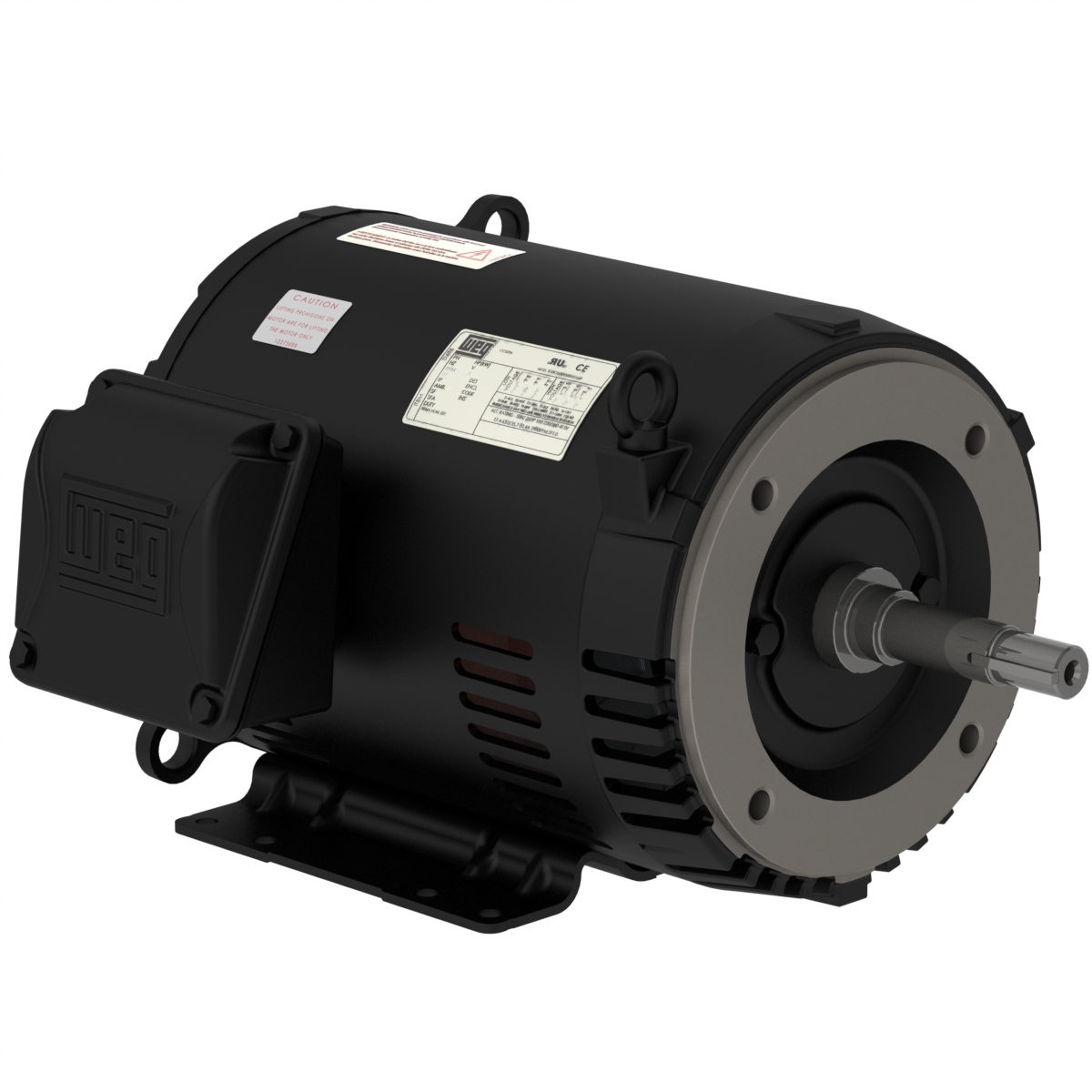

| Item | Close-Coupled Pump Motor |
|---|---|
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Application | Closed Coupled |
| Bearing Cap | Yes |
| Body Design | Rolled Steel |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 300% |
| Cable Press Material | Sem |
| Composition | Steel |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 5:1 |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 93% |
| Efficiency @ 100% | 93% |
| Efficiency @ 50% | 91.7% |
| Efficiency @ 75% | 92.4% |
| Enclosure | IC01 |
| Enclosure Iec | IP66 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 254JM |
| Frame Material | Rolled Steel |
| Frame Size | 254/6JM |
| Frequency | 50/60 Hz |
| Grounding Lugs | Superior |
| Hp | 15 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| Inverter Rating | Inverter Ready |
| L.r. Amperes | 143/287A |
| Locked Rotor Time (cold) | 30 sec. |
| Locked Rotor Time (hot) | 17 sec. |
| Locked Rotor Torque | 240% |
| Main Terminal Box Hole | 1.732" |
| Moment Of Inertia (j) | 1.82 lbs.-sq. ft. |
| Mounting | F-1 |
| Mounting Arrangement | F1 |
| Nema Frame | NEMA 56C |
| Nema Mount | C Face With Base |
| No Load Amps | 10.9/21.9A |
| Noise Level | 64 dBA |
| Number Of Poles | 4 |
| Output Hp | 15 hp |
|---|---|
| Output Kw | 11 kW |
| Output Rating | 15 hp |
| Output Rpm | 1150/950 RPM |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 50% | 0.62 |
| Power Factor 75% | 0.73 |
| Power Factor_100% | 0.8 |
| Rated Current | 21.4/42.8A |
| Rated Speed | 1775 RPM |
| Rated Torque | 44.4 lbs.-ft. |
| Rated Voltage | 200/400V |
| Regreasing System | At Drive End And Non-Drive End |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Slip | 1.39% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Voltage | 200/400V AC |
| Balancing Method | 1/2 Key |
| Cold Locked Rotor Time | 30s |
| De Bearing Seal | No |
| Design | B |
| Enclosure Rating | IC01 |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Superior |
| l. r. amps | 287/143A |
| locked rotor time (hot) | 17s |
| Lrc | 6.7x(Code H) |
| Main Terminal Box Hole Size | 1.732" |
| Material | Carbon Steel |
| Nde Bearing Seal | No |
| No. Of Poles | 4 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Standard Logo | sae.png |
| Tropicalized Painting | Without |
| Voltage | 200/400V |
| Height (cm) | 32.26 |
|---|---|
| Length (cm) | 52.83 |
| Width (cm) | 37.08 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 101.25 |
