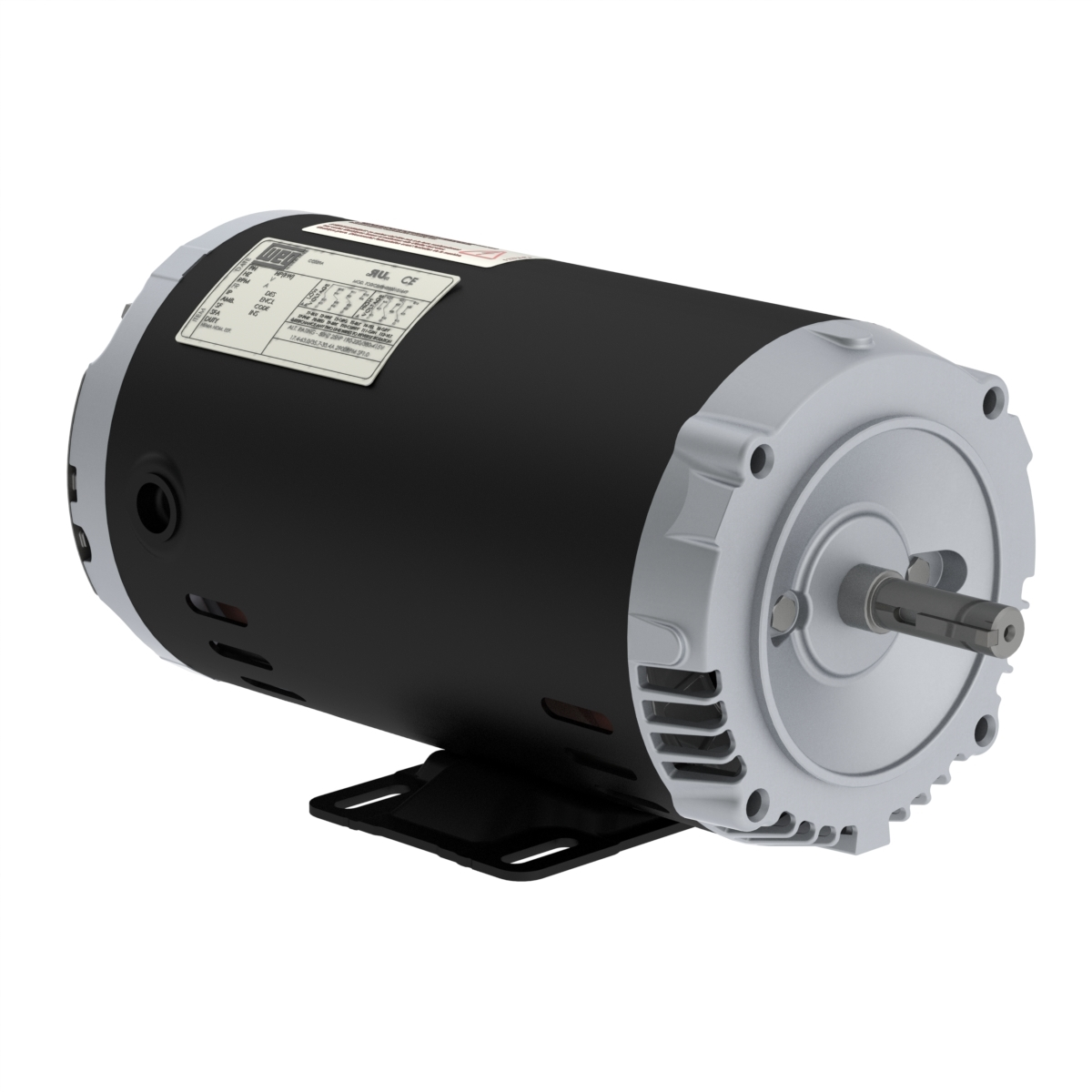

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 280% |
| Cold Locked Rotor Time | 72 sec. |
| Composition | Steel |
| Connection Cables Quantity | 9 |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 61% |
| Efficiency At 50 % | 41% |
| Efficiency At 75 % | 52% |
| Enclosure | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Flange Type | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frame Size | 56C |
| Frequency | 50/60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 40 sec. |
| Hp | 1/4 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 5.83-5.27/2.64A |
| Locked Rotor Torque | 210% |
| Lrc | 4.8X(Code K) |
| Moment Of Inertia | 0.0622 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
| Motor Speed | 1160 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 0.862-1/0.5A |
| No. Of Poles | 6 |
| Noise Level | 50 dBA |
| Output | 1/4 hp |
| Output Rating | 1/4 hp |
| Overload Protector | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor At 1 % | 67.5 |
| Power Factor At 50 % | 55 |
|---|---|
| Power Factor At 75 % | 64 |
| Rated Current | 1.21-1.1/0.549A |
| Rated Torque | 1.13 lbs.-ft. |
| Rated Voltage | 208-230/460V AC |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.35 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 3.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 190-220/208-230/380-415/460V , 208-230/460/190-220/380-415V AC |
| Altitude | 1000 m.a.s.l. |
| Balancing Method | 1/2 Key |
| break-down torque | 270% |
| Cold Locked Rotor Time | 66s |
| De Bearing Seal | No |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC01 |
| Frequency | 50 Hz |
| Grounding Lugs Type | Single |
| Insulation Class | F |
| l. r. amps | 2.63A |
| locked rotor time (hot) | 37s |
| Locked Rotor Torque | 200% |
| Lrc | 4.3x(Code J) |
| Nde Bearing Seal | No |
| no load amps | 0.542A |
| Noise Level | 48 dBA |
| Overload Protector (phenolic) | Without Overload Protector |
| rated amps | 0.611A |
| Rated Speed | 960 RPM |
| Rated Torque | 1.37 lbs.-ft. |
| Rated Voltage | 415V |
| Rotation | CW And CCW |
| Service Factor | 1.35 (1 @ 208V) |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 4% |
| Standard Logo | nema.png |
| Height (cm) | 24.38 |
|---|---|
| Length (cm) | 39.88 |
| Width (cm) | 30.99 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 9.45 |
