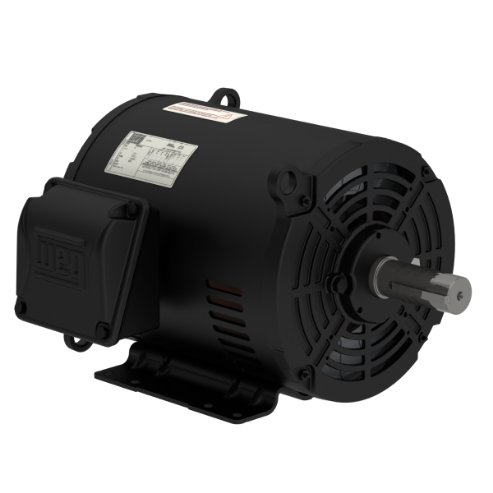

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 229% |
| Cold Locked Rotor Time | 61 sec. |
| Composition | Steel |
| Connection Cables Quantity | 6 |
| Design | B |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 74% |
| Efficiency At 50 % | 56% |
| Efficiency At 75 % | 68% |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 254/6T |
| Frame Material | Rolled Steel |
| Frame Size | 256T |
| Frequency | 60 Hz |
| Grounding Lugs | Superior |
| Hot Locked Rotor Time | 34 sec. |
| Hp | 10 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 58.9A |
| Locked Rotor Torque | 210% |
| Lrc | 5.3X(Code G) |
| Main Terminal Box Hole Size | 1.732" |
| Moment Of Inertia | 2.5 lbs.-sq. ft. |
| Motor Enclosure Design | Open Dripproof |
|---|---|
| Motor Speed | 1180 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 5.86A |
| No. Of Poles | 6 |
| Noise Level | 59 dBA |
| Output | 10 hp |
| Output Rating | 10 hp |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 91.7 |
| Power Factor At 50 % | 91 |
| Power Factor At 75 % | 91.7 |
| Rated Current | 11.1A |
| Rated Torque | 44.5 lbs.-ft. |
| Rated Voltage | 575V AC |
| Regreasing System | At Drive End And Non Drive End |
| Resilient Base | Without |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 575V |
| Height (cm) | 24.38 |
|---|---|
| Length (cm) | 39.88 |
| Width (cm) | 30.99 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 114.3 |
