INGERSOLL-RAND TS5 Bare Air Compressor Pump 2 Stage

Air compressor pumpsare used to compress air for air-powered applications, such as gas cylinder filling, operating pneumatic HVAC systems or tools and filling tires. They are ideal for use in the automotive, medical, food & beverage, petroleum and pharmaceutical industries.
Ingersoll Rand, a market leader in air, fluid, energy, speciality vehicle and medical technologies, manufactures air compressor pumps to supply pressurised air to cylinders in heavy-duty industrial applications. These air compressor pumpshave cast iron construction for continuous operation, structural strength and durability. They are equipped with an overhung crankshaft that is accurately balanced for running smoothly without noise.
Ingersoll Rand TS5 Bare air compressor pump fits onto a vertical air cylinder and is connected to a 5hp motor for continuous electric driven compressing. Ingersoll Rand TS5 compressor pump has 2 stage removable cylinders having 360-degree radial fins with copper finned intercoolers for reducing internal heating & increasing efficiency. Ingersoll Rand TS5 reciprocating pump's cylinders are attached to a one-piece connecting rod & the crankshaft with few wearing parts for ease of maintenance & service. Ingersoll Rand TS5 pump's internal gears & bearings are lubricated using splash lubrication to eliminate the requirement for an oil pump, making this compressor pump inexpensive compared to air compressors lubricated using an oil pump. Ingersoll Rand TS5 pump also has an oil fill port for keeping enough oil for lubrication at all times. Ingersoll Rand TS5 compressor pump supplies compressed air through an NPT outlet having a stainless steel finger valve for increased volumetric efficiency & corrosion resistance.
Choose from a wide range of these Ingersoll Rand air compressor pumps, available in power ratings ranging from 3 to 15hp.

Ingersoll Rand TS5 compressor pump offers a reliable compressed air supply in various commercial & industrial applications like automotive service, body shops, machine shops, production & manufacturing lines, woodworking shops, car washes, general maintenance & repair shops and agricultural farms.

• First, Install the compressor pump securely and make electrical & piping connections.
• After the motor starts up, the flywheel starts rotating to provide a stable supply of power to twin stage cylinders.
• The 2 stage cylinder crankshafts start moving up & down like in an engine for intaking air through the air intake filters and pressurising air in stages.
• Users can control the valves for sending the pressurised gas to air cylinders for further applications.
• The unit can be fitted with an automatic start & stop control (pressure switch) for automatically stopping the compressor once the receiver tank pressure reaches a preset pressure. When the receiver tank pressure goes below a fixed minimum level, the pressure switch restarts the compressor pump again.

• Ingersoll Rand TS5 compressor pump is powered using a 5hp motor that provides pressurised air for direct or indirect usage through an air cylinder.
• Ingersoll Rand TS5 pump uses a precision-balanced flywheel that rotates counterclockwise to smoothen velocity fluctuations of the overhung crankshaft and ensure quiet operation.
• It has an inlet air filter for preventing contaminants from entering inside Ingersoll Rand TS5 pump unit.
• Ingersoll Rand TS5 pump has cast iron construction with stainless steel finger valve for corrosion resistance, durability and preventing bending / breaking due to harsh usage.
• This Ingersoll Rand TS5 reciprocating pump has 2 stage cylinders for delivering 16.5 cfm air at a maximum air pressure of 175 psi.
• Its 2 stage cylinders have finned style intercoolers between them for reducing operating temperatures, improving efficiency and extending pump life.
• Ingersoll Rand TS5 pump is equipped with an oil fill port and an oil level sight glass for periodic refilling of lubricating oil.
• Ingersoll Rand TS5 compressor pump's internal components are lubricated using splash lubrication technique. Splash lubrication is the splashing of the lubricant upwards to the cylinders by scooping oil from the oil sump using the big ends of the connecting rods for creating oil mist or droplets on them. These oil droplets pass through the bearings and lubricate the moving parts.
• Ingersoll Rand TS5 compressor pump has a 0.5-inch NPT outlet for delivering pressurised air.

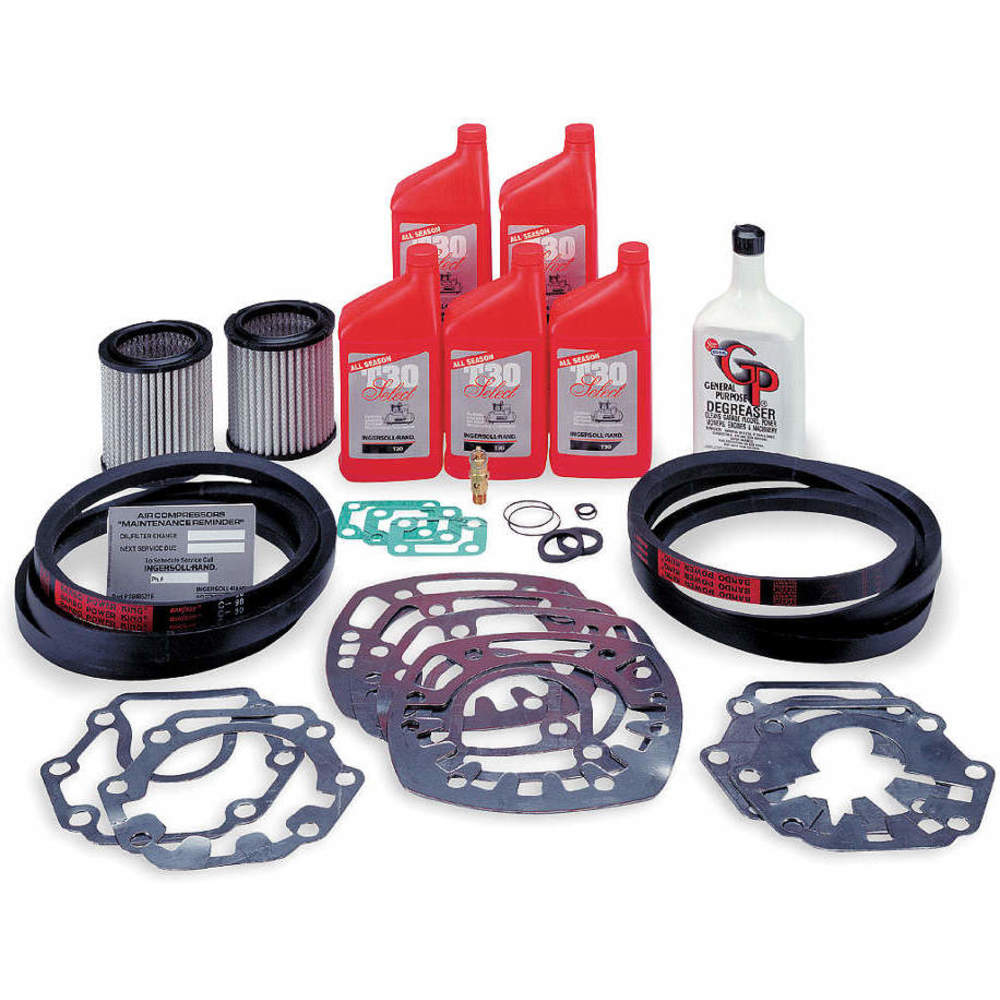

• Maintenance kits: Raptor Supplies can offer Ingersoll Rand TS5 startup & maintenance kits with all the parts & protection tools necessary for two years of operation. Ingersoll Rand TS5 maintenance kits provide factory recommended annual maintenance and ensure optimal compressor performance.

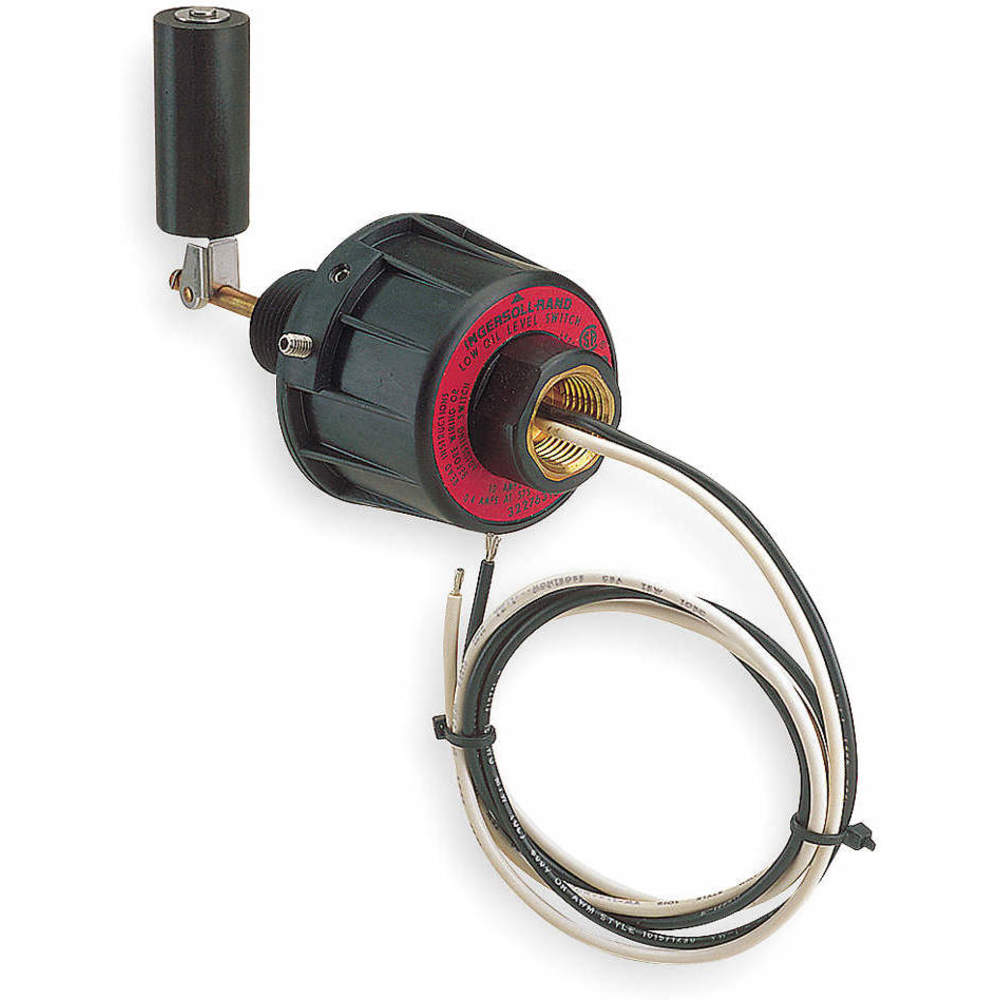

• Low Oil Guard: Ingersoll Rand TS5 air compressor pump can be fitted with a low oil guard that prevents startup of air compressor if the oil level is below a certain threshold.
• Air Cylinder & Motor: Ingersoll Rand TS5 air compressor pump is powered using a 5hp motor to store pressurised air in an air cylinder.

• Ingersoll Rand TS5 air compressor pump is manufactured in compliance with ISO standards for ensuring environmental health, user safety and efficient performance.

• Ingersoll Rand TS5 air compressor pump unit comes factory assembled. However, the flywheel, valves, selector switch and other parts may need to be adjusted or attached by the user for best performance.
• After mounting the compressor pump securely, it needs to be connected to a motor for power supply and to an air cylinder for storing compressed air.
• Users should note that Ingersoll Rand TS5 air compressor pump is shipped without any fluids or lubricants. They should fill the unit with appropriate oil / lubricant for starting up the compressor pump.
