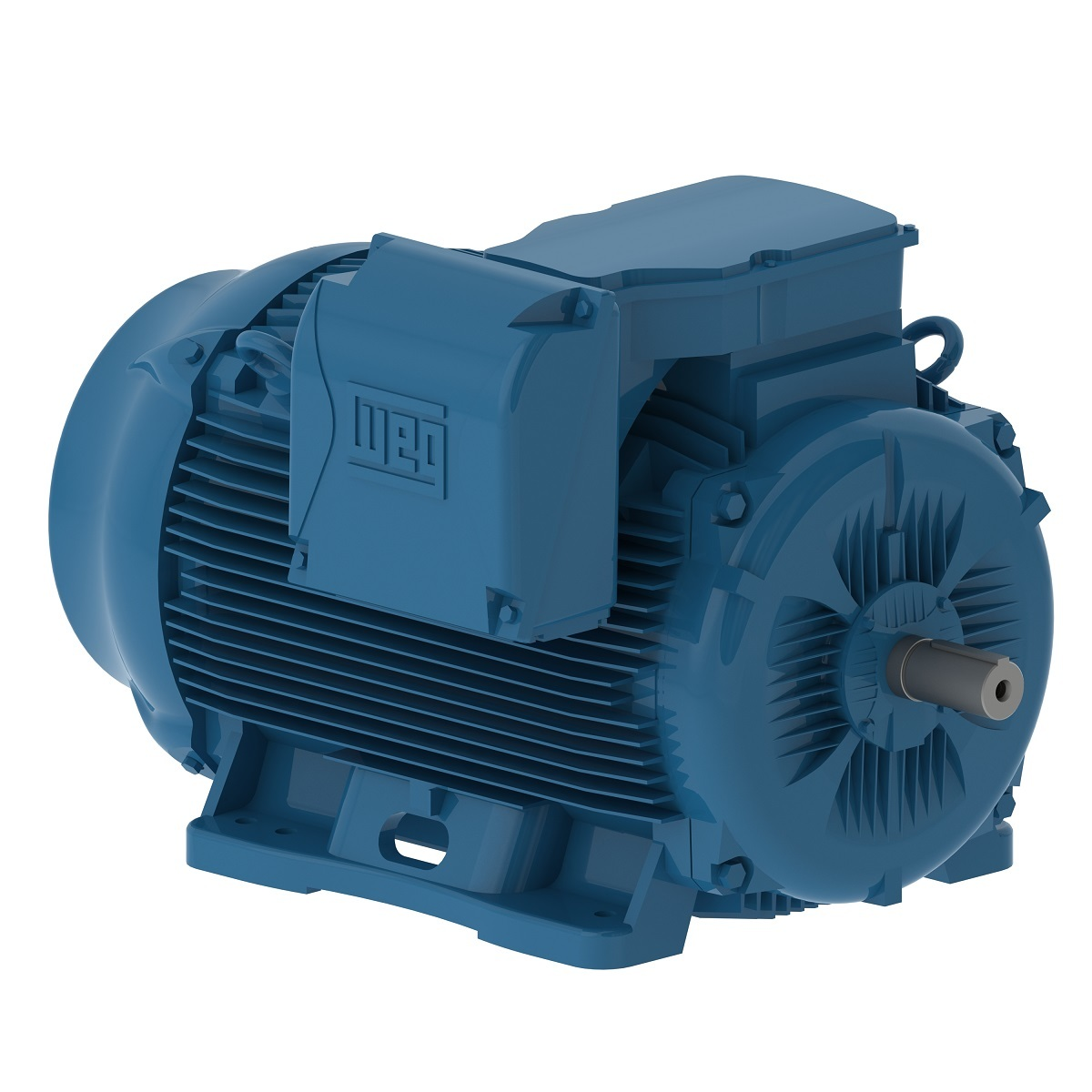

| Item | AC Motor |
|---|---|
| Duty Cycle | S1 |
| Enclosure Type | Tefc |
| Frame Material | Cast Iron |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Noise Level | 73 dBA |
| Number Of Poles | 4 |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Cold Locked Rotor Time | 27s |
| De Bearing Seal | Yes |
|---|---|
| Degree Of Protection | IP55 |
| Design | B |
| Enclosure Rating | IC411 |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Double |
| l. r. amps | 1461A |
| locked rotor time (hot) | 15s |
| Lrc | 6.5x(Code G) |
| Material | Carbon Steel |
| Nde Bearing Seal | Yes |
| No. Of Poles | 4 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Standard Logo | sae.png |
| Tropicalized Painting | Without |
| Voltage | 575V |
