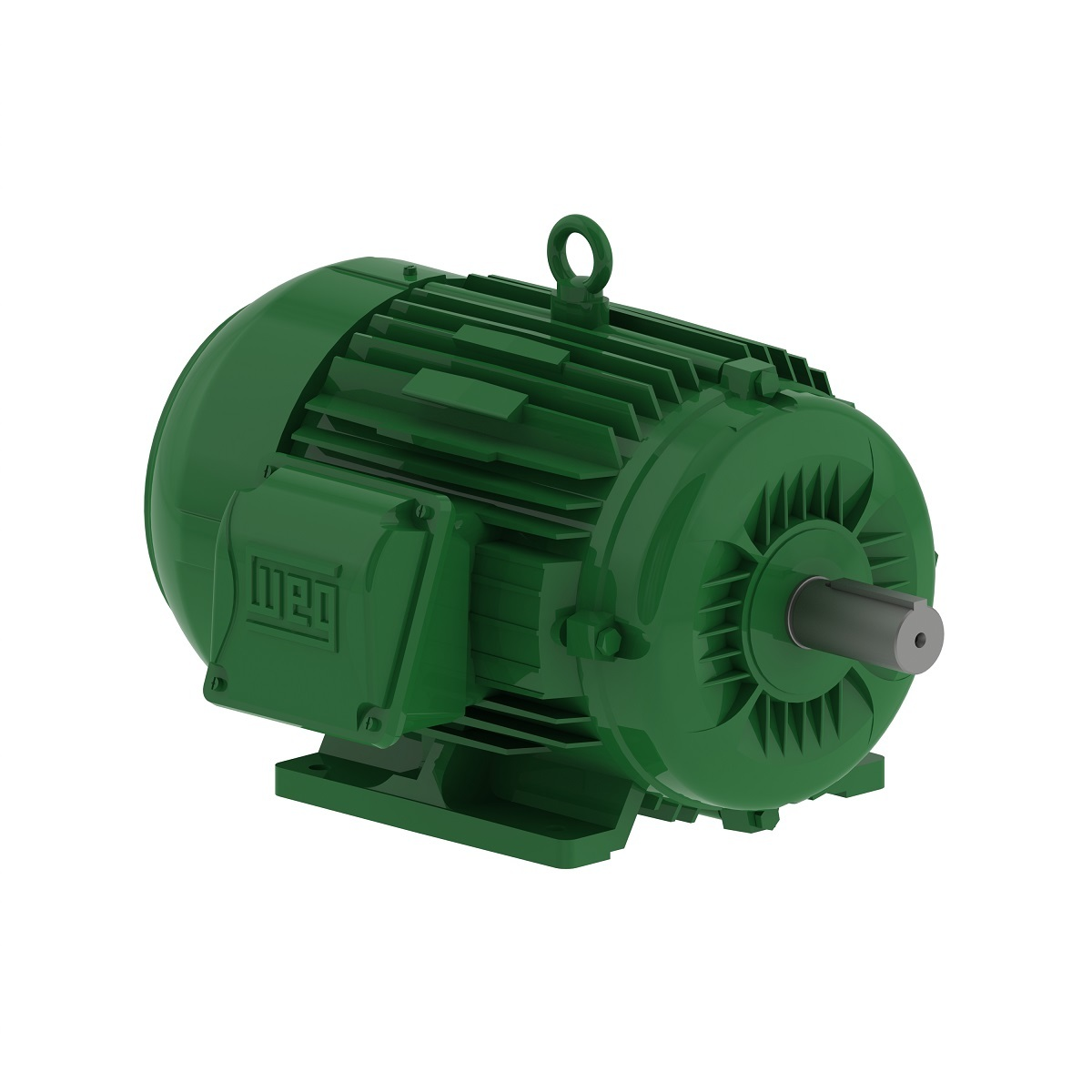

| Item | Electric Motor |
|---|---|
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Break-down Torque | 290% |
| Breakdown Torque | 290% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 162 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 9 |
| Design | A |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 90.2% |
| Efficiency @ 50% | 87.5% |
| Efficiency @ 75% | 89.5% |
| Efficiency At 1 % | 71% |
| Efficiency At 50 % | 51% |
| Efficiency At 75 % | 63% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 213/5T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 90 sec. |
| Hp | 3 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 62.1/31A |
| L.r. Amperes | 31/62.1A |
| Locked Rotor Time (cold) | 162 sec. |
| Locked Rotor Time (hot) | 90 sec. |
| Locked Rotor Torque | 180% |
| Lrc | 7.2X(Code K) |
| Main Terminal Box Hole | 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 1.53 lbs.-sq. ft. |
| Moment Of Inertia (j) | 1.53 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1175 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 2.56/5.13A , 5.13/2.56A |
|---|---|
| No. Of Poles | 6 |
| Noise Level | 55 dBA |
| Output | 3 hp |
| Output Rating | 3 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL6002 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.51 |
| Power Factor 75% | 0.63 |
| Power Factor At 1 % | 90.2 |
| Power Factor At 50 % | 87.5 |
| Power Factor At 75 % | 89.5 |
| Power Factor_100% | 0.71 |
| Rated Current | 4.31/8.62A , 8.62/4.31A |
| Rated Speed | 1175 RPM |
| Rated Torque | 13.4 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Rotation | CW/CCW |
| Rpm | 1100-1200 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.08% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230/380/460V , 208-230/460/380V AC |
| Balancing Method | 1/2 Key |
| Cold Locked Rotor Time | 144s |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Enclosure Rating | IC411 |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| l. r. amps | 35.3A |
| locked rotor time (hot) | 80s |
| Lrc | 7.5x(Code K) |
| Material | Carbon Steel |
| Nde Bearing Seal | V Ring |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Voltage | 415V |
| Standard Logo | sae.png |
| Height (cm) | 25.4 |
|---|---|
| Length (cm) | 50.8 |
| Width (cm) | 25.4 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 82.8 |
