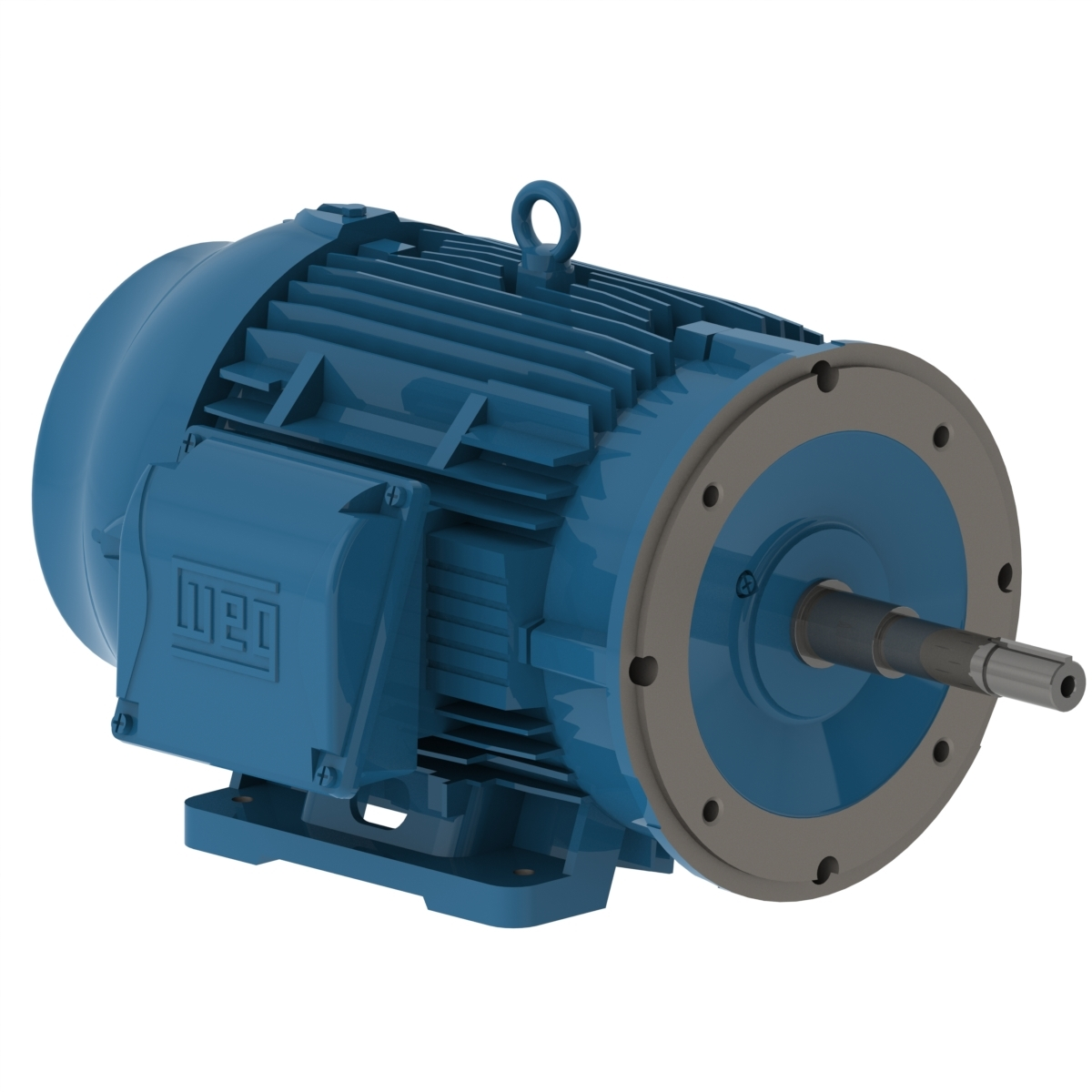

| Item | Close-Coupled Pump Motor |
|---|---|
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | Yes |
| Breakdown Torque | 250% |
| Composition | Cast Iron |
| Connection Cables Quantity | 6 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 92.4% |
| Efficiency @ 50% | 91% |
| Efficiency @ 75% | 91.7% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Plastic |
| Flange | C |
| Frame | 254JP |
| Frame Material | Cast Iron |
| Frame Size | 254/6JP |
| Grounding Lugs | Single |
| Hp | 15 hp |
| Hz | 60 Hz |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L.r. Amperes | 92.2A |
| Locked Rotor Time (cold) | 37 sec. |
| Locked Rotor Time (hot) | 21 sec. |
| Locked Rotor Torque | 229% |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Type | NPT |
|---|---|
| Moment Of Inertia (j) | 2.62 lbs.-sq. ft. |
| Mounting | F-1 |
| No Load Amps | 5.84A |
| Noise Level | 64 dBA |
| Number Of Poles | 4 |
| Output Rating | 15 hp |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 50% | 0.68 |
| Power Factor 75% | 0.78 |
| Power Factor_100% | 0.83 |
| Pump Seal | Gasket |
| Rated Current | 14.4A |
| Rated Speed | 1770 RPM |
| Rated Torque | 44.5 lbs.-ft. |
| Rated Voltage | 575V |
| Regreasing System | At Drive End And Non-Drive End |
| Replaces | 01518EP3H254JP-W22 |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Material | Carbon Steel |
| Slip | 1.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Voltage | 575V AC |
| Height (cm) | 32.26 |
|---|---|
| Length (cm) | 73.93 |
| Width (cm) | 37.08 |
| Country Of Origin | BR |
|---|---|
| Weight (kg) | 150.3 |
