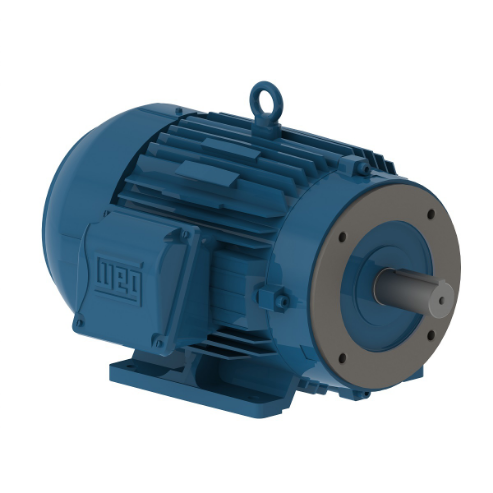

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | Yes |
| Break-down Torque | 310% |
| Cold Locked Rotor Time | 36 sec. |
| Connection Cables Quantity | 12 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Continuous |
| Efficiency At 1 % | 82% |
| Efficiency At 50 % | 66% |
| Efficiency At 75 % | 76% |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange Type | C |
| Frame | 213/5TC |
| Frame Material | Cast Iron |
| Frame Size | 213TC |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 20 sec. |
| Hp | 7 1/2 hp |
| Impregnation Method | Dip And Bake Polyester |
| L. R. Amps | 150/75A |
| Locked Rotor Torque | 220% |
| Lrc | 7.1X(Code H) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 1.34 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1765 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 9.66/4.83A |
| No. Of Poles | 4 |
| Noise Level | 58 dBA |
| Output | 7 1/2 hp |
| Output Rating | 7 1/2 hp |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 207A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor At 1 % | 91.7 |
|---|---|
| Power Factor At 50 % | 89.5 |
| Power Factor At 75 % | 91 |
| Rated Current | 21.1/10.6A |
| Rated Torque | 22.3 lbs.-ft. |
| Rated Voltage | 200/400V AC |
| Rotation | Clockwise/Counter Clockwise |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.94% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 200/400V |
| Altitude | 1000 m.a.s.l. |
| Cold Locked Rotor Time | 36s |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC411 |
| Flange | C |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Insulation Class | F |
| locked rotor time (hot) | 20s |
| Material | Carbon Steel |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | V Ring |
| Output Rating | 5.5 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1765 RPM |
| Rated Voltage | 200/400V |
| Rotation | CW And CCW |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Standard Logo | sae.png |
| Height (cm) | 23.83 |
|---|---|
| Length (cm) | 32.38 |
| Width (cm) | 24.13 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 78.3 |
