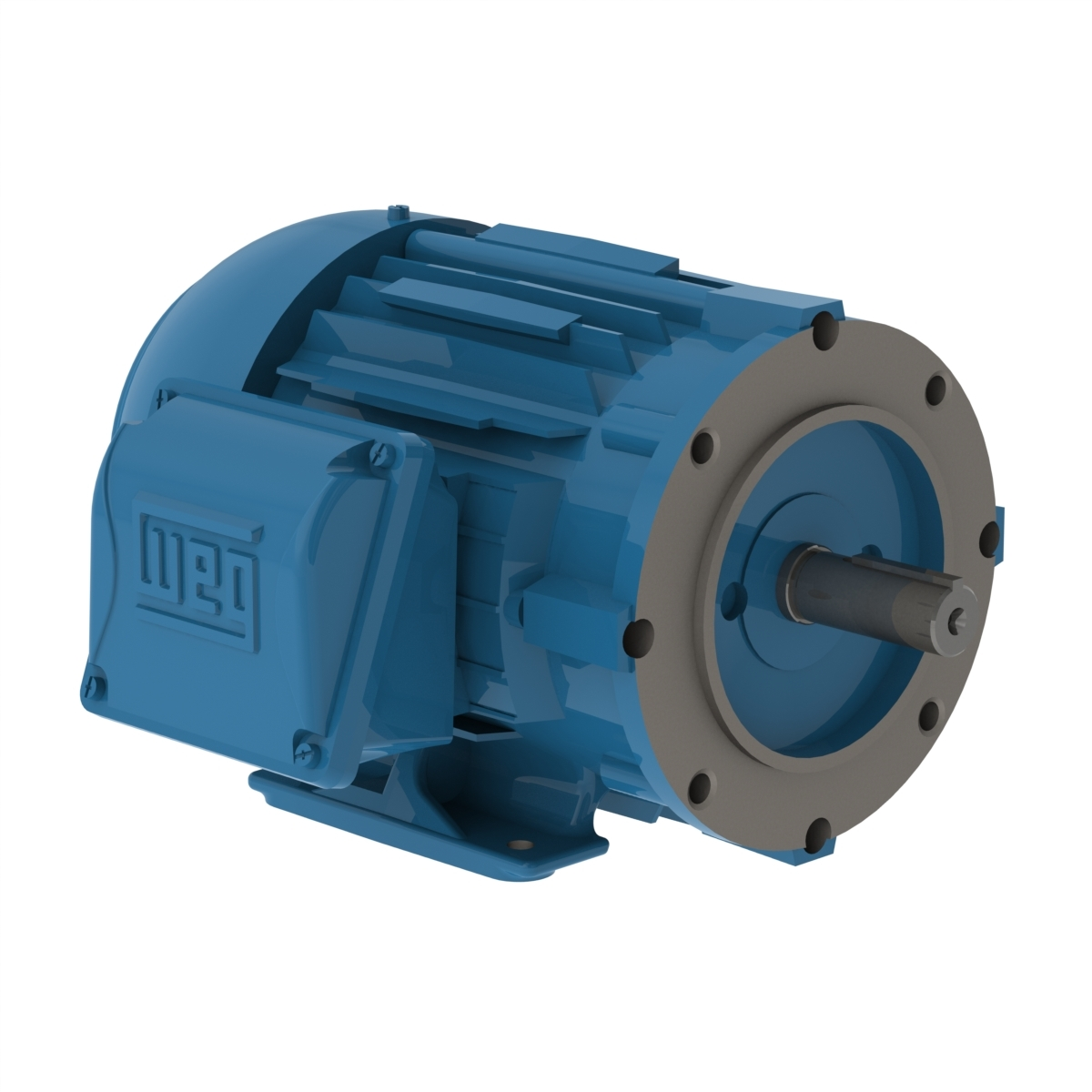

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Bearing Cap | Yes |
| Breakdown Torque | 300% |
| Cable Press Material | Sem |
| Connection Cables Quantity | 9 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 50% |
| Efficiency @ 100% | 82.5% |
| Efficiency @ 50% | 77% |
| Efficiency @ 75% | 82% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Flange Type | C |
| Frame | 143/5TC |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 1.73/3.45-3.82A |
| Grounding Lugs | Single |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| L.r. Amperes | 10.7/21.5A |
| Locked Rotor Time (cold) | 50 sec. |
| Locked Rotor Time (hot) | 28 sec. |
| Locked Rotor Torque | 260% |
| Main Terminal Box Hole | 3/4" |
| Main Terminal Box Type | NPT |
| Moment Of Inertia (j) | 0.1595 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 1.1/2.2A |
| No. Of Poles | 6 |
| Noise | 49 dBA |
| Noise Level | 50 dBA |
| Output Hp | 1 hp |
| Output Rating | 1 hp |
| Overload Protection | No |
| Phase | 3 |
|---|---|
| Power Factor | 75% |
| Power Factor 50% | 0.45 |
| Power Factor 75% | 0.57 |
| Power Factor_100% | 0.66 |
| Rated Current | 1.73/3.46A |
| Rated Speed | 1160 RPM |
| Rotation | CW/CCW |
| Rpm | 1100-1200 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.25 |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Slip | 3.33% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 4.51 lbs.-ft. |
| Voltage | 230/460/380V , 230/460/380V AC |
| Balancing Method | 1/2 Key |
| Cold Locked Rotor Time | 36s |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Enclosure Rating | IC411 |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| l. r. amps | 10.7A |
| locked rotor time (hot) | 20s |
| Lrc | 5.5x(Code J) |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Nde Bearing Seal | V Ring |
| Output Rating | 0.75 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Torque | 5.53 lbs.-ft. |
| Rated Voltage | 415V |
| Standard Logo | sae.png |
| Tropicalized Painting | Without |
| Height (cm) | 48.26 |
|---|---|
| Length (cm) | 33.93 |
| Width (cm) | 45.72 |
| Country Of Origin | BR |
|---|---|
| Weight (kg) | 25.65 |
