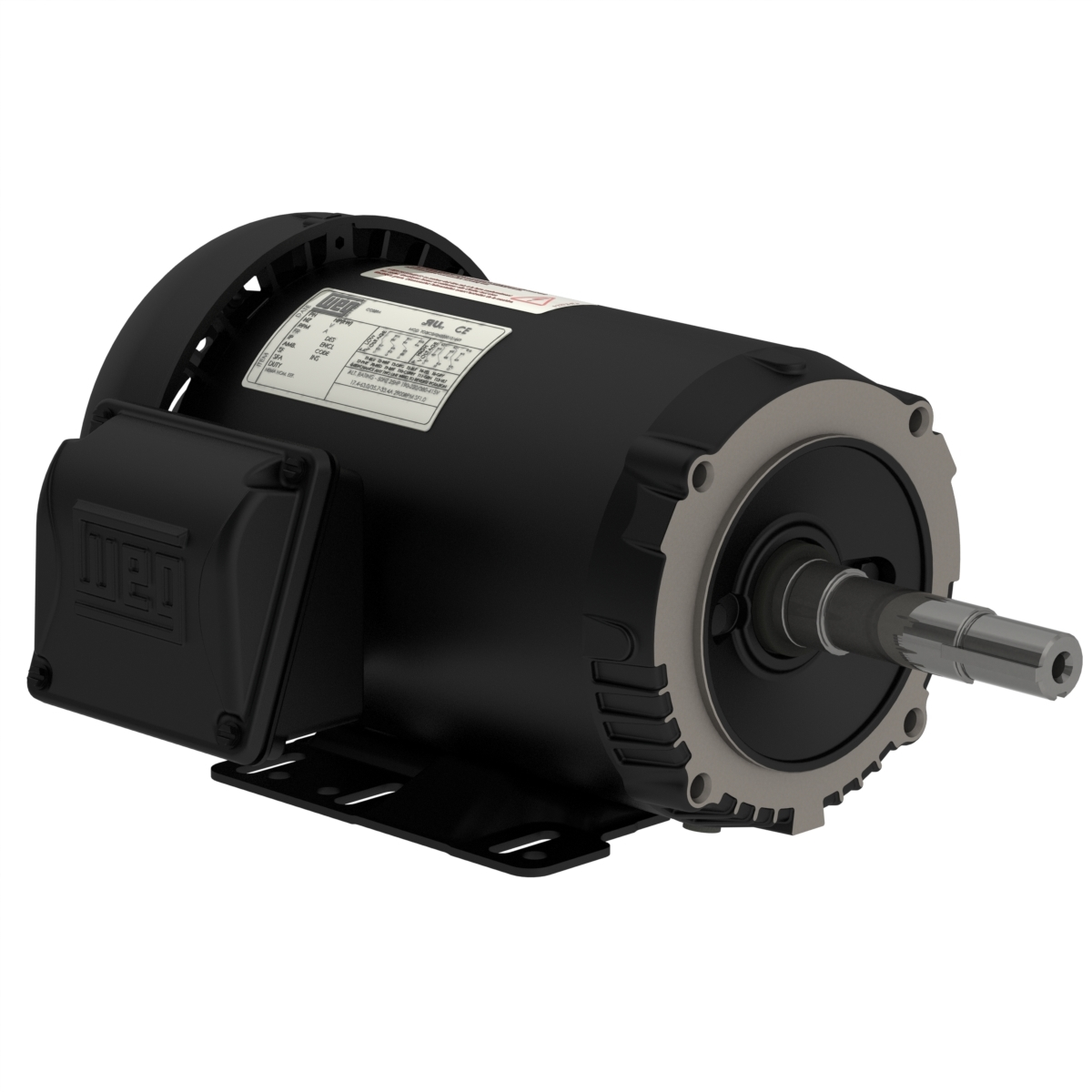

| Item | Close-Coupled Pump Motor |
|---|---|
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Application | Closed Coupled |
| Bearing Cap | Yes |
| Body Design | Rolled Steel |
| Bolt Material | Carbon Steel |
| Breakdown Torque | 300% |
| Cable Press Material | Sem |
| Composition | Steel |
| Connection Cables Quantity | 12 |
| Ct Speed Range | 2:1 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency | 86.5% |
| Efficiency @ 100% | 86.5% |
| Efficiency @ 50% | 85.5% |
| Efficiency @ 75% | 86.5% |
| Enclosure | IC411 |
| Enclosure Iec | IP55 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 145JM |
| Frame Material | Rolled Steel |
| Frame Size | 143/5JM |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hp | 1 1/2 hp |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| Inverter Rating | Inverter Ready |
| L.r. Amperes | 19/38.1A |
| Locked Rotor Time (cold) | 37 sec. |
| Locked Rotor Time (hot) | 21 sec. |
| Locked Rotor Torque | 270% |
| Main Terminal Box Hole | 1.118" |
| Moment Of Inertia (j) | 0.1101 lbs.-sq. ft. |
| Mounting | F-1 |
| Mounting Arrangement | F1 |
| Nema Frame | NEMA 143-5JM |
| Nema Mount | C Face With Base |
| No Load Amps | 1.25/2.49A |
| Noise Level | 52 dBA |
| Number Of Poles | 4 |
| Output Hp | 1 1/2 hp |
|---|---|
| Output Kw | 1.1 kW |
| Output Rating | 1 1/2 hp |
| Output Rpm | 1750 RPM |
| Overload Protection | No |
| Phase | 3 |
| Power Factor 50% | 0.59 |
| Power Factor 75% | 0.72 |
| Power Factor_100% | 0.79 |
| Rated Current | 2.32/4.65A |
| Rated Speed | 1750 RPM |
| Rated Torque | 4.5 lbs.-ft. |
| Rated Voltage | 200/400V |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Slip | 2.78% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp Code | T3 = 200°C |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Voltage | 200/400V AC |
| Balancing Method | 1/2 Key |
| Cold Locked Rotor Time | 37s |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Enclosure Rating | IC411 |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| l. r. amps | 38.1/19A |
| locked rotor time (hot) | 21s |
| Lrc | 8.2x(Code K) |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Nde Bearing Seal | No |
| No. Of Poles | 4 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Standard Logo | sae.png |
| Tropicalized Painting | Without |
| Voltage | 200/400V |
| Height (cm) | 32.26 |
|---|---|
| Length (cm) | 40.9 |
| Width (cm) | 37.08 |
| Country Of Origin | BR |
|---|---|
| Weight (kg) | 21.15 |
