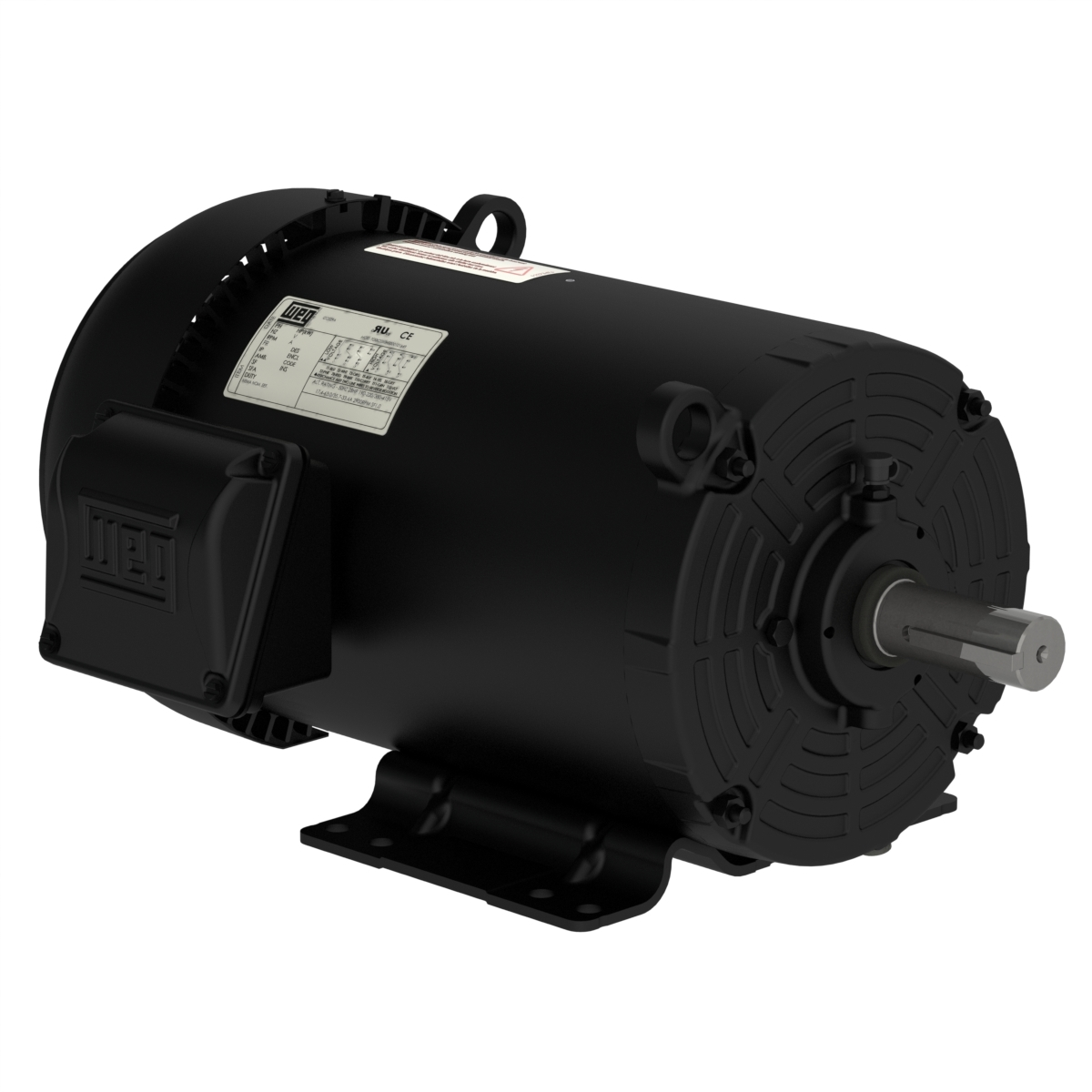

| Item | General Purpose Motor |
|---|---|
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break-down Torque | 370% |
| Breakdown Torque | 370% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 79 sec. |
| Connection Cables Quantity | 9 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 88.5% |
| Efficiency @ 50% | 84% |
| Efficiency @ 75% | 86.5% |
| Efficiency At 1 % | 71% |
| Efficiency At 50 % | 50% |
| Efficiency At 75 % | 62% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Flange Type | Without |
| Frame | 182/4T |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 44 sec. |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 45/22.5A |
| L.r. Amperes | 22.5/45A |
| Locked Rotor Time (cold) | 79 sec. |
| Locked Rotor Time (hot) | 44 sec. |
| Locked Rotor Torque | 260% |
| Lrc | 7.5X(Code K) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
|---|---|
| Moment Of Inertia | 0.3424 lbs.-sq. ft. |
| Moment Of Inertia (j) | 0.3424 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 1170 RPM |
| Mounting | F-1 , Foot Mounted |
| No Load Amps | 1.87/3.74A , 3.74/1.87A |
| No. Of Poles | 6 |
| Noise Level | 52 dBA |
| Output | 2 hp |
| Output Rating | 2 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | Munsell N 1-Matte 207N (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.5 |
| Power Factor 75% | 0.62 |
| Power Factor At 1 % | 88.5 |
| Power Factor At 50 % | 84 |
| Power Factor At 75 % | 86.5 |
| Power Factor_100% | 0.71 |
| Rated Current | 3/6A , 6/3A |
| Rated Speed | 1170 RPM |
| Rated Torque | 8.98 lbs.-ft. |
| Rated Voltage | 230/460V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 1100-1200 RPM |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1200 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC |
| Height (cm) | 77.98 |
|---|---|
| Length (cm) | 115.06 |
| Width (cm) | 85.09 |
| Country Of Origin | BR |
|---|---|
| Weight (kg) | 37.35 |
