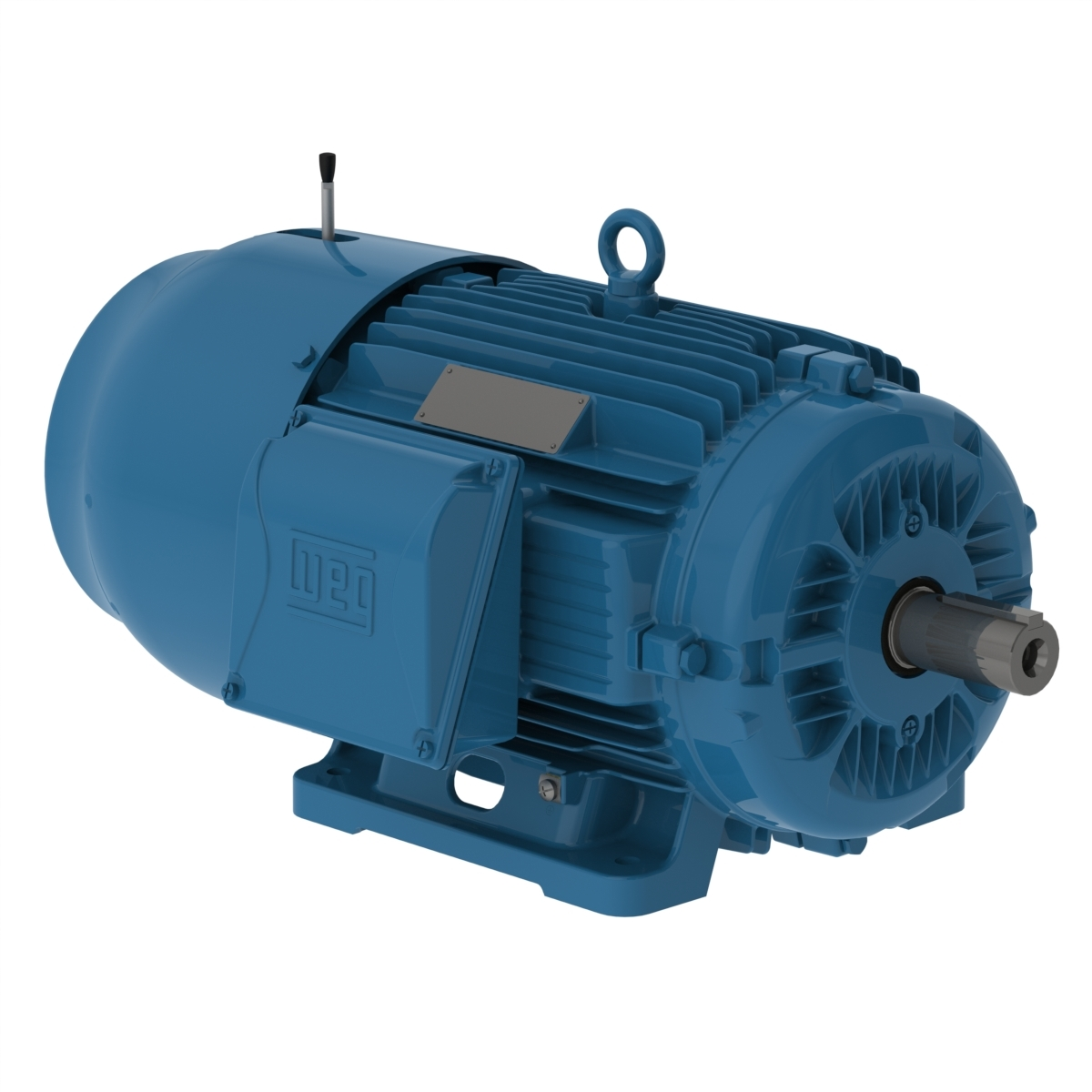

| Item | Electric Motor |
|---|---|
| Altitude | 1000 M.A.S.L. , 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Brake Input Voltage | 220-240V , 220-240V AC |
| Braking Torque | 235 N-m |
| Break-down Torque | 280% |
| Breakdown Torque | 280% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 77 sec. |
| Composition | Cast Iron |
| Connection Cables Quantity | 12 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency @ 100% | 87.5% |
| Efficiency @ 50% | 84.7% |
| Efficiency @ 75% | 87% |
| Efficiency At 1 % | 69% |
| Efficiency At 50 % | 48% |
| Efficiency At 75 % | 61% |
| Enclosure | IC411 |
| Enclosure Type | Tefc |
| Fan Cover Material | Cast Iron |
| Fan Material | Aluminum |
| Flange | Without |
| Flange Type | Without |
| Frame | 254/6T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 43 sec. |
| Hp | 5 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 81.5/40.8A |
| L.r. Amperes | 40.8/81.5A |
| Locked Rotor Time (cold) | 77 sec. |
| Locked Rotor Time (hot) | 43 sec. |
| Locked Rotor Torque | 250% |
| Lrc | 5.3X(Code H) |
| Main Terminal Box Hole | 1 1/2" |
| Main Terminal Box Hole Size | 1 1/2" |
| Main Terminal Box Hole Type | NPT |
| Main Terminal Box Type | NPT |
| Moment Of Inertia | 3.41 lbs.-sq. ft. |
| Moment Of Inertia (j) | 3.41 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Speed | 883 RPM |
| Mounting | F-1 , Foot Mounted |
|---|---|
| No Load Amps | 10.8/5.4A , 5.4/10.8A |
| No. Of Poles | 8 |
| Noise Level | 54 dBA |
| Output | 5 hp |
| Output Rating | 5 hp |
| Overload Protection | No |
| Overload Protector | Without Overload Protector |
| Painting | RAL5009 203A (ISO 12944-C2) |
| Phase | 3 |
| Power Factor 50% | 0.48 |
| Power Factor 75% | 0.61 |
| Power Factor At 1 % | 87.5 |
| Power Factor At 50 % | 84.7 |
| Power Factor At 75 % | 87 |
| Power Factor_100% | 0.69 |
| Rated Current | 15.4/7.69A , 7.69/15.4A |
| Rated Speed | 883 RPM |
| Rated Torque | 29.7 lbs.-ft. |
| Rated Voltage | 230/460V , 230/460V AC |
| Regreasing System | At Drive End And Non Drive End , At Drive End And Non-Drive End |
| Rotation | CW/CCW |
| Rpm | 900 RPM |
| Screw Cap | Carbon Steel |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Slip | 1.89% |
| Starting Method | Direct On Line |
| Synchronous Speed | 900 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230/460V AC |
| Balancing Method | 1/2 Key |
| Brake Type | 235 N-m |
| Cold Locked Rotor Time | 77s |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Enclosure Rating | IC411 |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| locked rotor time (hot) | 43s |
| Material | Carbon Steel |
| Nde Bearing Seal | Lip Seal |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Standard Logo | sae.png |
| Voltage | 230/460V |
| Height (cm) | 25.4 |
|---|---|
| Length (cm) | 50.8 |
| Width (cm) | 25.4 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 161.1 |
