| Item | Needle Valve |
|---|---|
| Body Material | Stainless Steel |
| Bonnet Style | Integral |
| Connection | FNPT |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 1/2" |
| Connection Type | FNPT x FNPT |
| Fitting Style | Straight |
| Flow Coefficient (cv) | 0.35 |
| For Media | Chemicals, Inert Gas, Oil |
| Handle Material | Stainless Steel |
| Inlet Connection Size | 1/2" |
| Inlet Connection Type | NPT |
| Inlet Type | Female |
| Length | 2 1/2" |
| Max. Flow Rate | 0.35 GPM |
| Max. Height | 3 1/8" |
| Max. Operating Temp. | 538°C |
| Max. Pressure | 6000 psi |
|---|---|
| Max. Pressure (cwp) | 6000 psi |
| Media Temp. Range | -65°F to +450°F |
| Media Temperature Range | -65°F to +450°F |
| Min. Operating Temp. | -54°C |
| Outlet Connection | 0.5" |
| Outlet Port | Female |
| Overall Length | 2.5" |
| Pipe Size | 1/2" |
| Seal Material | PTFE |
| Seat Material | Metal |
| Stem Material | Stainless Steel |
| Stem Type | Non Rotating |
| Temp. Rating | -65°F to +450°F |
| Valve Body Style | Inline |
| Valve Series | H Series |
| Standards | C CERTIFIED |
Parker needle valves use a slender needle-shaped plunger that fits in a conical seat to restrict or allow flow. They control the flow of liquids or gases in metering applications. Parker HNVS8FF needle valve is intended for isolation and regulation in low-flow applications.
| Height (cm) | 3.81 |
|---|---|
| Length (cm) | 6.35 |
| Width (cm) | 7.94 |
| HS Code | 8481803060 |
|---|---|
| Country Of Origin | GB |
| Weight (kg) | 0.4275 |
The bi-directional design enables regulated airflow in one direction and free airflow in the other.
Gear motors can alter the speed or torque of a motor based on mechanical gears.
The unit is greased to provide an oil film that prevents the rotating element and races from harsh metal-to-metal contact.
| Style | Model | Max. Operating Pressure | Flow Rate | Body Material | Stem Material | Seal Material | Connection Type | Stem Type | Handle Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

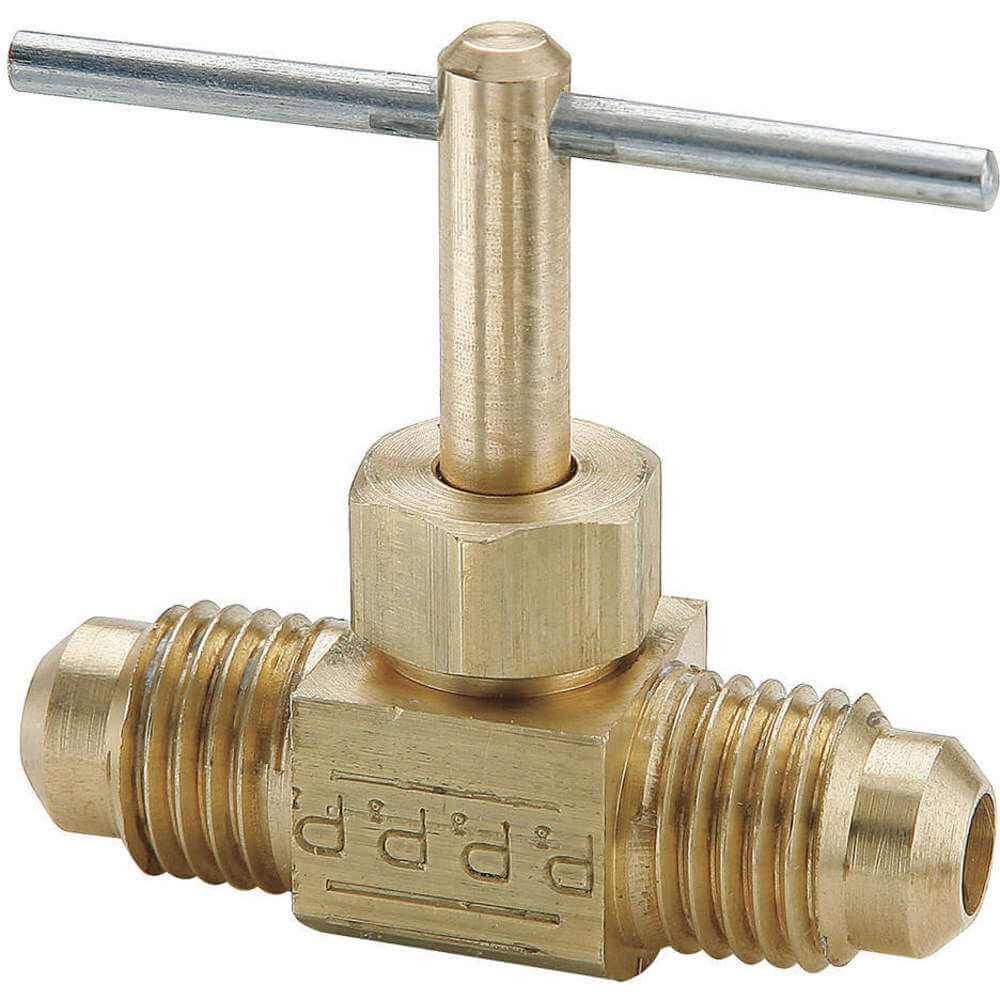

| A | LNV102F-6 | - | - | Brass | Brass | Neoprene | Flare x Flare | Brass | Brass | $82.86 | |
| B | 2A-V4LR-B | - | 0.12 GPM | Brass | PTFE | PTFE | Compression x Compression | V Stem | Nylon | $325.24 | |
| B | 2A-V4LN-B | - | 0.12 GPM | Brass | PTFE | PTFE | Compression x Compression | Regulating | Nylon | $317.11 | |
| C | 4F-V6LR-SS | - | 0.73 GPM | Stainless Steel | PTFE | PTFE | FNPT x FNPT | V Stem | Nylon | $482.71 | |
| C | 4F-V6LN-SS | - | 0.55 GPM | Stainless Steel | - | PTFE | - | Needle | Nylon | $366.63 | |
| C | 4F-V6LK-SS | - | 0.8 GPM | Stainless Steel | PCTFE | PTFE | FNPT x FNPT | PCTFE | Nylon | $539.14 | |
| D | 4F-V6LR-B | - | 0.73 GPM | Brass | PTFE | PTFE | FNPT x FNPT | V Stem | Nylon | $271.00 |
