| Item | Enclosed Pre-Wired Relay |
|---|---|
| Body Depth | 1.5" |
| Body Height | 1.5" |
| Body Width | 2.8" |
| Coil Voltage | 10-30V AC/DC/120V AC |
| Contact Amp Rating (resistive) | 10A |
| Contact Form | SPDT |
| Contact Material | Gold Flashed Silver Cadmium Oxide |
| Contact Rating (ac) | 10A @ 277V |
| Contact Rating (dc) | 10A @ 28V |
| Current Rating | 10A |
| Depth | 1 1/2" |
| Electrical Connection Type | Wire Lead |
| For Use With | Exhaust Fans, Motors, Vacuums |
| Frequency | 50/60 Hz |
| Height | 1.7" |
| Hp @ 120v | 1/3 hp, 1/6 hp |
| Hp @ 120v Ac | 1/6 hp |
|---|---|
| Hp @ 240v | 1/3 hp, 1/6 hp |
| Hp @ 240v Ac | 1/6 hp |
| Lead Length | 16" |
| Maximum Operating Temperature | 140°F |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -30°F |
| Nema Enclosure Rating | 1 |
| Nipple Size | 0.5" |
| Nipple Size Type | NPT |
| Relay Mounting Style | Surface |
| Response Time | 20 ms |
| Sealing | Enclosed |
| Status Indicator | LED Indicator |
| Width | 2 4/5" |
| Standards | CE CERTIFIED, CSFM, ROHS COMPLIANT, UL 864, UL 916, UL LISTED |
Functional Devices Inc / RIB RIBU1C enclosed pre-wired relay is ideal for simplified and efficient electrical control applications. It is used in building automation, HVAC systems and industrial processes. This device streamlines the installation process by providing a pre-wired & enclosed relay solution, reducing labour and potential errors.
| Height (cm) | 10.41 |
|---|---|
| Length (cm) | 7.87 |
| Width (cm) | 5.33 |
| HS Code | 8536490075 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.1575 |
Major factors include application compatibility, electrical requirements, mounting style, enclosure type, sealing, standards compliance, response time, status indicators, mechanical durability and compatibility with other devices.
This relay has a mechanical operating durability of 10000000 cycles, ensuring long-lasting performance.
It can operate in temperatures ranging from -30 to 140 degrees F.
This relay has a response time of 20 milliseconds, ensuring quick and efficient switching in control applications.
| Style | Model | Contact Form | Coil Voltage | Response Time | Hp @ 120v | Hp @ 240v | Depth | Height | Dimensions | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RIBU1C-N4 | SPDT | 10-30V AC/DC/120V AC | 20 ms | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 1/2" | 1.7" | - | $42.34 | |
| B | RIBH1S | SPST/NO | 10-30V AC/DC/208-277V AC | 20 ms | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 2.3" | - | $55.74 | |
| C | RIBU1S | SPST/NO | 10-30V AC/DC/120V AC | 20 ms | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 2.3" | - | $52.33 | |
| D | RIBL3C | 3PST/NO | 10-30V AC/DC | 20 ms | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 4" | - | $86.61 | |
| E | RIBL4C | SPDT/3PST/NO | 10-30V AC/DC | 20 ms | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 4" | - | $109.64 | |
| F | RIB2401D | DPDT | 24V AC/DC/120V AC | 8 ms | 1/2 hp, 1/3 hp | 1/2 hp, 1/3 hp | 1 1/2" | 1.7" | - | $41.83 | |

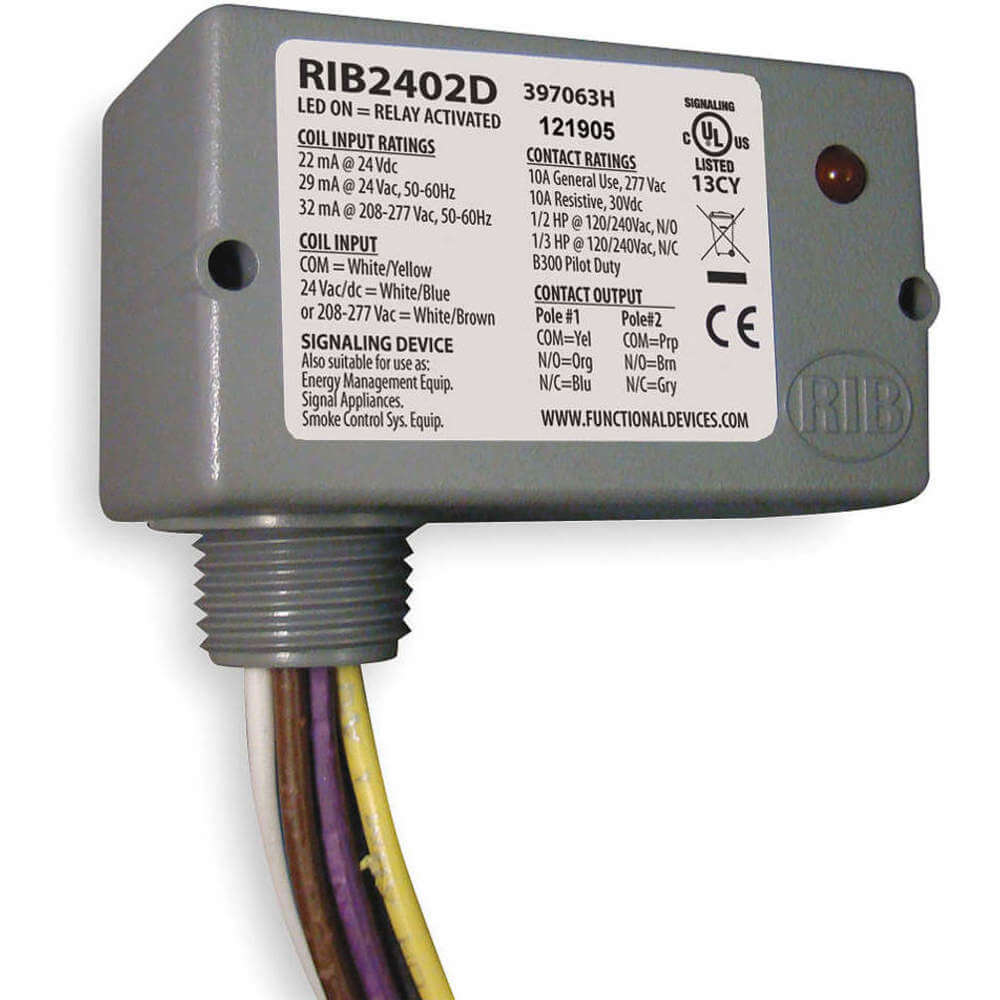

| G | RIB2402D | DPDT | 24V AC/DC/208-277V AC | 8 ms | 1/2 hp, 1/3 hp | 1/2 hp, 1/3 hp | 1 1/2" | 1.7" | - | $46.70 |
