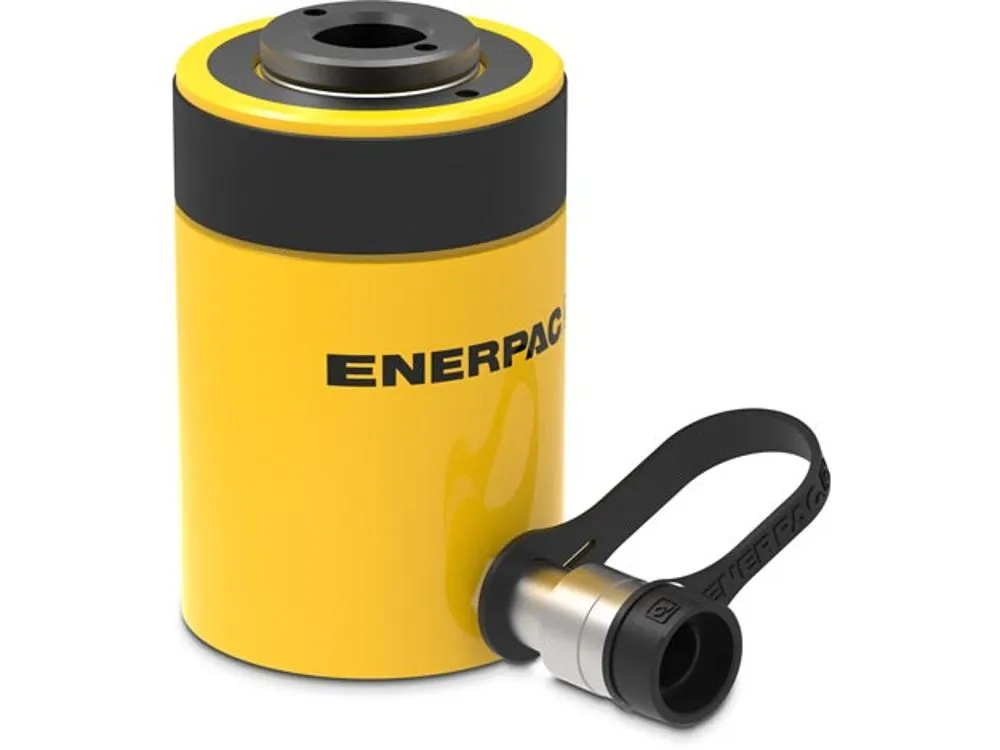

ENERPAC RCH-302 Single-Acting Hollow-Plunger Hydraulic Cylinder, 2.50 Inch Stroke, Steel | AF2XZG 6Z271

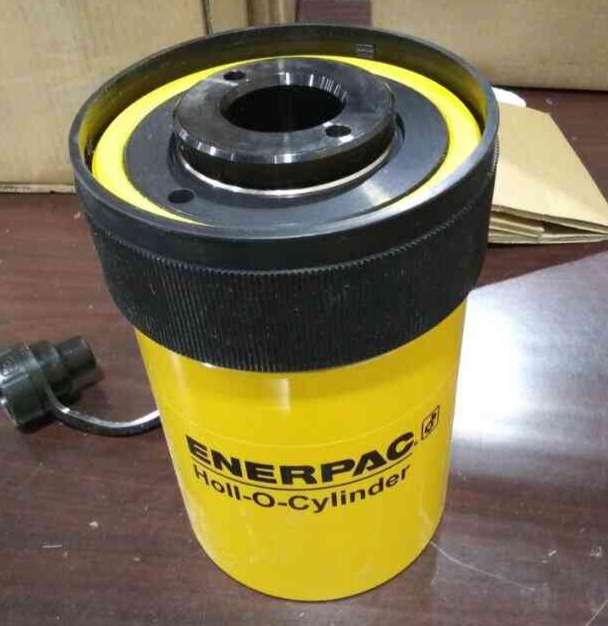

ENERPAC rch-302 Single-Acting Hollow-Plunger Hydraulic Cylinder, 2.50 Inch Stroke, 30 ton. Capacity, Single-Acting, 10000 PSI, Steel, In Stock

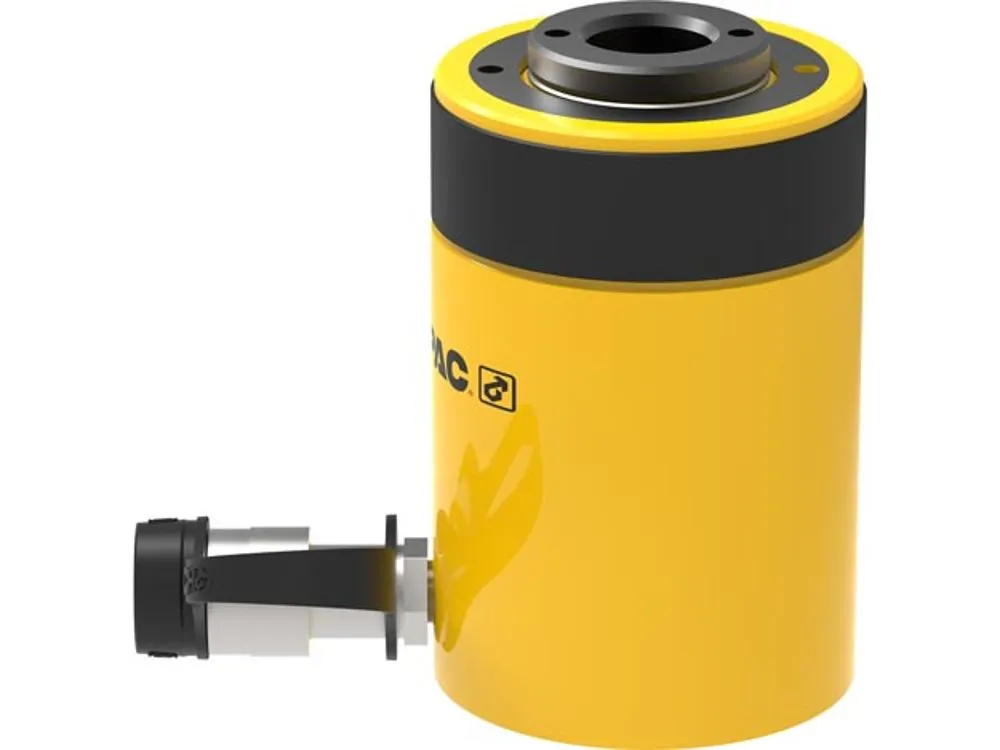

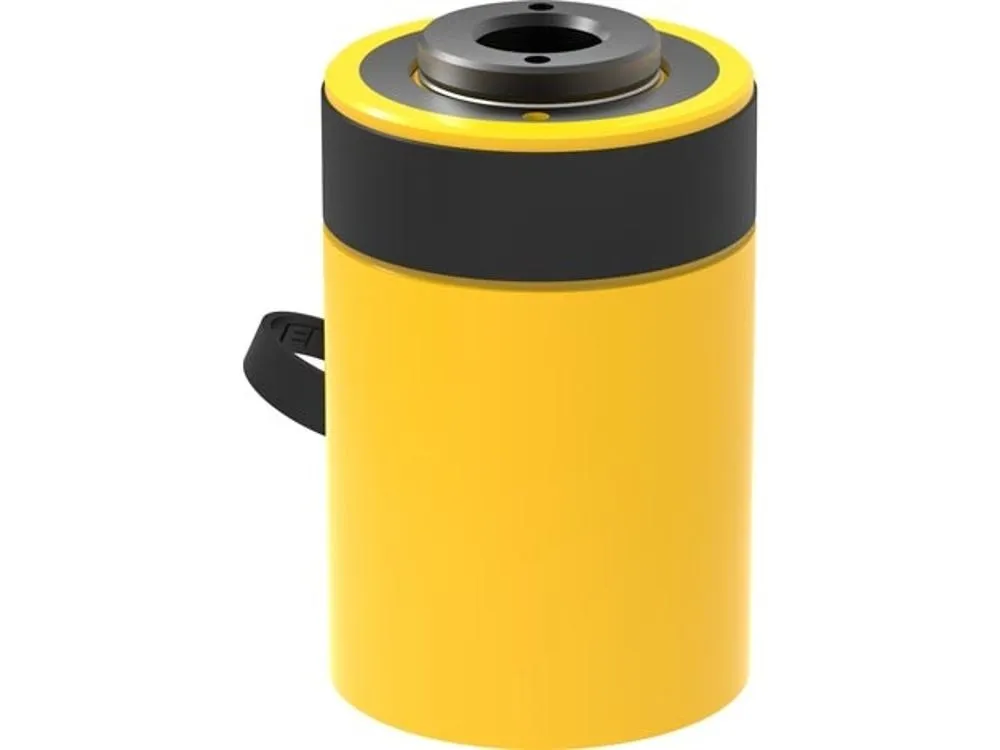

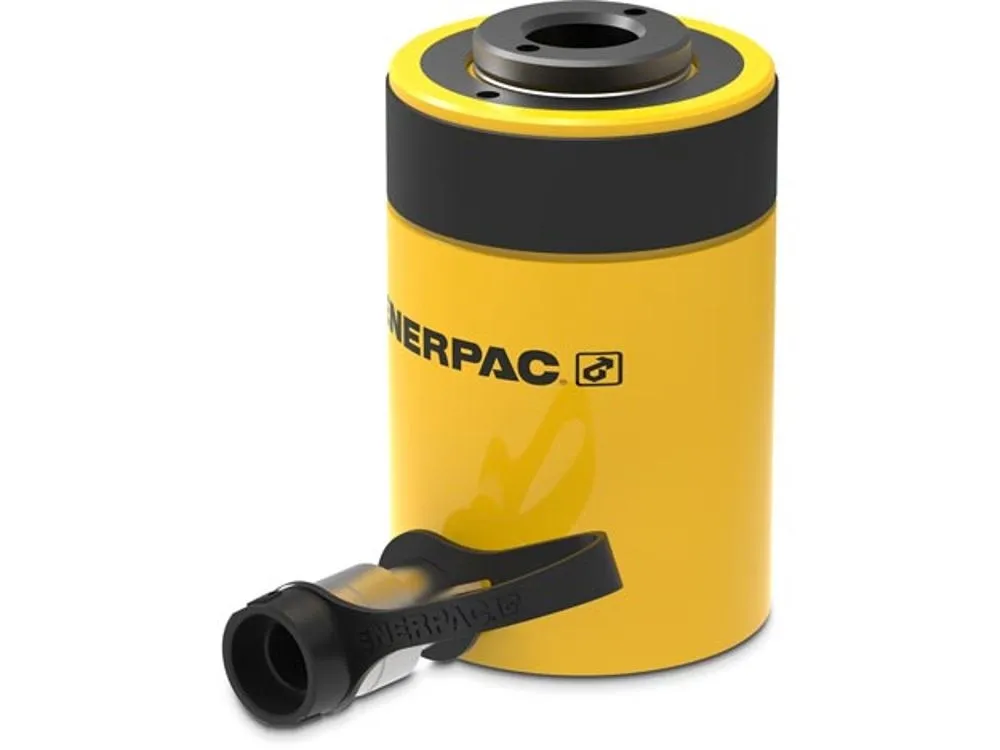

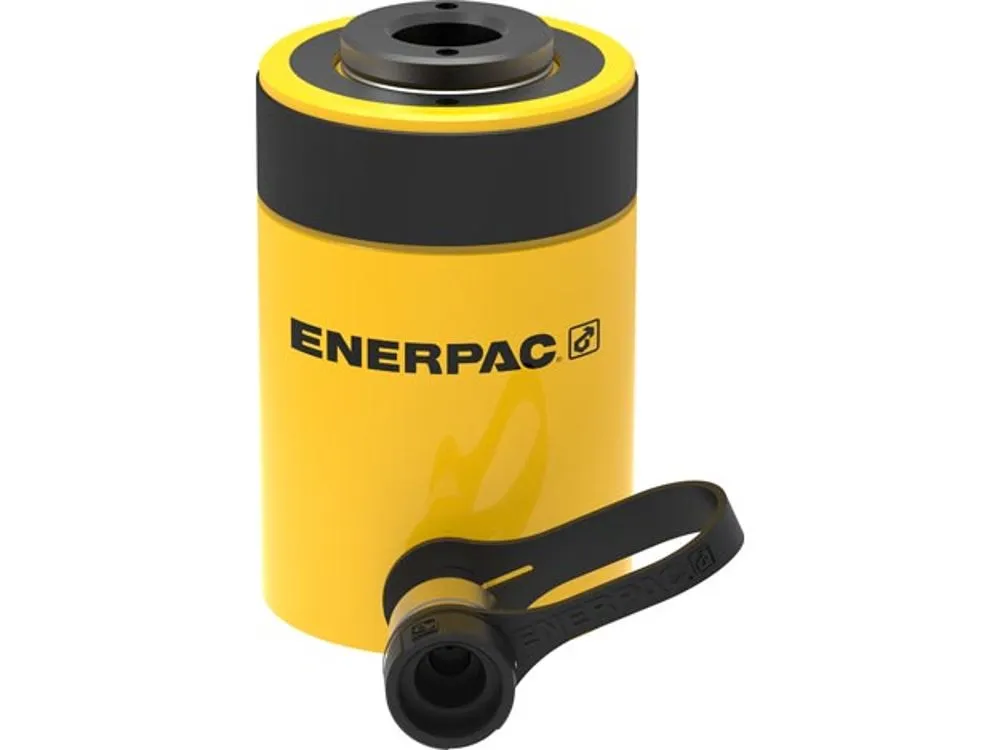

ENERPAC RCH-302 Single-Acting Hollow-Plunger Hydraulic Cylinder, 2.50 Inch Stroke, Steel

Q: How to maintain Enerpac RCH-302 single acting hydraulic cylinder?

Regularly inspect the cylinder for leaks or damage.Keep the cylinder and its components clean from dirt and debris.Ensure proper lubrication of the cylinder's moving parts.Store the cylinder in a clean and dry environment when not in use.

Item: AF2XZG

Model: RCH-302

Cross Ref: 6Z271

Check Availability

In Stock.

Get it by Thursday, Feb 12

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Stroke Length

Oil Capacity

We deliver to your doorstep under DAP terms. Customs clearance is for your account

~~$2,747.22~~

10% off

$2,472.50 /unit (ex. VAT)

Add To Cart

Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now

Payment

Delivery

Specifications
Product Details
Shipping Information
Working Mechanism
Features
Compatible Accessories
FAQ′s

Specifications

Item	Hydraulic Cylinder
Base Bolt Circle Dia.	3.63"
Base Mounting Holes Bolt Circle	3.63"
Base Mounting Holes Thread Depth	0.55"
Base Mounting Thread Size	3/8"-16
Body Material	Steel
Bolt Circle Dia.	3.63"
Center Hole Dia.	1.31"
Collapsed Height	7.03"
Collar Thread Length	1.66"
Collar Thread Size	4 1/2"-12
Cylinder Bore	3 1/2"
Cylinder Type	Hollow Plunger
Effective Push Area	7.22 sq. in.
Extended Height	9.53"
Handle	Yes
Includes	Coupler, Dust Cap
Material	Steel
Max. Operating Pressure	10000 psi

Max. Push Capacity	30 ton.
Nominal Capacity	30 ton.
Nominal Stroke Length	3"
Oil Capacity	18.05 cu. in.
Oil Capacity Push	18.05 cu. in.
Outside Dia.	4 1/2"
Plunger Dia.	2 1/2"
Plunger Thread Length	22/25"
Plunger Thread Size	1 13/16" -16
Plunger Type	Hollow
Promotion Restriction	Not Eligible For Promotion
Retracted Height	7.03"
Saddle Diameter	2 1/2"
Series	RCH Series
Single Acting/double Acting	Single Acting
Stroke Length	2 1/2"
Thread Size	3/8"-16
Weighing Capacity	30 ton.

Product Details

Enerpac RCH-302 hydraulic cylinder serves as a linear actuator to provide unidirectional stroke and force in offshore and marine engineering applications. It is ideal for use in the aerospace, agricultural, oil & gas, mining and food & production industries.

Shipping Information

Height (cm)	20.57
Length (cm)	15.24
Width (cm)	11.43

HS Code	8431100090
Country Of Origin	CN
Weight (kg)	10.575

Working Mechanism

The RCH-302 is a steel hydraulic cylinder with a hollow plunger design.
It is single-acting, exerting force in one direction when hydraulic pressure is applied.
The hollow plunger allows for both push and pull forces, making it suitable for tensioning applications.
By connecting it to a hydraulic system, it can generate force to perform various industrial tasks.

Features

Enerpac RCH-302 single-acting hydraulic cylinder is used for lifting, pushing, pulling, bending and holding heavy loads.
It features a pre-tensioned spring to improve retraction rate and a unique GR2 bearing system to improve side-load resistance.
This RCH-302 Enerpac hydraulic cylinder with a hollow plunger design facilitates both pull and push operations and has a baked enamel finish, offering corrosion resistance.
It has a nickel-plated floating centre tube to increase product life and a collar thread for easy fixturing.
This RCH-302 Enerpac hydraulic cylinder features steel construction with baked enamel finish for resisting corrosion on exposed surfaces and structural rigidity.

Compatible Accessories

Enerpac HP3015 hollow saddle is used to attach the cylinder to a mounting bracket or fixture, enabling secure positioning or installation of the cylinder in a specific location or orientation.

Frequently Asked Questions

What do we mean by plunger cylinder?

A hydraulic cylinder with or without a piston is called a plunger cylinder.

What are the different kinds of hydraulic cylinders?

Single-acting, double-acting, tandem hydraulic and telescopic / actuating hydraulic cylinders are 4 different types of hydraulic cylinders.

What is the stroke length of this hydraulic cylinder?

RCH-302 cylinder has a stroke length of 2.5 inches.

What are the different kinds of hydraulic cylinders?

Single-acting, double-acting, tandem hydraulic and telescopic / actuating hydraulic cylinders are 4 different types of hydraulic cylinders.

What is the purpose of a hollow-plunger hydraulic cylinder?

The hollow plunger allows for both push and pull forces, making the cylinder versatile for tensioning applications where force needs to be applied in both directions.
