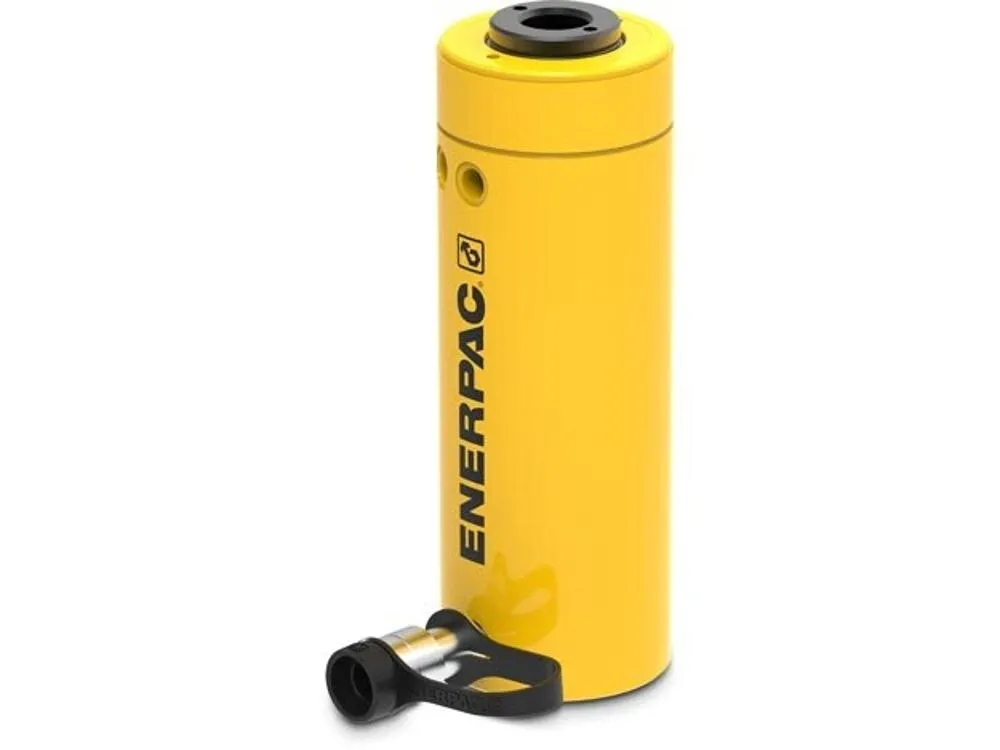

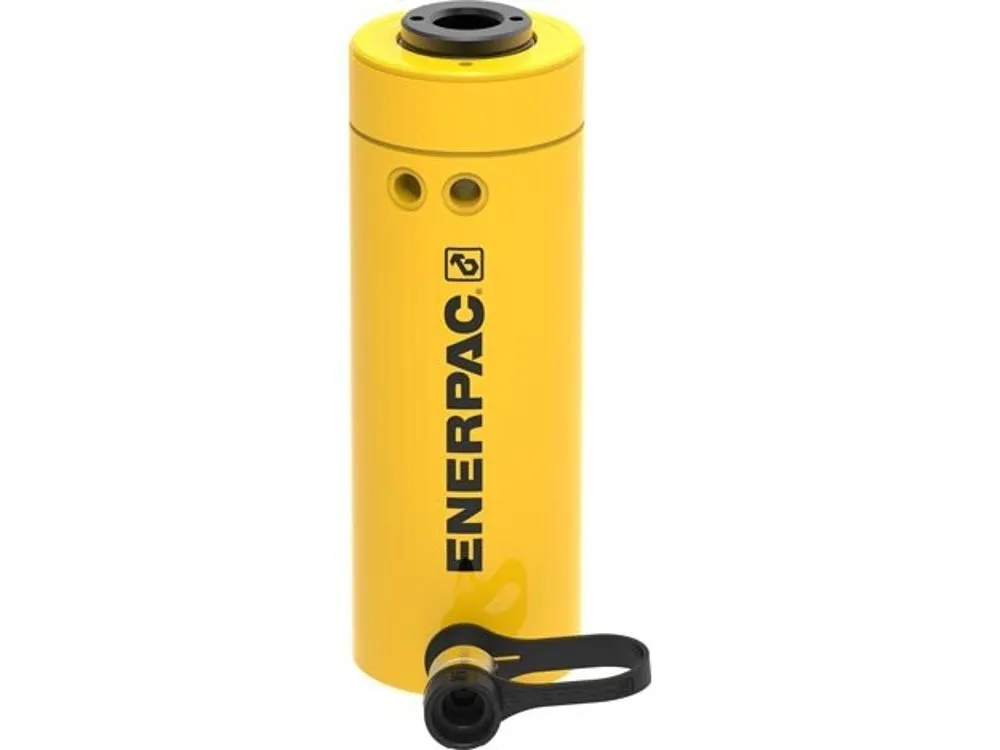

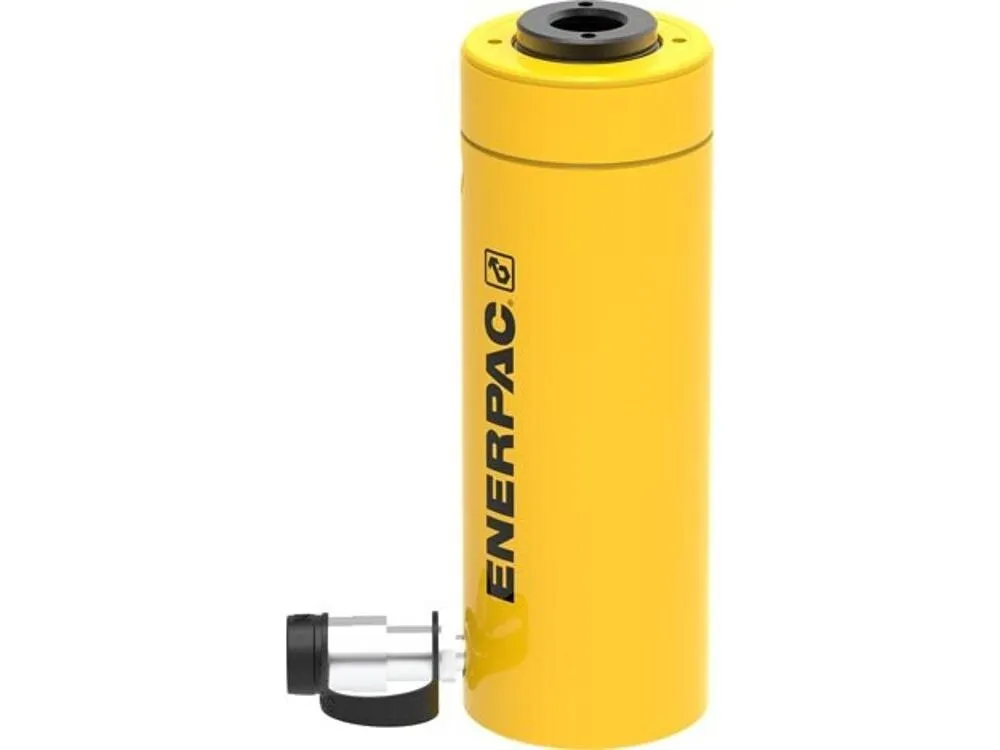

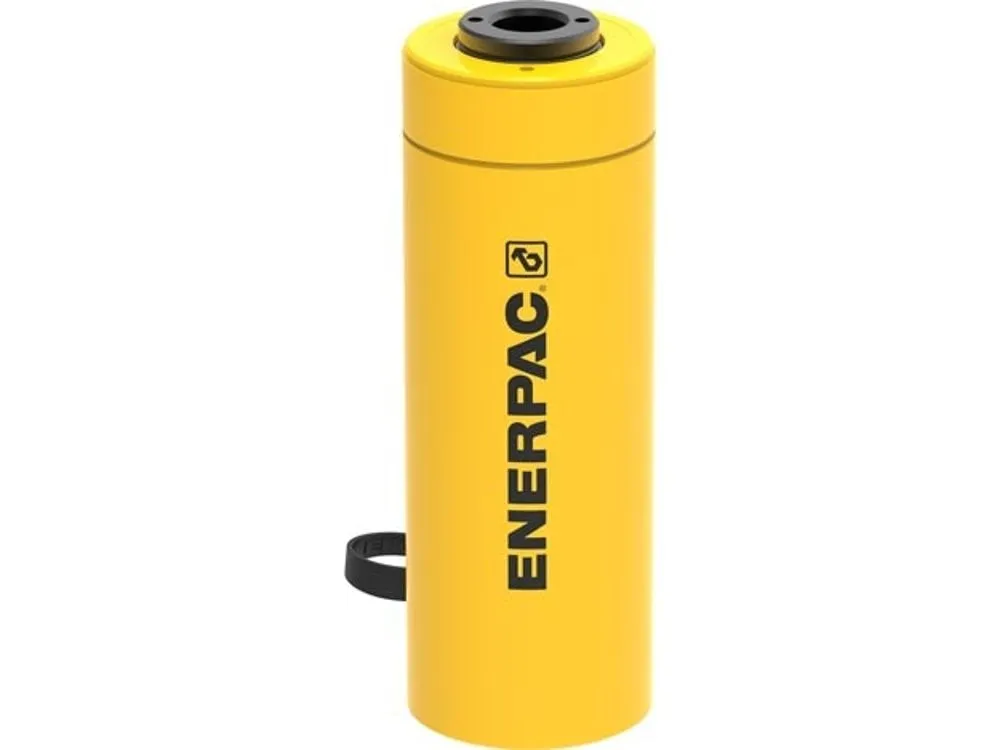

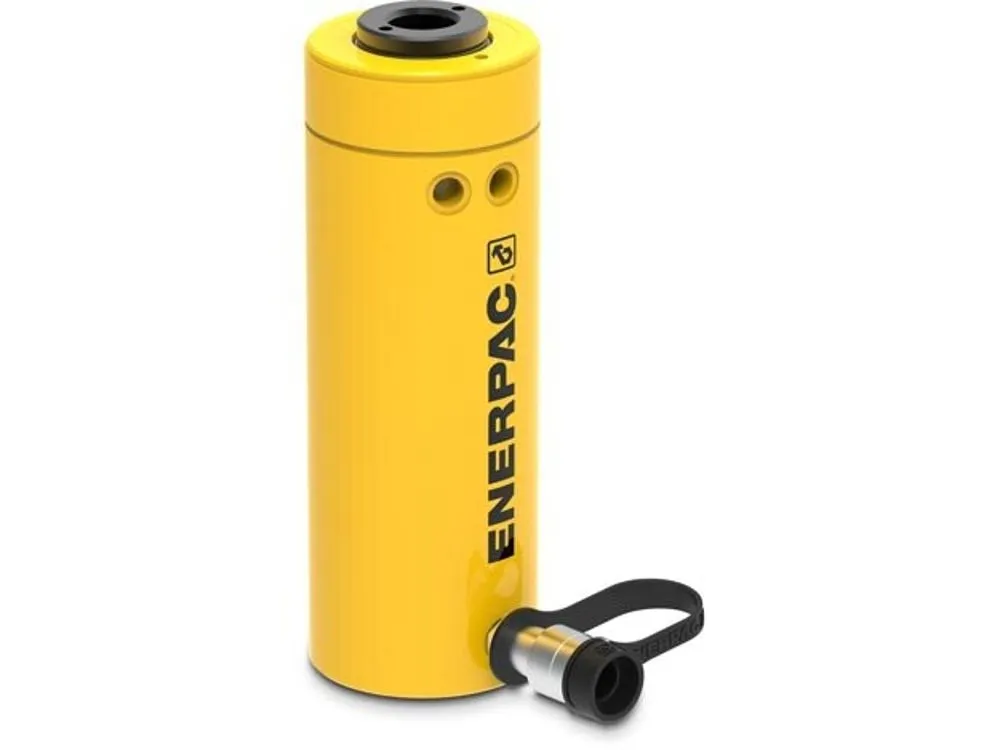

ENERPAC RCH-306 Hollow Plunger Hydraulic Cylinder, 6.13 Inch Stroke

Item: AE7NBK
Model: RCH-306
Cross Ref: 5ZL53
Check Availability
In Stock.

Get it by Wednesday, Feb 11

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Stroke Length
Oil Capacity

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$4,187.51
10% off
$3,768.76 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now

Payment

Delivery

Specifications

Item Hydraulic Cylinder
Base Bolt Circle Dia. 3.63"
Base Mounting Holes Bolt Circle 3.63"
Base Mounting Holes Thread Depth 0.55"
Base Mounting Thread Size 3/8"-16
Base To Advance Port 1"
Body Material Steel
Bolt Circle Dia. 3.63"
Center Hole Dia. 1.31"
Collapsed Height 13"
Collar Thread Length 1.66"
Collar Thread Size 4 1/2"-12
Cylinder Type Hollow Plunger
Effective Push Area 7.22 sq. in.
Extended Height 19.13"
Handle Yes
Includes Coupler, Dust Cap
Material Steel
Max. Operating Pressure 10000 psi
Max. Push Capacity 30 ton.
Nominal Capacity 30 ton.
Nominal Stroke Length 6"
Oil Capacity 44.23 cu. in.
Oil Capacity Push 44.23 cu. in.
Outside Dia. 4 1/2"
Plunger Dia. 2 1/2"
Plunger Thread Length 22/25"
Plunger Thread Size 1 13/16" -16
Plunger Type Hollow
Promotion Restriction Not Eligible For Promotion
Retracted Height 13"
Saddle Diameter 2 1/2"
Series RCH Series
Single Acting/double Acting Single Acting
Stroke Length 6 1/8"
Thread Size 3/8"-16
Weighing Capacity 30 ton.

Product Details

Enerpac RCH306 hydraulic cylinder is a versatile tool designed for lifting and lowering heavy loads and applying pull & push forces with ease using a hydraulic pump. It finds applications in various industries such as offshore, marine, engineering, aerospace, agriculture, oil & gas, mining, and food production.

Shipping Information

Height (cm) 19.81
Length (cm) 52.07
Width (cm) 11.43
HS Code 8412210075
Country Of Origin CN
Weight (kg) 19.44

Working Mechanism

  • Enerpac RCH306 cylinder is an integral component of a hydraulic system that includes a hydraulic cylinder, hydraulic pump, integrated hydraulic valve, and additional system components such as hydraulic couplers, hoses, and gauges.
  • When the user activates the hydraulic pump, hydraulic oil is directed into the cylinder, leading to an increase in pressure within the cylinder, ultimately extending the plunger.
  • The capacity of the cylinder determines the magnitude of force generated by the system, while the stroke of the cylinder defines the maximum distance the plunger can exert force on the load.
  • The type of pump and valve control employed in the system dictate the speed and level of control over the applied force.

Features

  • Enerpac RCH306 hydraulic cylinder has a hollow plunger design that permits push and pull forces.
  • It has collar threads to ensure smooth fixturing and a nickel-plated floating centre tube for increasing product life.
  • This hydraulic cylinder features a single-acting spring return to improve retraction speed.
  • It further features a steel body with baked enamel finish to provide durability and resistance from corrosion.
  • This Enerpac hydraulic cylinder comes with a CR400 coupler for use on all Enerpac cylinders and pumps.

Compatible Accessories

  • Enerpac HC9206C Hose: It is designed to work seamlessly with the Enerpac low hydraulic cylinder. With a length of 6 feet and a 0.25-inch inner diameter for providing the necessary hydraulic fluid transfer capabilities for efficient operation of the cylinder in various applications.
  • Enerpac HP3015 Threaded Hollow Saddle: It provides a threaded connection and hollow surface for a secure attachment to the cylinder during lifting & lowering operations.
  • Enerpac GA45GC Gauge Adapter: It enables easy connection of pressure gauges, allowing precise monitoring of hydraulic pressure during operation.

Documentation

Frequently Asked Questions

What maintenance is required for Enerpac RCH306 hydraulic cylinder?

Regular maintenance for Enerpac RCH306 cylinder includes inspecting it for any signs of wear or damage, ensuring proper lubrication of moving parts and keeping the cylinder clean and free from contaminants.

Can Enerpac RCH306 hydraulic cylinder be used in vertical lifting applications?

Yes, this hydraulic cylinder can be used for vertical lifting applications. However, it is important to consider the weight capacity and stroke length of the cylinder to ensure safe and efficient operation.

What safety precautions should I take when using this Enerpac RCH-306 hollow plunger hydraulic cylinder?

  • Inspect the cylinder for damage or leaks before each use.
  • Ensure operators wear appropriate PPE, including safety glasses and gloves.
  • Select a compatible hydraulic pump in terms of pressure and flow rate.
  • Securely position and support the load before applying pressure.
  • Mount the cylinder securely according to manufacturer guidelines.
  • Stay within rated pressure and load capacity limits during operation.
  • Monitor for hydraulic fluid leaks and address them promptly.
  • Bleed air from the hydraulic system before use to ensure proper operation.
  • Maintain a safe distance from the load during operation.
  • Use both hands and a firm grip on pump controls for precise operation.
  • Be familiar with emergency shutdown procedures for safety.

What are the factors to consider while choosing Enerpac RCH-306 hollow plunger hydraulic cylinder?

Major factors include application requirements, operating pressure, load capacity, stroke length, mounting options, fluid compatibility, environmental conditions, safety features, duty cycle and maintenance.
