| Item | Hydraulic Hose |
|---|---|
| End One Coupler | CH604 |
| End Two Coupler | CH604 |
| Hose Oil Capacity (cm3) | When Using Greater Hose Lengths, It Is Sometimes Necessary to Fill The Pump Reservoir After Filling The Hoses. to Determine The Hose Oil Capacity, Use The Following For 6, 4 mm Inside Diameter Hoses, Capacity (cm3) = 32, 1699 x Length (M) |
| Hose Oil Capacity (in3) | When Using Long Hose Lengths, It Is Sometimes Necessary To Fill The Pump Reservoir After Filling The Hoses. To Determine The Hose Oil Capacity, Use The Following For .25" Internal Diameter Hoses: Capacity (In3) = 0.5892 X Length (ft.) |
| Internal Diameter (in) | 0.25" |
|---|---|
| Length | 6 ft., 4 ft. |
| Maximum Operating Pressure (psi) | 10000 psi |
| Oil Capacity (in3) | 3.54 cu. in. |
| Height (cm) | 12.7 |
|---|---|
| Length (cm) | 40.64 |
| Width (cm) | 40.64 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 1.215 |
| Style | Model | Safety Factor | End One Coupler Size | End Two Coupler Size | Type | Material | Max. Operating Pressure | End One Coupler Type | End Two Coupler Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

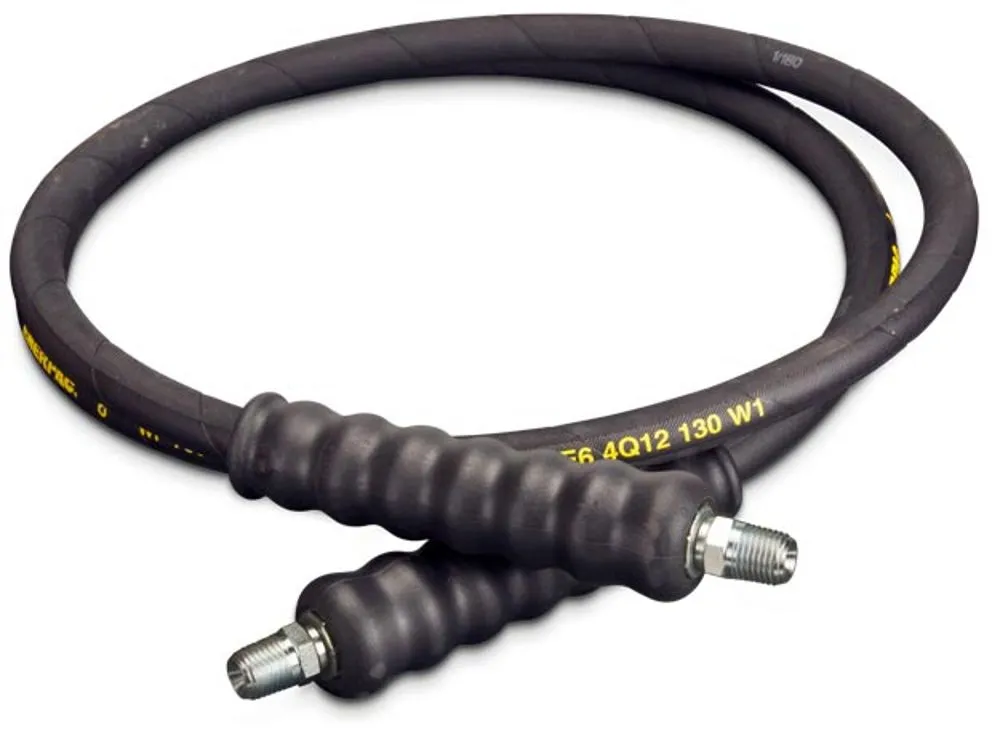

| A | H9206Q | 2:1 | 1/4" | 1/4" | High Pressure | Rubber | 10000 psi | NPTF | NPTF | $216.56 | |

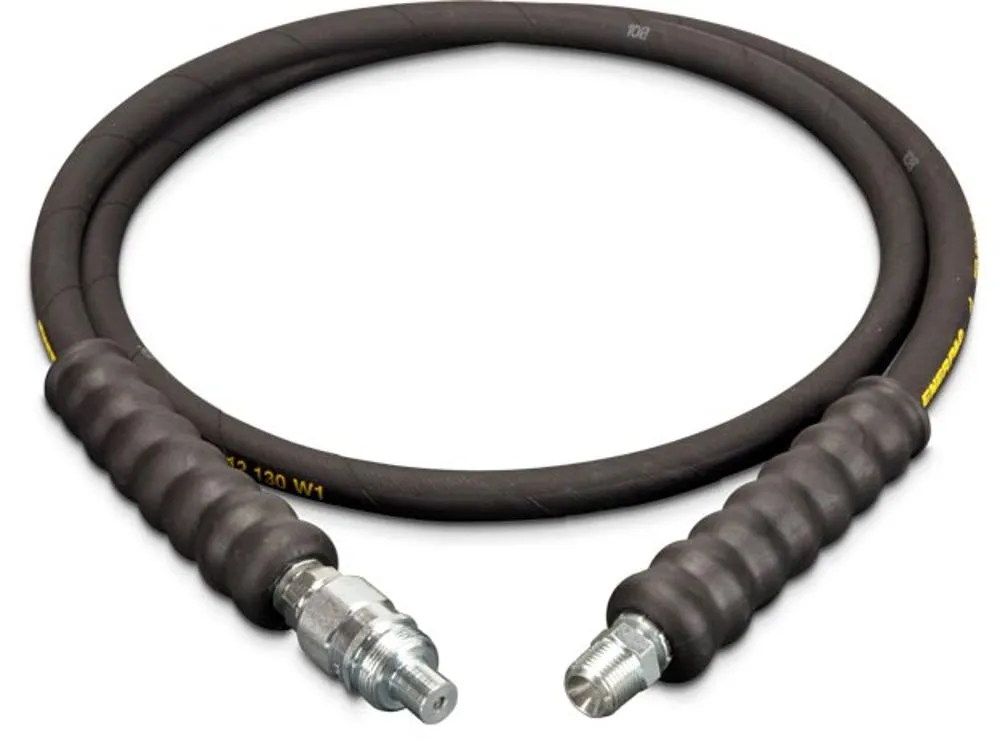

| B | HA9206 | 21 | 3/8" | - | High Pressure | Rubber | 10000 psi | NPTF | - | $333.44 | |

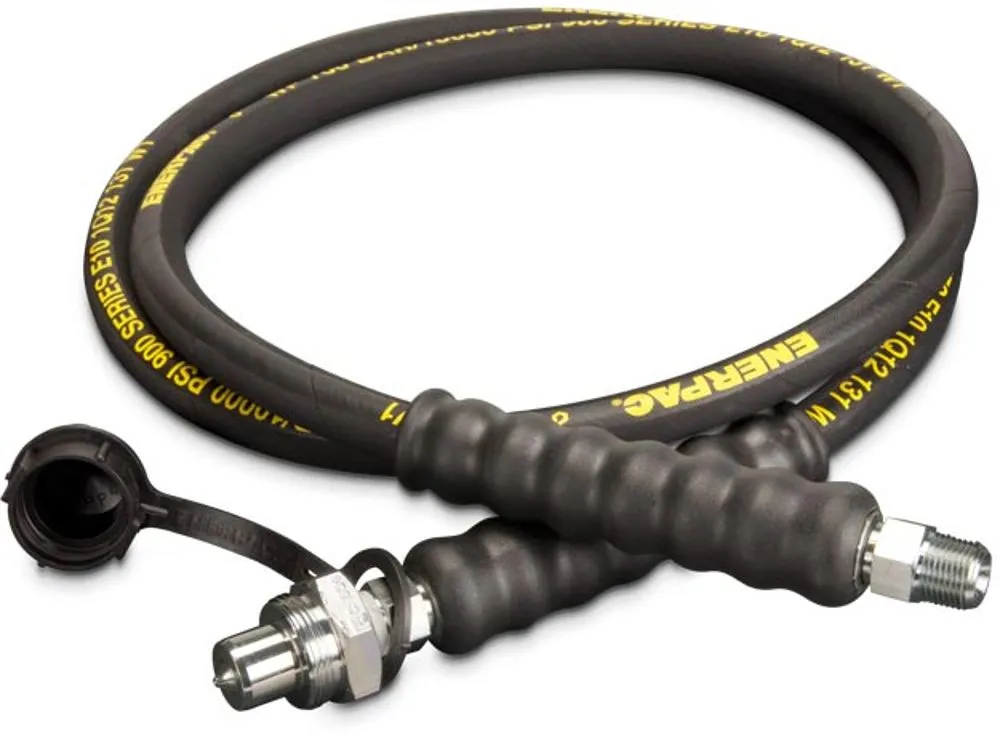

| C | HC9306 | 21 | 3/8" | - | High Pressure | Rubber | 10000 psi | NPTF | - | $537.91 | |

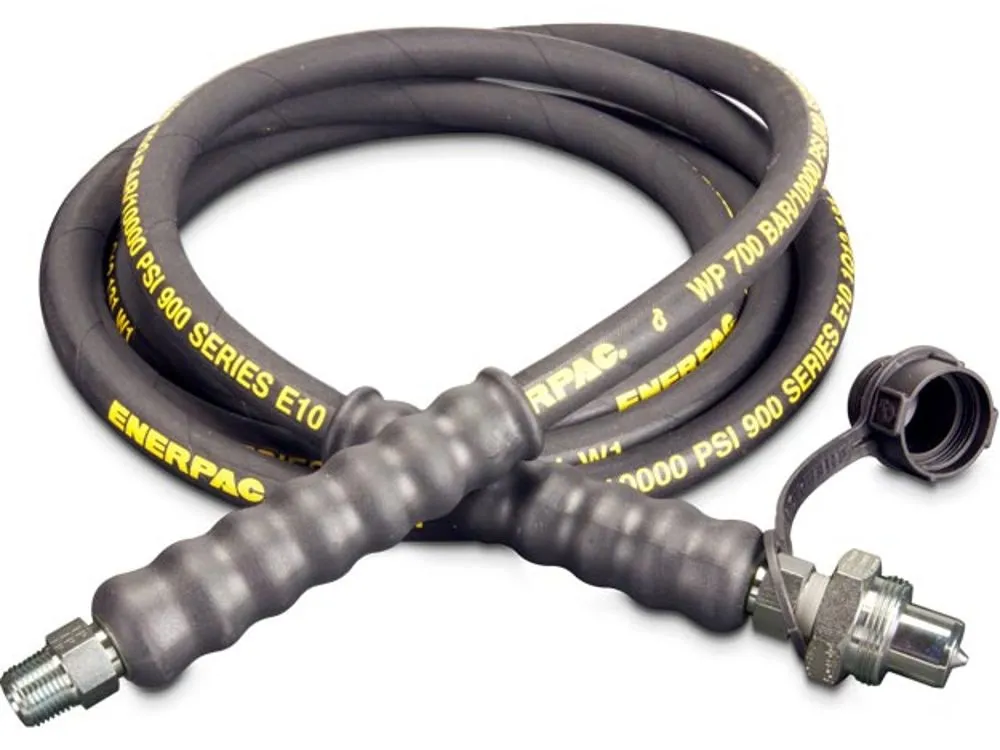

| D | HC9310 | 21 | 3/8" | - | High Pressure | Rubber | 10000 psi | NPTF | - | $739.59 | |

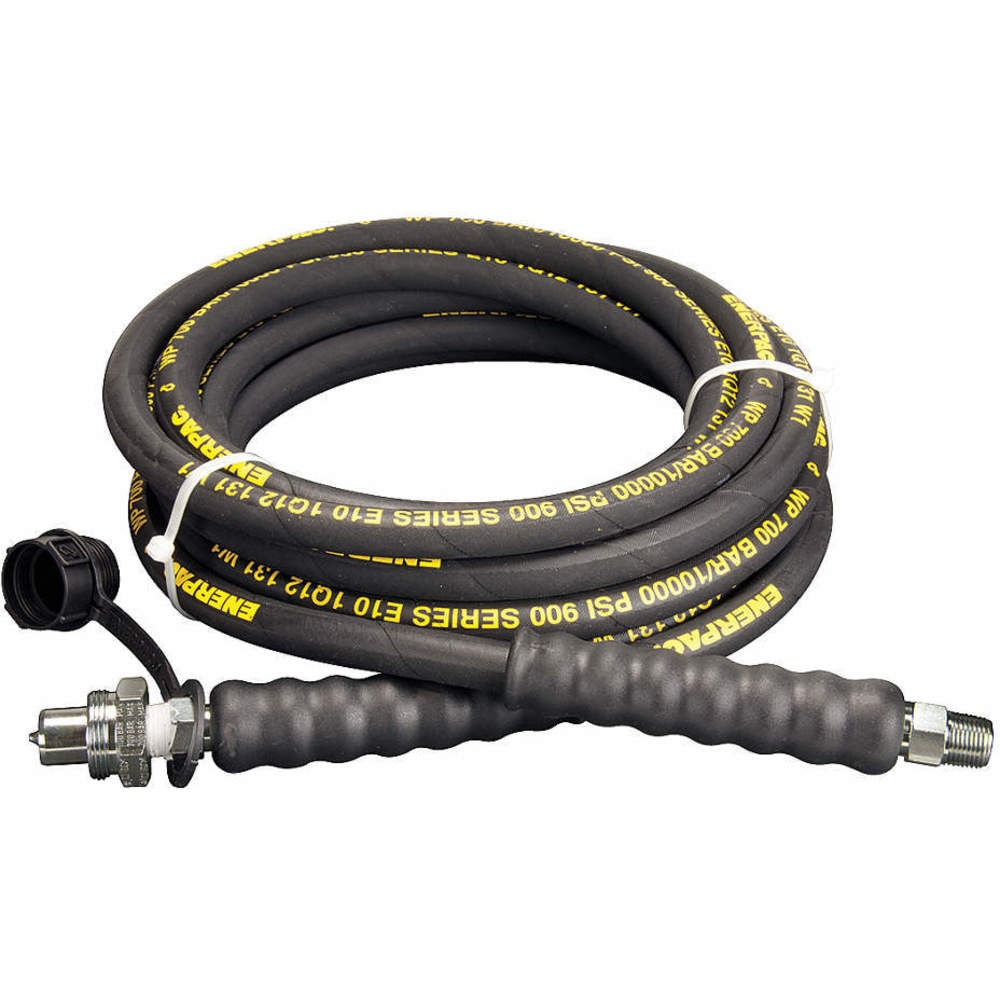

| E | HC9320 | 21 | - | - | High Pressure | Rubber | 10000 psi | - | - | $940.65 | |

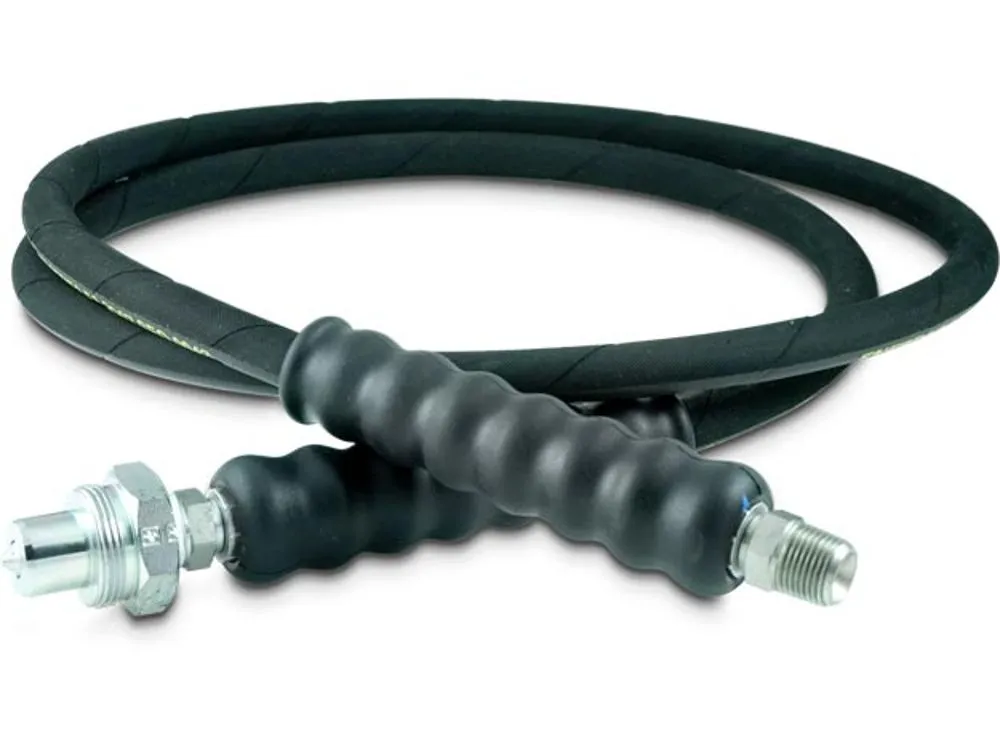

| F | HC9206 | 21 | 3/8" | - | High Pressure | Rubber | - | NPTF | - | $280.93 | |
| G | H9202 | 2:1 | 3/8" | 3/8" | High Pressure | Rubber | 10000 psi | NPTF | NPTF | $153.16 |
