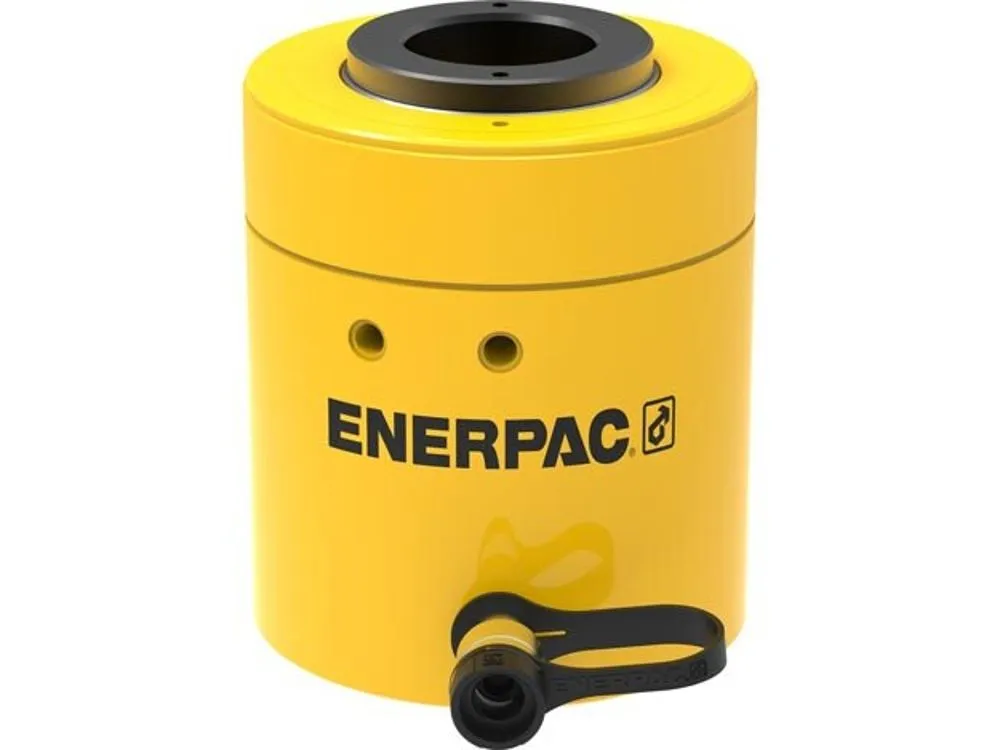

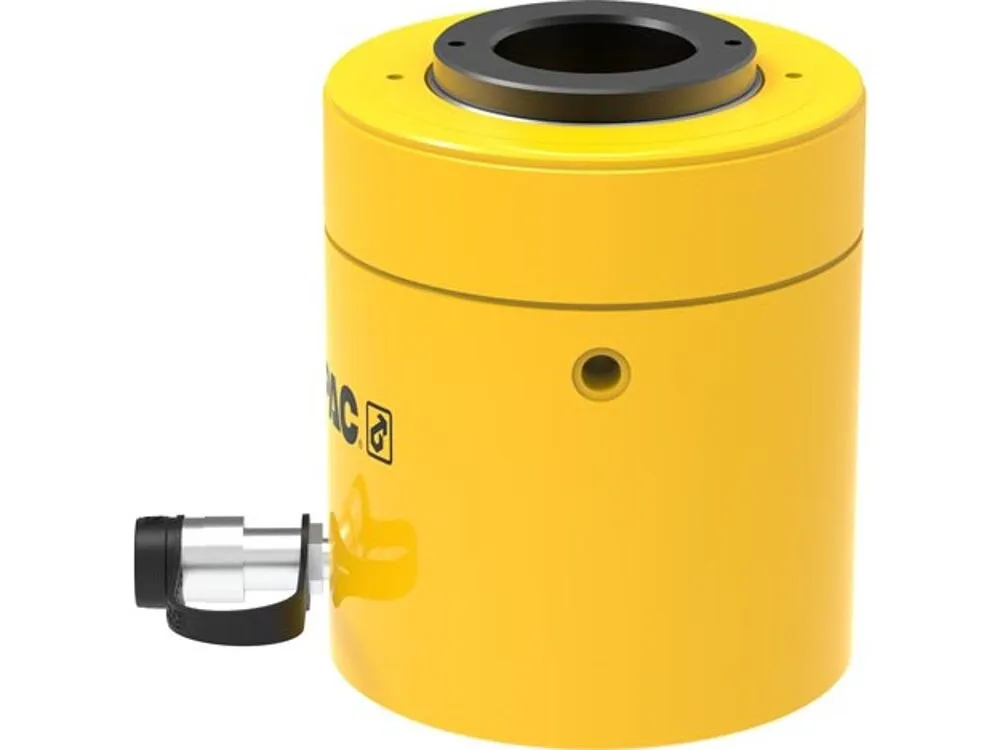

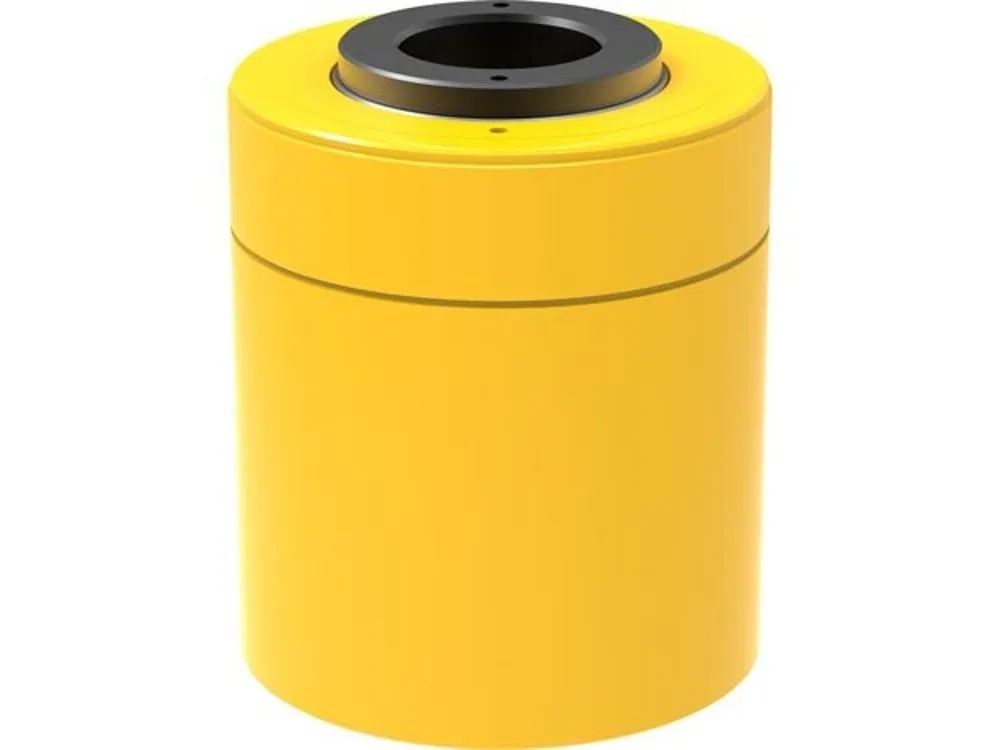

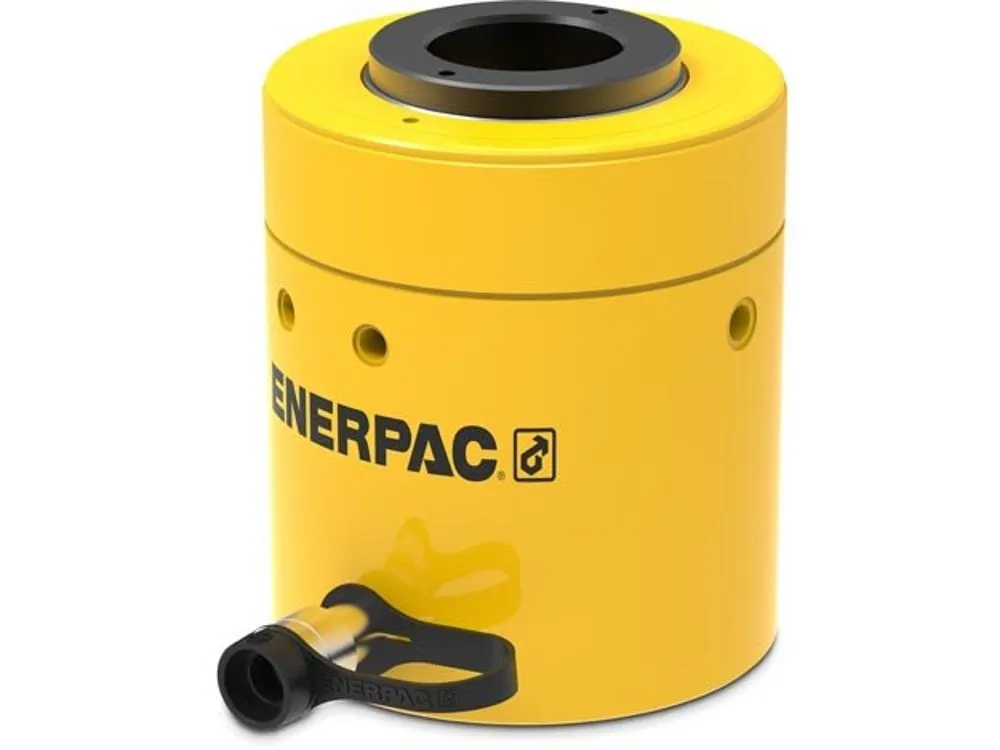

ENERPAC RCH1003 Hollow Plunger Hydraulic Cylinder, 100 Tons, 3 Inch Stroke Length

Item: AE2LZG
Model: RCH1003
Cross Ref: 4YDY7
Check Availability
In Stock.

Get it by Monday, Feb 9

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Stroke Length
Oil Capacity

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$13,602.19
10% off
$12,241.97 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now

Payment

Delivery

Specifications

Item Hydraulic Cylinder
Base Bolt Circle Dia. 7"
Base Mounting Holes Bolt Circle 7"
Base Mounting Holes Thread Depth 3/4"
Base Mounting Thread Size 5/8"-11
Base To Advance Port 1 1/2"
Body Material Steel
Bolt Circle Dia. 7"
Center Hole Dia. 3.11"
Collapsed Height 10"
Collar Thread Length 2.38"
Collar Thread Size 8 3/8"-12
Cylinder Bore 6 1/2"
Cylinder Type Hollow Plunger
Effective Push Area 20.63 sq. in.
Extended Height 13"
Finish Paint
Handle Yes
Includes Coupler, Dust Cap
Material Steel
Max. Operating Pressure 10000 psi
Max. Push Capacity 100 ton.
Nominal Capacity 100 ton.
Nominal Stroke Length 3"
Oil Capacity 61.88 cu. in.
Oil Capacity Push 61.88 cu. in.
Outside Dia. 8.38"
Plunger Dia. 5"
Plunger Thread Length 1"
Plunger Thread Size 4"-16
Plunger Type Hollow
Promotion Restriction Not Eligible For Promotion
Retracted Height 10"
Saddle Diameter 4.97"
Saddle Protrusion From Plunger 1/2"
Series RCH Series
Single Acting/double Acting Single Acting
Stroke Length 3"
Thread Size 5/8"-11
Weighing Capacity 100 ton.

Product Details

Enerpac RCH1003 hollow plunger hydraulic cylinder provides both pull and push forces. This hydraulic cylinder is used to lift heavy loads in manufacturing & automotive plants and various maintenance & repair operations.

Shipping Information

Height (cm) 27.94
Length (cm) 30.48
Width (cm) 27.94
HS Code 8412210075
Country Of Origin CN
Weight (kg) 56.16

Features

  • It comes with a nickel-plated floating centre tube for improving durability and reducing wear, ensuring reliable performance over an extended period.
  • This cylinder is coated with a baked enamel finish, offering increased corrosion resistance and enhancing its durability.
  • It is designed with collar threads for quick and easy installation, providing stability during operation and facilitating efficient force application.
  • This RCH1003 hydraulic cylinder comes equipped with a CR400 coupler that ensures a secure connection between the cylinder and hydraulic hoses or other hydraulic equipment, promoting reliable and leak-free operation.

Compatible Accessories

  • Enerpac HP10016 Saddle: It is used to provide a stable platform for positioning and lifting heavy loads, ensuring proper stability and weight distribution.

Frequently Asked Questions

Can this RCH1003 hollow plunger hydraulic cylinder be used in both horizontal and vertical positions?

Yes, it can be used in both horizontal and vertical orientations.

What measures should be taken during the installation process of a hollow plunger hydraulic cylinder?

  • Wear suitable personal protective equipment (PPE), including gloves, safety glasses and protective clothing.
  • Ensure the hydraulic equipment is set up stably and securely, considering factors such as weight, balance and surface conditions.
  • Follow appropriate lockout / tagout procedures to prevent accidental activation of the hydraulic system during installation.
  • Take the time to read and understand the product manual and any specific safety guidelines provided by Enerpac.

How to identify and troubleshoot potential issues with RCH1003 hollow plunger hydraulic cylinder?

  • Conduct routine visual inspections to identify any leaks, damaged seals or signs of wear.
  • If any problems are observed, refer to the product manual or reach out to Enerpac for troubleshooting steps and assistance.
  • Enerpac may offer specific instructions for inspecting and maintaining the cylinder, including guidance on spare parts or repair services if needed.

How to maintain RCH1003 hollow plunger hydraulic cylinder?

  • Perform regular cleaning of the cylinder to eliminate dirt, debris or contaminants that could impact its functionality.
  • Conduct inspections to identify any indications of leakage, damage or unusual wear on the plunger, seals or other elements of the cylinder.
  • Apply lubrication to the moving parts of the cylinder following the manufacturer's guidelines.
  • Inspect the connections and fittings for tightness and ensure they are free from any damage or signs of wear.

Other Also Viewed

Single Acting Hydraulic Ram, Steel Body, 12 Tons, 10000 PSI
ENERPAC

Single Acting Hydraulic Ram, Steel Body, 12 Tons, 10000 PSI
Model No. RCH120
SKU AC2XLJ
$1,503.07 10% off$1,352.76 /unit (ex. VAT)
Add to Cart
Single-Acting Hollow-Plunger Hydraulic Cylinder, 2.50 Inch Stroke, Steel
ENERPAC

Single-Acting Hollow-Plunger Hydraulic Cylinder, 2.50 Inch Stroke, Steel
Model No. RCH-302
SKU AF2XZG
$2,747.22 10% off$2,472.50 /unit (ex. VAT)
Add to Cart
General Purpose Motor Capacitor Start/run Open Dripproof 1/2 Hp 1725 48 Eff 76.2
DAYTON

General Purpose Motor Capacitor Start/run Open Dripproof 1/2 Hp 1725 48 Eff 76.2
Model No. 103808.00
SKU AF6QTK
$912.32 10% off$821.09 /unit (ex. VAT)
Add to Cart

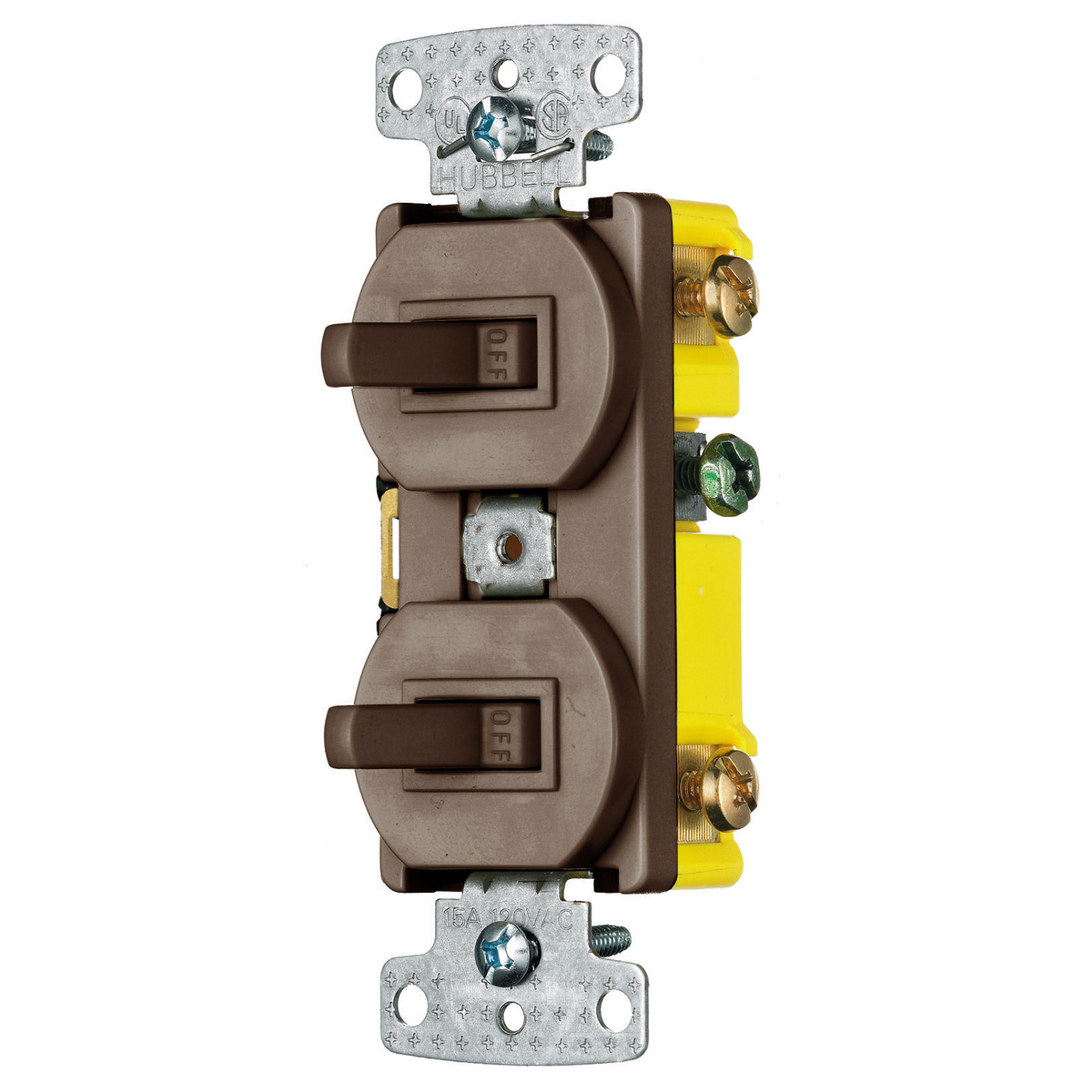

Toggle Switch, 15A, 120VAC, Self Grounding, Side Wired, Brown
