| Item | Transfer Pump |
|---|---|
| Amps | 3A |
| Application | For Highly Corrosive Chemicals, Eliminates Seal Caused Friction Loss, Wear, Contamination And Leakage |
| Cord Length | 6 ft. |
| Cord Type | 3-conductor SJO |
| Design | Gravity-Feed, Requires The Pump Inlet To Be Lower Than Liquid Level |
| Discharge Pipe Size | 1/2" |
| Discharge Pipe Type | NPT |
| Discharge Port Size | 1/2" |
| Discharge Port Type | NPT |
| Flow Rate @ 1 Ft. | 20 GPM |
| Flow Rate @ 18 Ft. | 13 GPM |
| Flow Rate @ 20 Ft. | 11.4 GPM |
| Flow Rate @ 24 Ft. | 8.4 GPM |
| Flow Rate @ 3 Ft. | 19.2 GPM |
| Flow Rate @ 6 Ft. | 18.2 GPM |
| Flow Rate @ 9 Ft. | 17 GPM |
| Frequency | 60 Hz |
| Full Load Current | 3A |
| Gasket Material | FKM |
| Height | 7.3" |
| Housing Material | Glass Filled Polyphenylene |
| Hp | 1/8 hp |
| Impeller Material | Carbon, Glass Filled Polyphenylene Sulfide |
| Inlet Size | 1" |
| Inlet Type | FNPT |
| Intake Pipe Size | 1" |
| Intake Pipe Type | FNPT |
| Length | 11 1/5" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 77°F |
| Max. Discharge Pressure | 12.7 psi |
| Max. Flow Rate | 20 GPM |
| Max. Flow Rate @ 15 Ft Of Head | 14.8 GPM |
| Max. Flow Rate @ 15 Ft. | 14.8 GPM |
| Max. Flow Rate @ 18 Ft Of Head | 13 GPM |
|---|---|
| Max. Flow Rate @ 24 Ft Of Head | 8.4 GPM |
| Max. Flow Rate @ 3 Ft Of Head | 19.2 GPM |
| Max. Flow Rate @ 6 Ft Of Head | 18.2 GPM |
| Max. Flow Rate @ 60 Hz | 20 GPM |
| Max. Flow Rate @ 9 Ft Of Head | 17 GPM |
| Max. Fluid Temp. | 200°F |
| Max. Ft. Of Head | 29.3 ft. |
| Max. Head | 29.3 ft. |
| Max. Outlet Pressure | 12.7 psi |
| Max. Specific Gravity | 1.1 |
| Max. Viscosity | 100 SUS |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Horizontal |
| Motor Type | Permanent Split Capacitor |
| Mounting Orientation | Horizontal |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Overall Height | 7.3" |
| Overall Length | 11.2" |
| Overall Width | 5 1/5" |
| Phase | 1 |
| Rpm | 2850/3450 RPM |
| Series | MD-HC Series |
| Specific Gravity | 1.1 |
| Suction Port | 1" FNPT |
| Temp (f) @ 0 Psig | 200°F |
| Temp (f) @ 10 Psig | 150°F |
| Temp (f) @ 20 Psig | 150°F |
| Temp (f) @ 30 Psig | 150°F |
| Type | Magnetic Drive |
| Voltage | 115/230V AC |
| Watts | 325 W |
| Width | 5 1/5" |
Little Giant 584604 chemical transfer pump is designed to pull up the photographic and plating solutions, brines, acids, alkalis and distilled water from the container and transfer them to the desired location.
| Height (cm) | 16.84 |
|---|---|
| Length (cm) | 33.35 |
| Width (cm) | 19.68 |
| HS Code | 8413702005 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 7.335 |
100 SSU.
| Style | Model | Hp | Voltage | Max. Outlet Pressure | Max. Head | Housing Material | Flow Rate @ 3 Ft. | Flow Rate @ 6 Ft. | Flow Rate @ 9 Ft. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 578603 | 1/25 hp | 115V AC | 7.01 psi | 16.2 ft. | Glass Filled Polyphenylene | 7.6 GPM | 7.1 GPM | 5.9 GPM | $518.61 | |

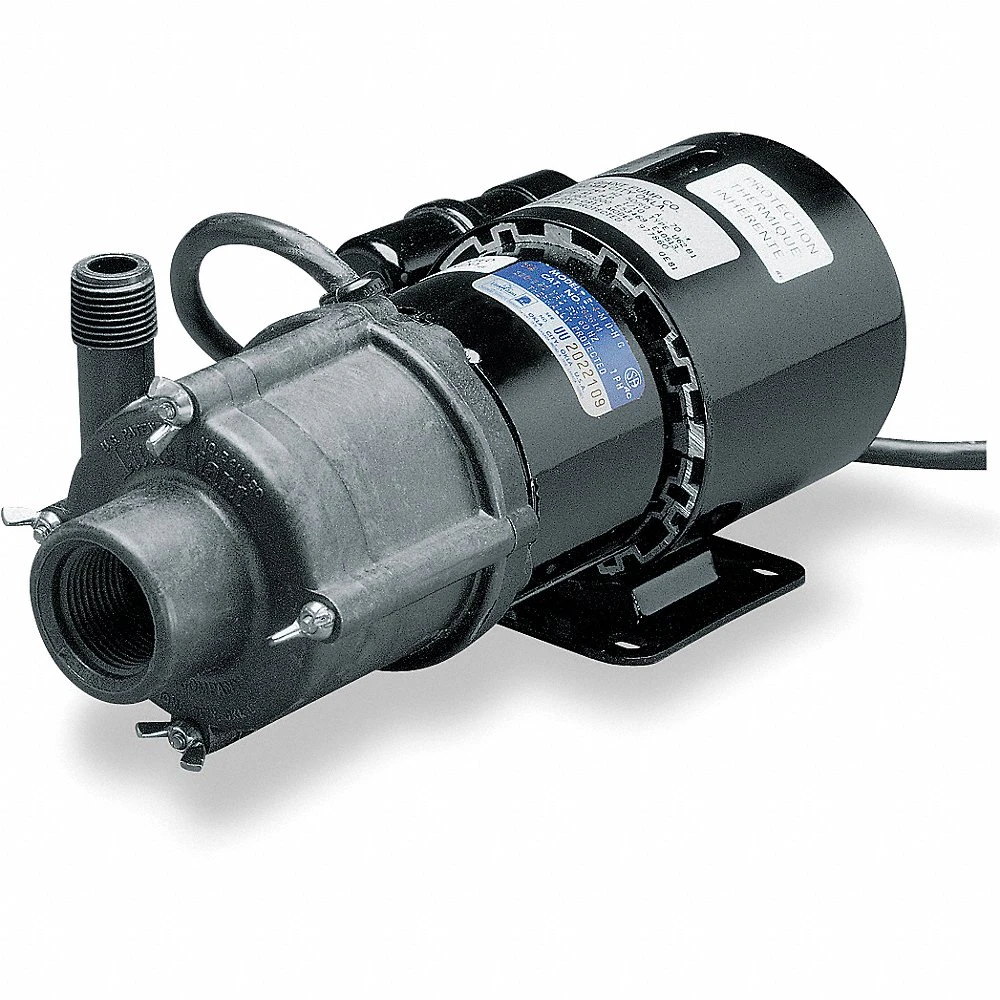

| B | 582603 | 1/10 hp | 115V AC | 10.5 psi | 24.3 ft. | Plastic | 13.5 GPM | 12.8 GPM | 11.8 GPM | $648.29 | |

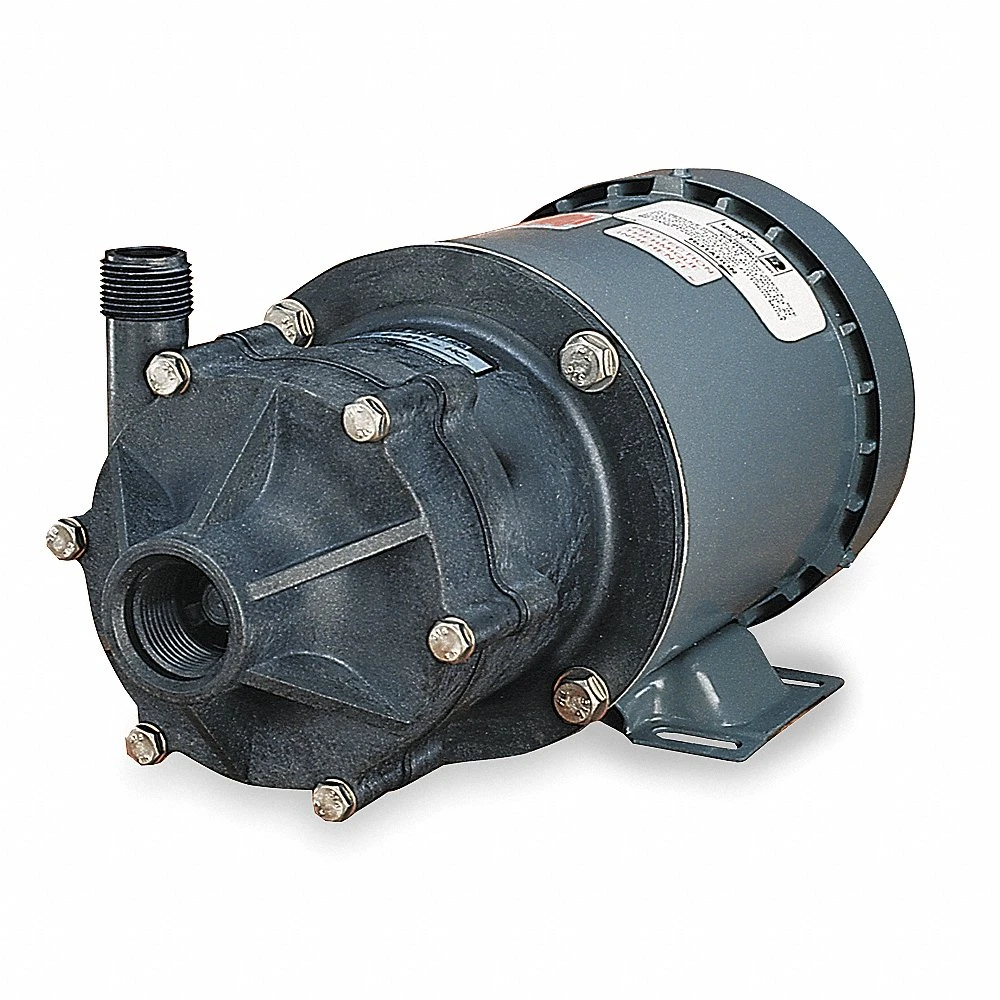

| C | 586604 | 1/2 hp | 115/230V AC | 22 psi | 51 ft. | Glass Filled Polyphenylene | 39 GPM | 38 GPM | 36.2 GPM | $1,617.30 | |

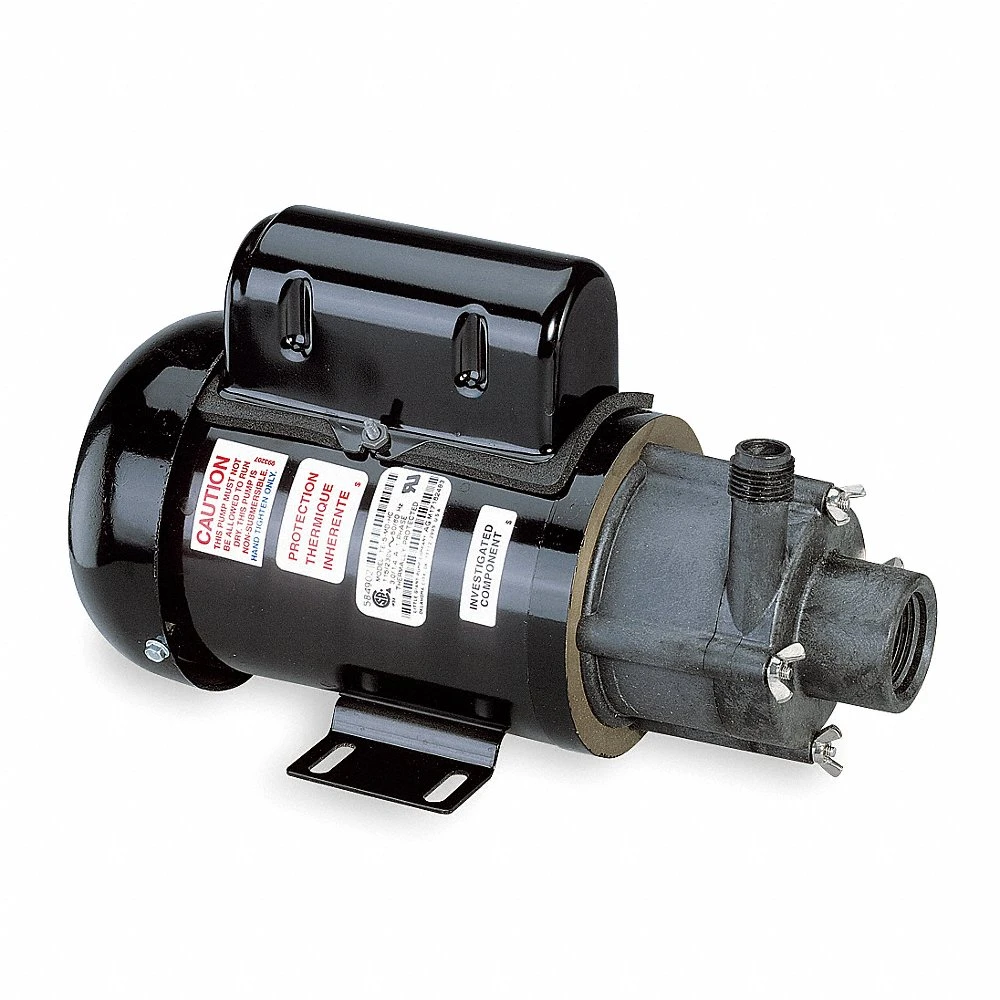

| D | 585604 | 1/3 hp | 115/230V AC | 18 psi | 40.5 ft. | Glass Filled Polyphenylene | 33 GPM | 31.8 GPM | 30.5 GPM | $1,505.72 | |
| C | 586650 | 1/2 hp | 230/460V AC | 22.1 psi | 51 ft. | - | - | - | - | $1,136.95 |
