| Item | Hydraulic Hand Pump |
|---|---|
| Connection Size | 3/8" |
| Connection Type | NPT |
| Cylinder Compatibility | Single Acting |
| Dimension A | 13.3" |
| Dimension B | 21 3/4" |
| Dimension D | 5 1/4" |
| Dimension E | 1.39" |
| Dimension H | 20 3/4" |
| Dimension J | 2.19" |
| Dimension L | 9" |
| Dimension N | 7 3/25" |
| Dimension P | 6.02" |
| Dimension Q | 1 2/5" |
| Dimension S | 0.41" |
| Displacement Per Stroke 1st Stage | 2.4 cu. in. |
| Displacement Per Stroke 2nd Stage | 0.151 cu. in. |
| Handle Material | Fiberglass |
| Housing Material | Aluminum |
| Includes | Oil |
| Max. Flow Rate | 0.151 cu. in./min. |
|---|---|
| Max. Handle Effort | 95 lbs. |
| Max. Operating Pressure | 10000 psi |
| Max. Pressure 1st Stage | 400 psi |
| Max. Pressure 2nd Stage | 10000 psi |
| Number Of Stages | 2 |
| Oil Included | Yes |
| Overall Height | 9" |
| Overall Length | 21.8" |
| Overall Width | 7.1" |
| Piston Stroke | 1" |
| Power Source | Manual |
| Pressure Rating 1st Stage | 400 psi |
| Pressure Rating 2nd Stage | 10000 psi |
| Pump Material | Aluminum |
| Reservoir Capacity | 155 cu. in. |
| Reservoir Material | Glass Filled Nylon |
| Speed Type | Two Speed |
| Type | Manual |
| Valve Operation | Manual |
| Height (cm) | 22.86 |
|---|---|
| Length (cm) | 55.24 |
| Width (cm) | 18.08 |
| HS Code | 8413200000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 7.2225 |
| Style | Model | Number Of Stages | Cylinder Compatibility | Max. Pressure 1st Stage | Max. Pressure 2nd Stage | Displacement Per Stroke 1st Stage | Displacement Per Stroke 2nd Stage | Reservoir Capacity | Handle Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | P141 | 2 | Single Acting | 10000 psi | 10000 psi | 0.055 cu. in. | 0.05 cu. in. | 20 cu. in. | Fiberglass | $957.13 | |
| B | P18 | 1 | Single Acting | 2850 psi | Not Applicable | 0.15 cu. in. | Not Applicable | 22 cu. in. | Fiberglass | $1,405.25 | |
| C | P392ALSS | 2 | Single Acting | 200 psi | 10000 psi | 0.687 cu. in. | 0.151 cu. in. | 55 cu. in. | Fiberglass | $1,666.75 | |
| D | P202 | 2 | Single Acting | 200 psi | 10000 psi | 0.221 cu. in. | 0.055 cu. in. | 55 cu. in. | Fiberglass | $1,126.33 | |
| E | P391 | 2 | Single Acting | 10000 psi | 10000 psi | 0.151 cu. in. | 0.15 cu. in. | 55 cu. in. | Fiberglass | $1,161.81 | |
| F | P464 | 2 | Double Acting | 200 psi | 10000 psi | 7.69 cu. in. | 0.29 cu. in. | - | Fiberglass | $6,117.61 | |

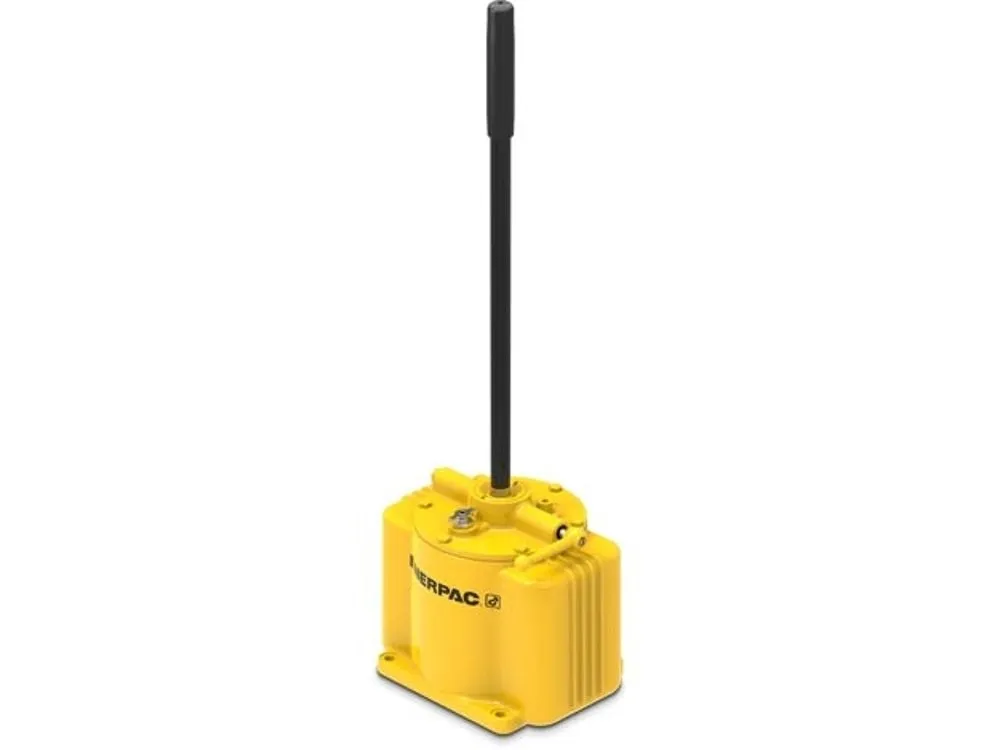

| G | P50 | 1 | Single Acting | 5000 psi | Not Applicable | 0.59 cu. in. | Not Applicable | 200 cu. in. | Fiberglass | $2,144.12 |
