| Item | Line Volt Mechanical Tstat |
|---|---|
| Application | Heat Only |
| Capillary Length | 2 1/4" |
| Color | Gray |
| Contact Rating Resistive @ 120v | 22A |
| Contact Rating Resistive @ 240v | 22A |
| Contact Rating Resistive @ 277v | 22A |
| Control Type | Knob |
| Depth | 1 13/16" |
| Differential | 1.5°F |
| Differential Type | Fixed |
| Enclosure Color | Gray |
| Enclosure Finish | Galvanized |
| Enclosure Material | Steel |
| Enclosure Nema Rating | 1 |
| Full Load Amps @ 120v | 15A , 6A |
| Full Load Amps @ 240v Ac | 3A |
| Height | 4 13/32" |
| Includes | Remote Sensing Bulb |
| Inductive Amps @ 120v | 6A |
| Inductive Amps @ 208v | 3.4A |
| Inductive Amps @ 240v | 3A |
| Locked Rotor Amps @ 120v | 96A |
| Locked Rotor Amps @ 240v | 48A |
| Maximum Control Temperature | 110°F |
| Minimum Control Temperature | 30°F |
| Mounting Direction | Vertical |
|---|---|
| Mounting Type | Flat Surface |
| Number Of Heating Stages | 1 |
| Number Of Poles | 1 |
| Number Of Relay Control Output | 0 |
| Number Of Relay Inputs | 0 |
| Number Of Switches | 1 |
| Overall Depth | 1 13/16" |
| Overall Height | 4 3/8" |
| Overall Width | 2 1/8" |
| Pilot Duty Contacts | 125 VA |
| Pilot Duty Rating | 125 VA @ 24 to 277V AC |
| Remote Sensing Bulb Included | No |
| Remote Sensing Capability | No |
| Resistive Amps @ 208v Ac | 10A |
| Sensing Bulb Length | 1 3/8" |
| Sensor Length | 1 3/8" |
| Sensor Type | Hydraulic Air Coil |
| Switch Action | Open/Close On Rise |
| Switch Type | SPDT |
| Temperature Differential | 1.5°F |
| Temperature Scale | Fahrenheit |
| Thermostat Programmable | No |
| Voltage | 24-277V AC |
| Width | 2 5/32" |
| Standards | CSA LR948/4813 02, UL E6688 |
Johnson Controls A18BAF-1C Penn thermostat has an air coil sensing element that makes it perfect for use with building heaters, central heating units and air conditioners to heat or cool a confined room to a preset temperature. This thermal unit is beneficial in sensing and maintaining temperature in offices, hospitals and restaurants.
| Height (cm) | 11.11 |
|---|---|
| Length (cm) | 4.6 |
| Width (cm) | 5.4 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 0.387 |
1.5 degrees Fahrenheit.
SPDT.
Johnson Controls A18BAF-1C penn thermostat can be mounted vertically to any wall surface.
| Style | Model | Input Voltage | Amps | Switch Action | Switch Type | Voltage | Full Load Amps @ 240v Ac | Height | Mounting Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

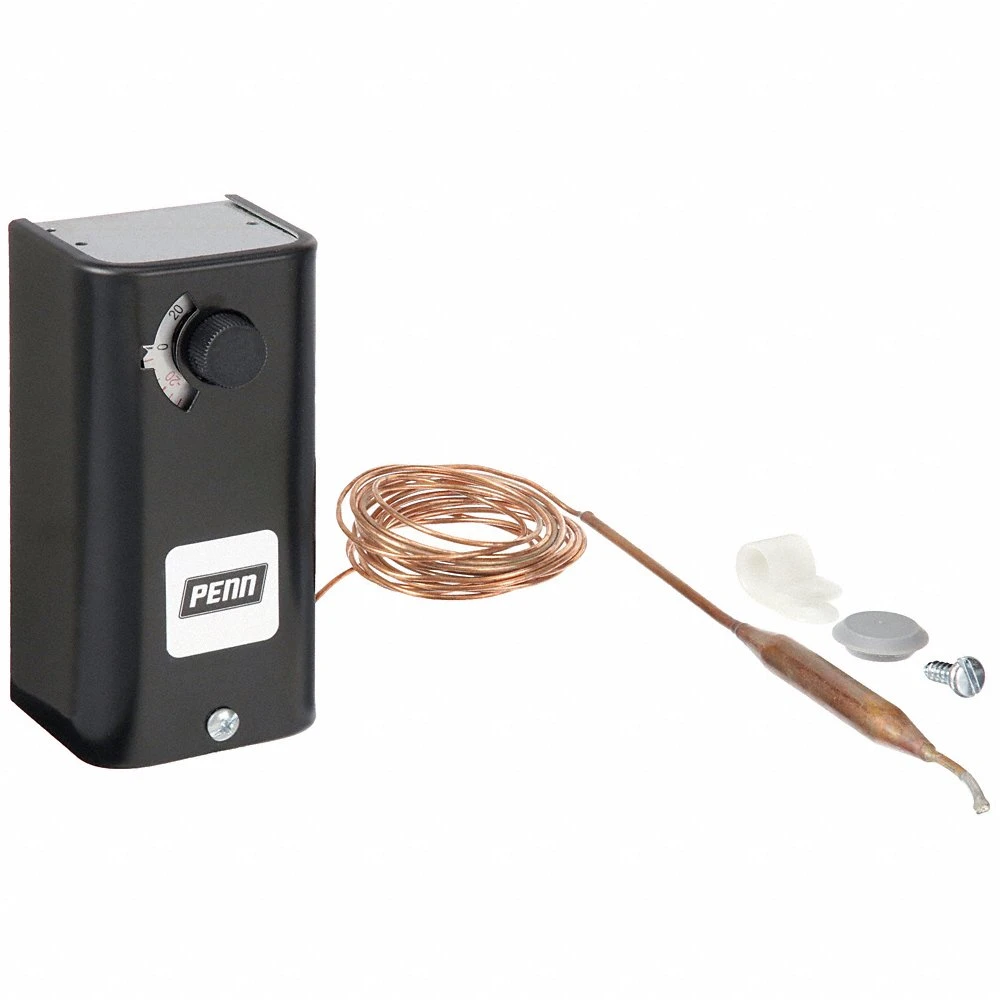

| A | A19ABC-24C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 3/8" | Surface Mount | $215.06 | |

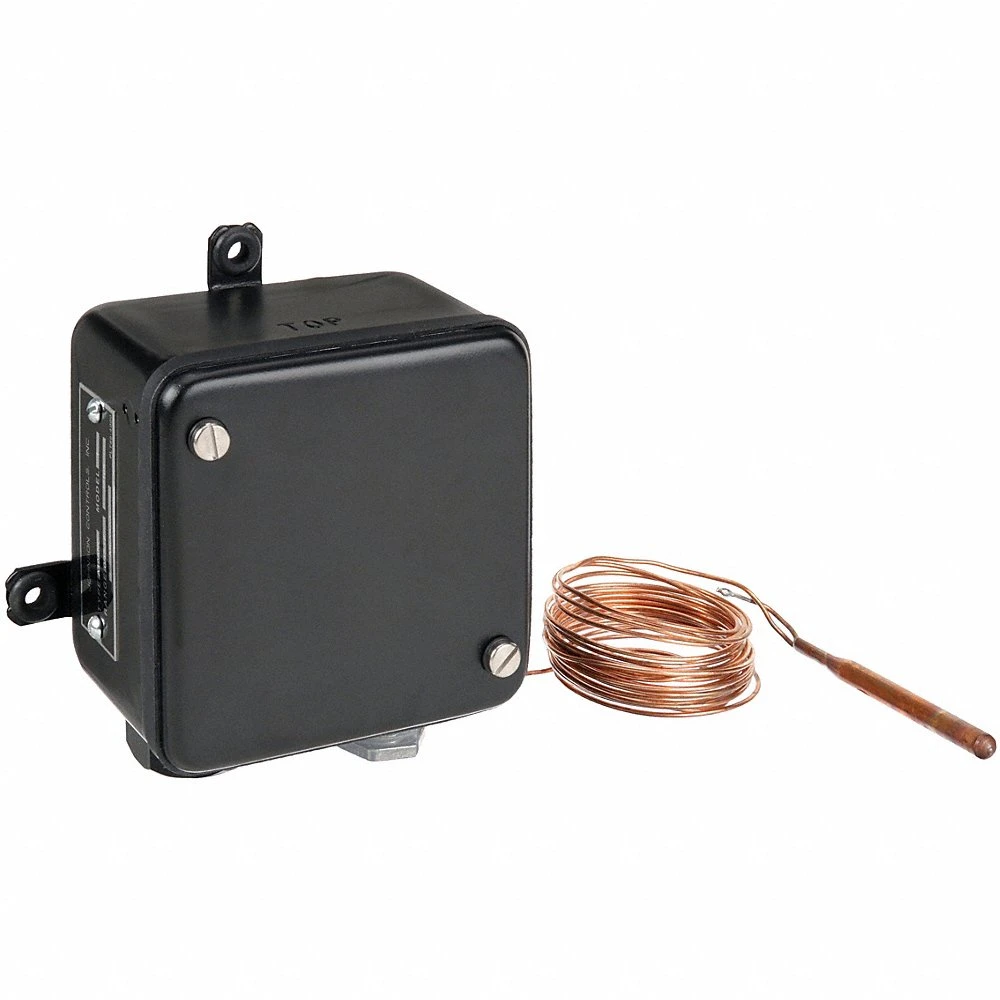

| B | A19ANC-1C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 1/16" | Surface Mount | $584.91 | |
| C | A19BBC-2C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 3/8" | Flat Surface | $268.14 | |
| D | A19AAF-21C | - | - | Close On Fall/Open | - | 120-277V AC | 3A | 4 13/32" | Flat Surface | $257.27 | |
| E | A19AAF-4C | - | - | Open, Close On Rise | SPDT | 120-277V AC | 3A | 4 13/32" | Surface Mount | - | RFQ
|
| D | A19ABA-49C | - | - | Close On Rise | SPST | 120-277V AC | 8A | 4 13/32" | - | $261.64 | |
| D | A19ABC-41C | - | - | Open/Close On Rise | SPDT | 24-600V AC | 6A | 4 13/32" | - | $294.44 |
