| Item | Flowmeter |
|---|---|
| Accuracy | +/-0.5% |
| Chamber Material | Stainless Steel |
| Compatible Flow Material | Chemicals, Water |
| Connection Size | 1" |
| Connection Type | FNPT |
| Display Type | Digital |
| Fits Pipe Size | 1" |
| Fitting Type | FNPT |
| Flow Material | Industrial Chemicals, Most Automotive Fluids Except Gasoline, Mild Acids, Very Thick Fluids |
| Flow Range | 2-20 GPM |
| Flow Rate | 2-20 GPM |
| Flow Rate Range | 2-20 GPM |
| Flowmeter Type | Paddle Wheel |
| Fluid Connection | 1" FNPT |
| Fluid Temp. | -10°F to +130°F |
| Grade | Grade 302 |
| Housing Material | Polypropylene |
| Includes Flow Rate Adjustment Knob | Yes |
| Includes Pressure Gauge | No |
| Includes Totalizer | Yes |
| Master Totalizer | 1000 gal. |
| Max. Flow Rate | 20 GPM |
| Max. Media Temperature | 130°F |
| Max. Operating Pressure | 125 psi |
| Max. Pressure | 100 psi |
|---|---|
| Max. Temp. | 130°F |
| Max. Viscosity | 100 SUS |
| Max. Voltage | 3V DC |
| Media Temp. Range | -10°F to +130°F |
| Media Temperature Range | -10°F to +130°F |
| Media Type | Chemicals, Water |
| Min. Flow Rate | 2 GPM |
| Min. Media Temp. | -10°F |
| Mounting Location | Inline |
| Mounting Orientation | Universal |
| O-ring Material | Buna N |
| Overall Height | 5" |
| Overall Length | 3 1/2" |
| Overall Width | 5.3" |
| Product Type | Digital Meter |
| Pulse Rate | 10 pulses/gal. |
| Rotor Material | Polyphenylene Sulfide |
| Seal Material | Buna N, Viton |
| Shaft Material | Stainless Steel |
| Standards | Ce Certified |
| Type | Liquid |
| Unit Of Measure | Gal., L |
| Wetted Material | Viton |
| Height (cm) | 12.7 |
|---|---|
| Length (cm) | 19.81 |
| Width (cm) | 17.78 |
| HS Code | 9026104000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.35 |
| Style | Model | Connection Type | Max. Flow Rate | Max. Operating Pressure | Max. Viscosity | Overall Length | Flowmeter Type | Seal Material | Unit Of Measure | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

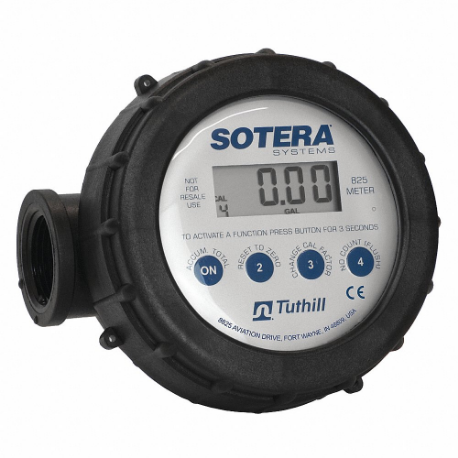

| A | 825X700 | NPT | 20 GPM | 125 psi | 50 SUS | 5.3" | Paddlewheel | Buna N | Gallons, Liters | $546.49 | |

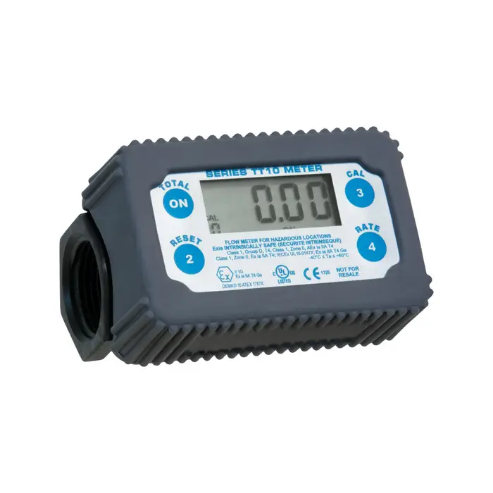

| B | TT10PN | NPT | 35 GPM | 50 psi | 370 SUS | 3" | Turbine | Buna N, Viton | Liters | $444.89 | |

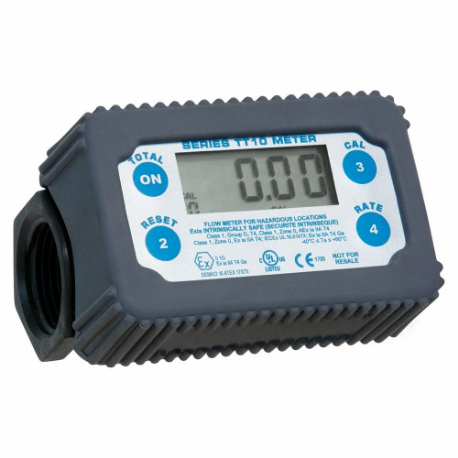

| C | TT10PB | BSPP | 35 GPM | 50 psi | 370 SUS | 3" | Turbine | Buna N, Viton | Gallons, Liters | $397.26 |
