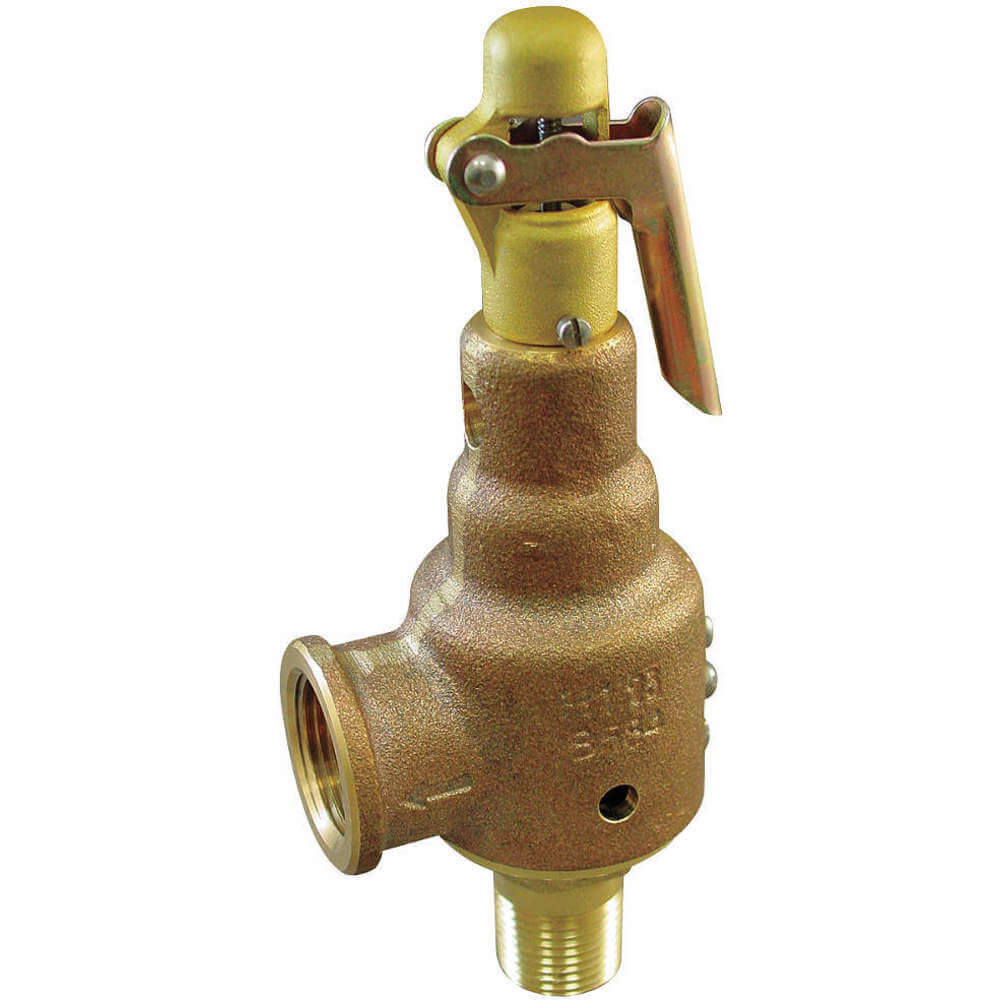

| Item | Safety Relief Valve |
|---|---|
| Application | Air/Gas Compressors, Intercoolers And Aftercoolers, Pressure Reducing Stations, Pressure Vessels-Containing Steam, Steam Boilers And Generators, Tanks, Receivers, Sterilizers And Autoclaves |
| Asme Section Code | Section Viii, Section Xiii |
| Body Material | Bronze |
| Connection Type | MNPT x FNPT |
| Disc Material | Brass |
| Factory Set Pressure | 215 psi |
| For Media | Air, Gas |
| Inlet Connection Size | 3/4" |
| Inlet Size | 3/4" |
| Inlet Type | MNPT |
| Operating Pressure Range | 18 psi to 314 psi |
| Operating Temperature Range | -60°F to +425°F |
| Outlet Size | 1" |
| Outlet Type | FNPT |
|---|---|
| Overall Height | 7 1/2" |
| Overall Length | 3 1/2" |
| Overall Width | 3 1/2" |
| Pressure Rating | 3 psi to 300 psi |
| Pressure Setting Range | 3 psi to 300 psi |
| Product Type | Safety Relief Valve |
| Seat Material | FKM |
| Spring Material | Stainless Steel |
| Temp. Range | -60°F to +406°F |
| Test Lever | Yes |
| Valve Type | Relief Valve |
| Standards | ASME CODE UV |
| Height (cm) | 21.08 |
|---|---|
| Length (cm) | 9.4 |
| Width (cm) | 6.1 |
| HS Code | 8481400000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.1025 |
| Style | Model | Overall Height | Factory Set Pressure | Overall Length | Seat Material | Pressure Rating | Pressure Setting Range | Test Lever | Outlet Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 6010DCE01AAM0025 | 6 1/2" | - | - | EPR | 3 psi to 250 psi | 3 psi to 250 psi | Test Lever Included | 3/4" | $560.03 | |
| A | 6010DCE01AAM0050 | 6 1/2" | 65 psi | - | EPR | 3 psi to 250 psi | 3 psi to 250 psi | Test Lever Included | 3/4" | $560.03 | |
| A | 6010DCE01AAM0100 | 6 1/2" | 100 psi | - | EPR | 3 psi to 250 psi | 3 psi to 250 psi | Test Lever Included | 3/4" | $560.03 | |
| A | 6010DCE01AAM0150 | 6 1/2" | 165 psi | - | EPR | 3 psi to 250 psi | 3 psi to 250 psi | Test Lever Included | 3/4" | $560.03 | |
| A | 6010DCE01AAM0200 | 6 1/2" | 215 psi | - | EPR | 3 psi to 250 psi | 3 psi to 250 psi | Test Lever Included | 3/4" | $560.03 | |
| A | 6010EDE01AAM0025 | 7 1/2" | - | 3 1/2" | EPR | 3 psi to 250 psi | 3 psi to 250 psi | Test Lever Included | 1" | $594.77 | |
| A | 6010EDE01AAM0050 | 7 1/2" | 65 psi | 3 1/2" | EPR | 3 psi to 250 psi | 3 psi to 250 psi | Test Lever Included | 1" | $594.77 |
