ENERPAC RSM-1000 Low Height Hydraulic Cylinder, 98.1 Tons, 0.63 Inch Stroke | AE7NBN 5ZL56

ENERPAC RSM1000 Low Height Hydraulic Cylinder, 98.1 Tons, 0.63 Inch Stroke

Q: How to bleed air from Enerpac hydraulic cylinders?

Attach the cylinder &amp; pump with the appropriate hose assembly while ensuring secure connections.Place the pump at a higher level than the cylinder if possible.Vent the pump reservoir and advance &amp; retract the cylinder with little or no pressure.If the plunger operates smoothly, the air has bled out of the system. If the cylinder retracts in a jerky, spongy or pulsating manner, then continue cycling the pump &amp; cylinder stem till the operation has become smooth.

Item: AE7NBN

Model: RSM1000

Cross Ref: 5ZL56

Check Availability

In Stock.

Get it by Thursday, Feb 12

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Weighing Capacity

We deliver to your doorstep under DAP terms. Customs clearance is for your account

~~$5,043.42~~

10% off

$4,539.08 /unit (ex. VAT)

Add To Cart

Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now

Payment

Delivery

Specifications
Product Details
Shipping Information
Working Mechanism
Features
Compatible Accessories
FAQ′s

Specifications

Item	Hydraulic Cylinder
Base Mounting Hole Counter Bore Depth	14/25"
Base Mounting Hole Counter Bore Dia.	0.812"
Base Mounting Hole Pitch	3"
Base To Advance Port	3/4"
Body Material	Steel
Center Hole Dia.	5"
Collapsed Height	3.38"
Cylinder Bore	5"
Cylinder Type	Low Profile
Effective Push Area	19.63 sq. in.
Extended Height	4"
Finish	Paint
Handle	Yes
Includes	Dust Cap, Female Coupler
Material	Steel

Max. Operating Pressure	10000 psi
Max. Push Capacity	100 ton.
Nominal Capacity	100 ton.
Nominal Stroke Length	5/8"
Oil Capacity	12.27 cu. in.
Oil Capacity Push	12.27 cu. in.
Outside Dia.	7" x 6"
Plunger Dia.	3.63"
Plunger To Mounting Hole	2.94"
Plunger Type	Solid
Promotion Restriction	Not Eligible For Promotion
Retracted Height	3.38"
Saddle Protrusion From Plunger	2/25"
Single Acting/double Acting	Single Acting
Stroke Length	5/8"
Weighing Capacity	100 ton.

Product Details

Enerpac RSM1000 low-height hydraulic cylinder is ideal for the construction, automotive, mining, oil & gas, aerospace and marine industries. This hydraulic cylinder is used for heavy lifting, pushing, positioning and component alignment in diverse settings.

Shipping Information

Height (cm)	22.86
Length (cm)	10.16
Width (cm)	22.86

HS Code	8412210075
Country Of Origin	CN
Weight (kg)	14.4

Working Mechanism

Enerpac RSM1000 hydraulic cylinder operates based on hydraulic power. When pressurised hydraulic fluid is introduced into the cylinder, it pushes the piston, generating a force that allows the cylinder to lift or push heavy loads..

Features

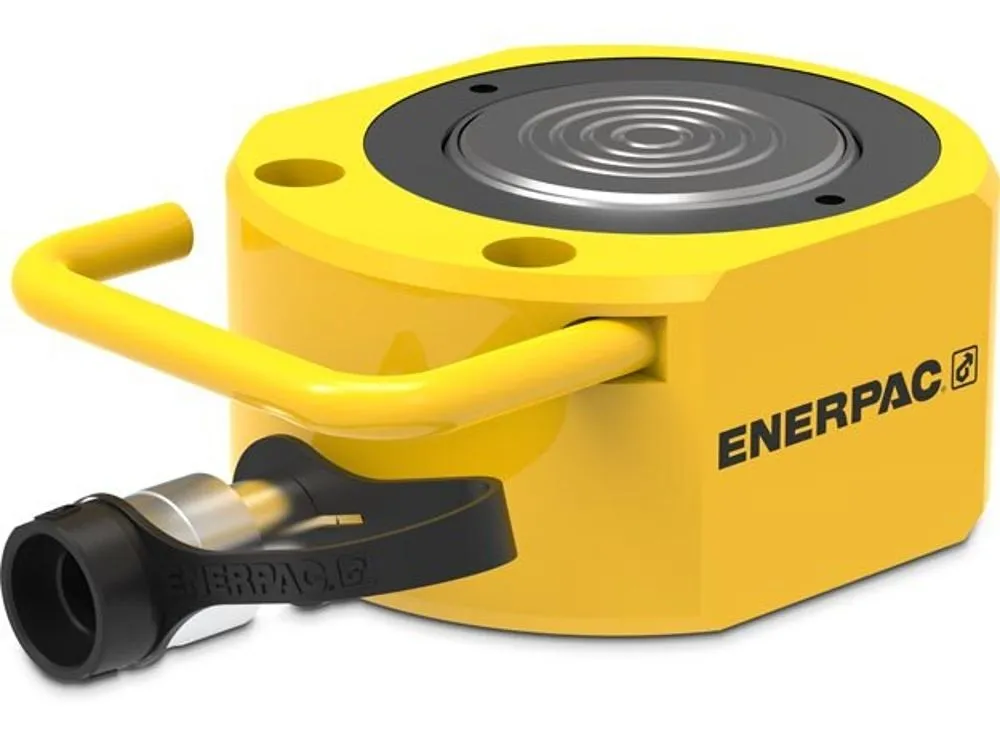

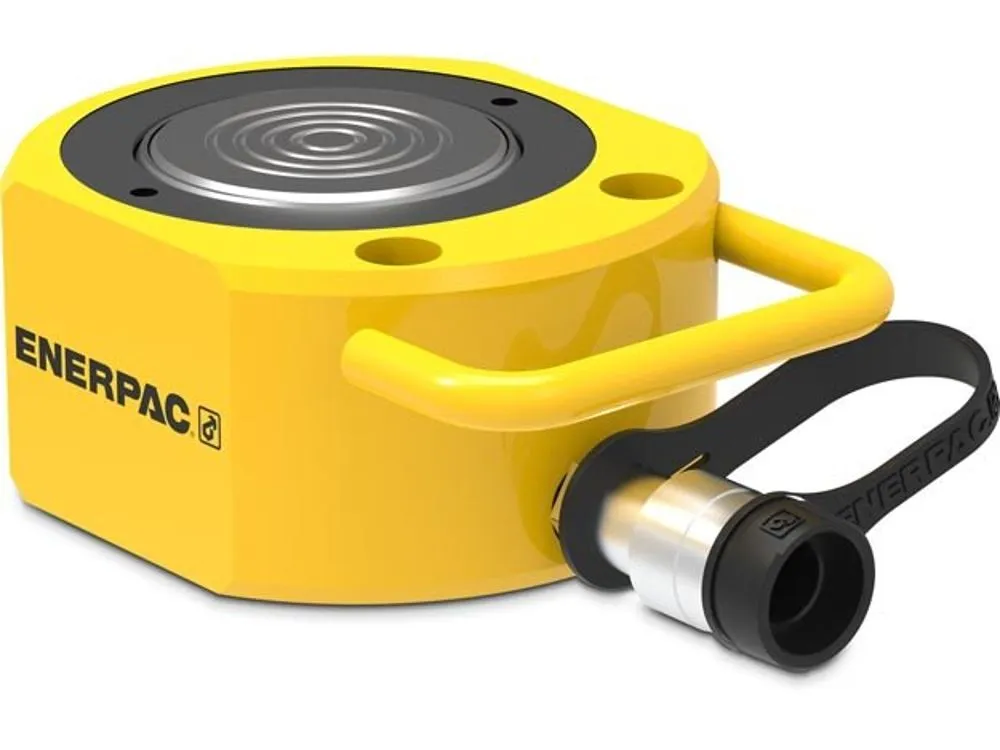

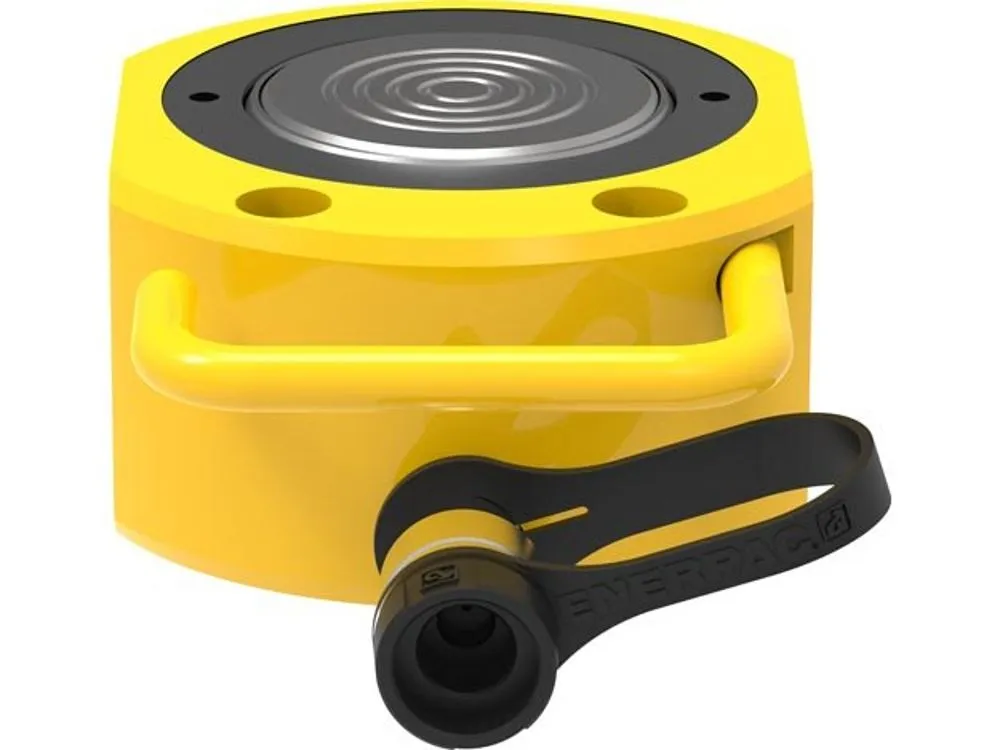

Enerpac RSM1000 low height hydraulic cylinder features a compact & flat design for use in tight spaces and an ergonomic handle for easy carrying.
It is equipped with high-strength chrome-plated steel plungers for enhanced durability and features steel construction with baked enamel finish for corrosion resistance and structural rigidity.
This Enerpac RSM1000 low-height hydraulic cylinder comes with base mounting holes to provide easy & fast fixturing and grooved plunger ends that require no saddle.
It features a single-acting spring return mechanism to improve retraction speed and comes with a CR-400 coupler and dust cap.

Compatible Accessories

Enerpac HC9206C Hose: It is designed to work seamlessly with Enerpac low hydraulic cylinder. With a length of 6 feet and a 0.25-inch inner diameter, it provides the necessary hydraulic fluid transfer capabilities for efficient operation of the cylinder in various applications.
Enerpac GA45GC Gauge Adapter: It enables easy connection of pressure gauges, allowing precise monitoring of hydraulic pressure during operation.

Documentation

Frequently Asked Questions

Are there any maintenance requirements for Enerpac RSM1000 hydraulic cylinder?

Regular maintenance, including checking for leaks, inspecting seals, and ensuring proper lubrication, is recommended to keep the RSM1000 in optimal working condition.

How to bleed air from Enerpac hydraulic cylinders?

Attach the cylinder & pump with the appropriate hose assembly while ensuring secure connections.
Place the pump at a higher level than the cylinder if possible.
Vent the pump reservoir and advance & retract the cylinder with little or no pressure.
If the plunger operates smoothly, the air has bled out of the system. If the cylinder retracts in a jerky, spongy or pulsating manner, then continue cycling the pump & cylinder stem till the operation has become smooth.

What is the stroke length of this hydraulic cylinder?

0.63 inches.

Can Enerpac RSM1000 be used for precise lifting or pushing tasks?

Yes, despite its short stroke length, it delivers significant force output, making it suitable for applications requiring precise and powerful lifting or pushing in restricted areas.
