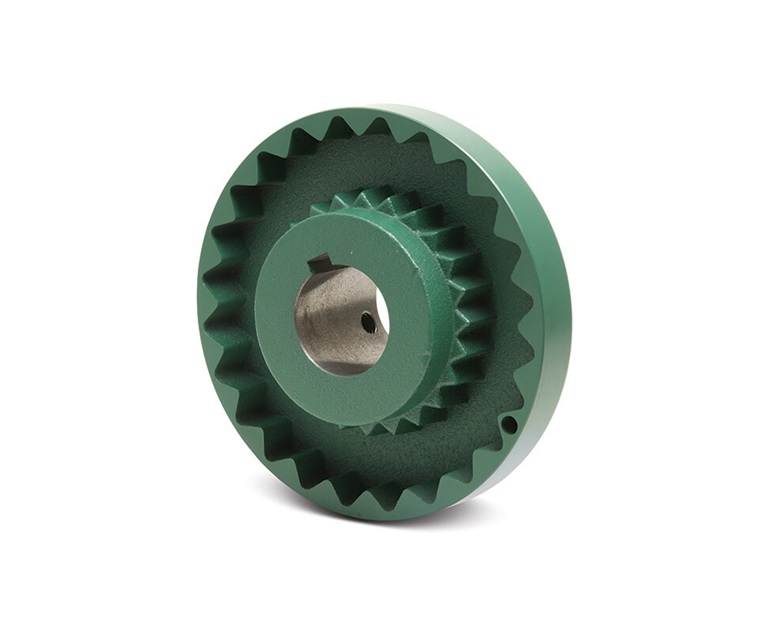

| Item | Flange |
|---|---|
| Body Style | Type-S Flange Close Coupled |
| Bore Dia. | 5/8" |
| Bore Size | 5/8" |
| Bore Tolerance | +0.0005" to +0.0015" |
| Bore Type | Finished Bore |
| Bushing Required | None |
| Component Wr | 0.0471 lbs.-sq. ft. |
| Coupling Size | 7 |
| Flange Length | 11/16" |
| Height | 4.625" |
| Hub | Shaft Hub |
| Hub Dia. | 2 13/16" |
| Hub Length | 1" |
| Ideal For | Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors |
| Keyseat Size (in.) | No KS, Suitable for reboring |
| Length Through Bore | 1.84375" |
| Material | High Strength Cast Iron |
|---|---|
| Max. Angular Gap Misalignment | 0.081" |
| Max. Angular Misalignment | 1 Deg. |
| Max. Parallel Misalignment (in.) | 0.02" |
| Max. Rpm | 5250 rpm |
| Outside Dia. | 4 5/8" |
| Rated Torque | 940 lbs.-in. |
| Set Screw Distance | 3/8" |
| Set Screw Size | 5/16-18 UNC |
| Setscrew | 5/16-18 UNC |
| Setscrew Length | 1 1/4" |
| Setscrew Location | One over KS and @ 90 Degrees |
| Setscrew Torque Requirement | 13 lbs.-in. |
| Sf Hub Length | 1" |
| Weight | 2.6 lbs. |
| Width | 568939" |
| Height (cm) | 5.33 |
|---|---|
| Length (cm) | 12.7 |
| Width (cm) | 12.95 |
| HS Code | 8483608000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 1.755 |
