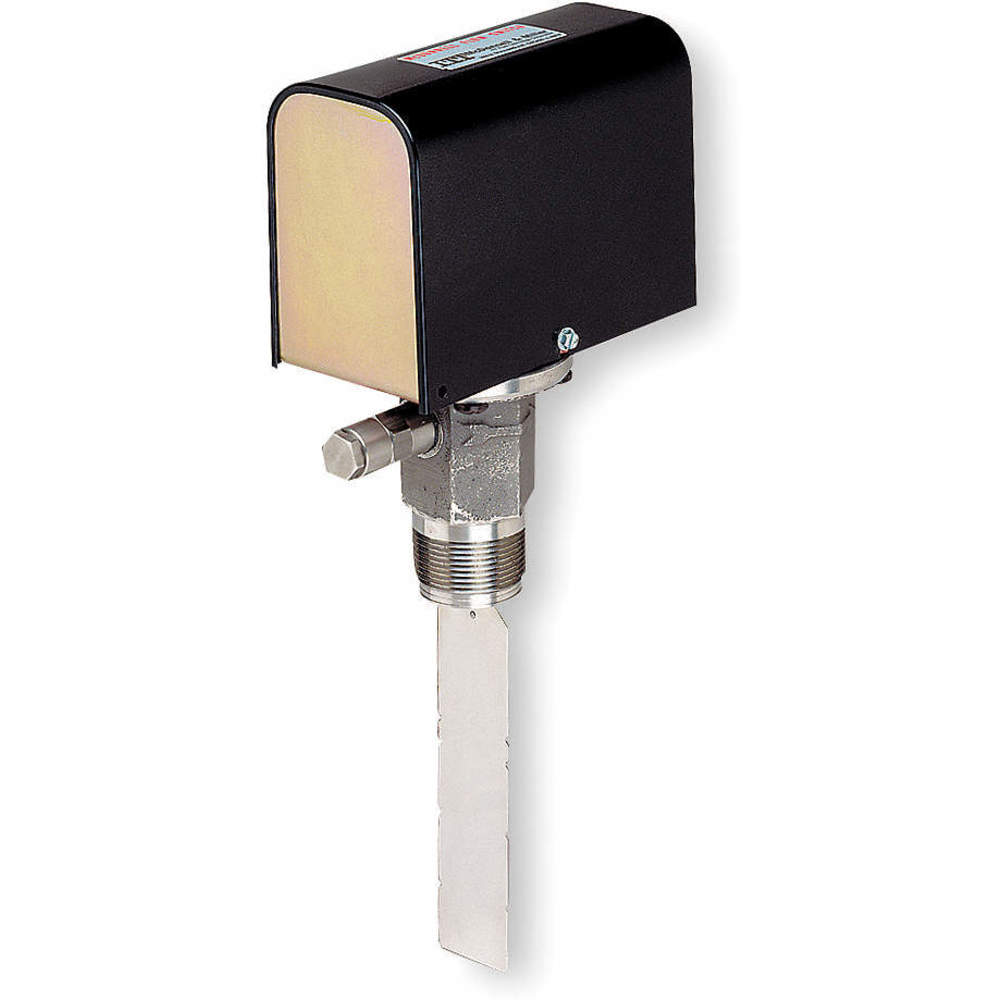

| Item | Flow Switch |
|---|---|
| Application | Large Pipe Applications Including Heating And Hydronic Systems, Air Conditioning, Refrigeration And Process Work |
| Connection | 1 1/4" NPT |
| Connection Size | 1 1/4" |
| Connection Type | NPT |
| Contact Rating (ac) | 22.2A @ 240V (Locked Rotor), 3.7A @ 240V (Full Load), 44.4A @ 120V (Locked Rotor), 7.4A @ 120V (Full Load) |
| Enclosure Rating | NEMA 1 |
| Flow Rate - Maximum | 4.8 GPM |
| Flow Rate - Minimum | 4.8 GPM |
| Flow Rate Range | 4.8 GPM |
| Flow Switch Type | Paddle |
| For Pipe Size | 1 1/4", 16" |
| Housing Material | Brass |
| Housing/body Material | Brass |
| Max. Ambient Temp. | 300°F |
| Max. Flow Gpm | 7.7 GPM |
|---|---|
| Max. Flow Rate | 4.8 GPM |
| Max. Media Temp. | 300°F |
| Max. Pressure | 300 psi |
| Media Temp. Range | 32°F to 300°F |
| Min. Ambient Temp. | 32°F |
| Min. Flow Rate | 4.8 GPM |
| Min. Flow Rate (gpm) | 4.8 GPM |
| Min. Media Temp. | 32°F |
| Set Point Configuration | Adjustable |
| Switch Enclosure | NEMA 1 |
| Switch Type | SPDT |
| Type | Industrial, Heavy Duty Liquid Flow |
| Voltage | 120/240V AC |
| Wetted Material | Brass, Bronze, PTFE, Stainless Steel |
| Height (cm) | 13.72 |
|---|---|
| Length (cm) | 30.23 |
| Width (cm) | 19.3 |
| HS Code | 9032896060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 2.4075 |
| Style | Model | Connection Size | Housing Material | For Pipe Size | Min. Flow Rate | Max. Flow Rate | Switch Enclosure | Max. Pressure | Media Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | FS-200-W | 1" | Steel | - | - | 14.8 GPM | - | 160 psi | - | $1,164.13 | |
| B | FS-204-W | 1" | Aluminum | - | - | - | - | 160 psi | - | $775.34 | |
| C | AF-1 | 8" | Aluminum | - | - | - | NEMA 1 | - | 32°F to 300°F | $603.44 | |
| D | FS4-3 | 1" | Stainless Steel | 1" | 6 GPM | 10.2 GPM | - | 160 psi | 32°F to 300°F | $596.59 | |
| E | FS8-W | 1" | Stainless Steel | 1" | 4.9 GPM | 17.6 GPM | NEMA 4X | 160 psi | 32°F to 225°F | $641.06 | |
| F | FS1 | 1/2" | - | 1/2" | - | - | - | 100 psi | 32°F to 225°F | $970.25 | |
| G | QVE1900U | 1" | Stainless Steel | 1 1/4", 8" | 6 GPM | - | NEMA 4 | - | -4°F to +248°F | $291.83 |
