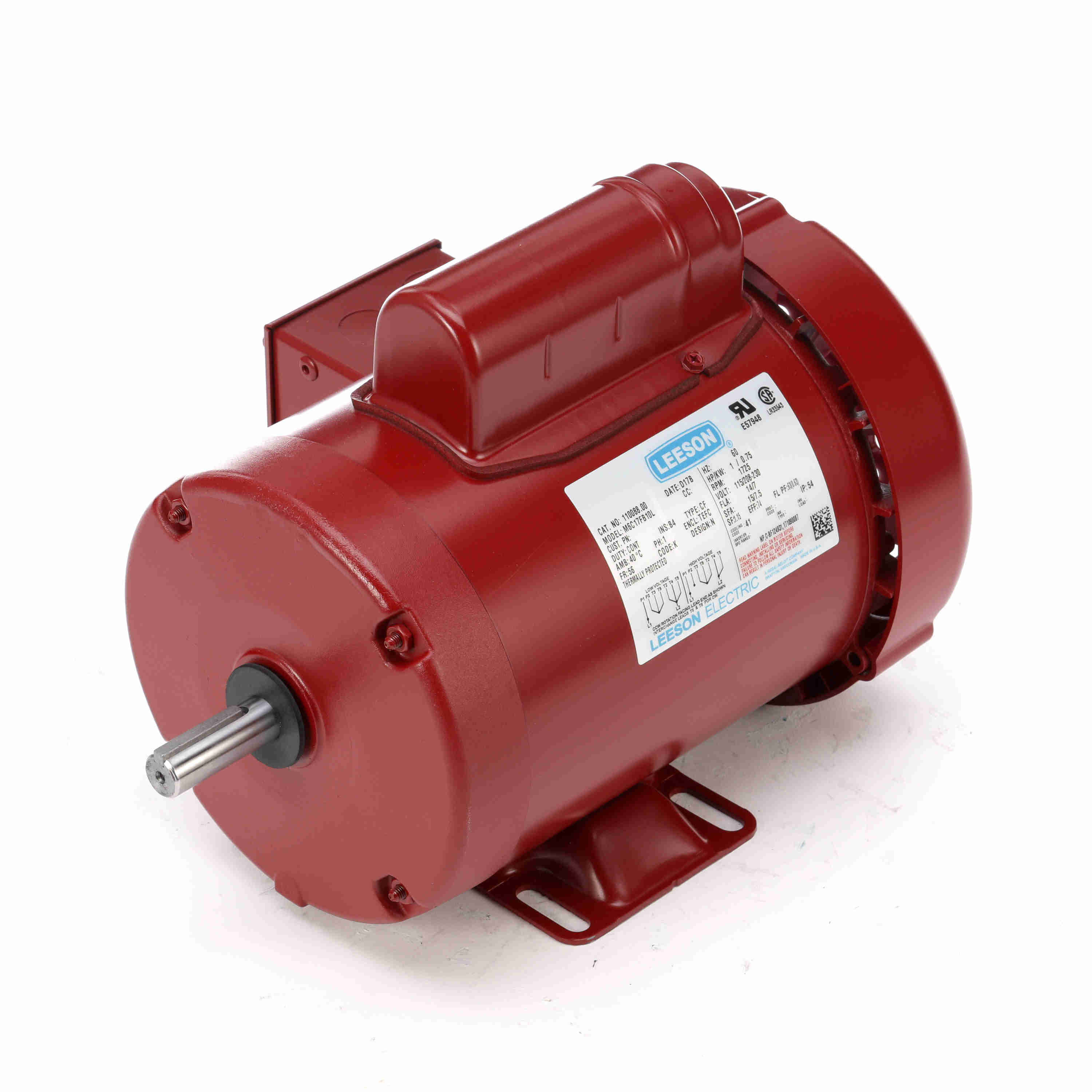

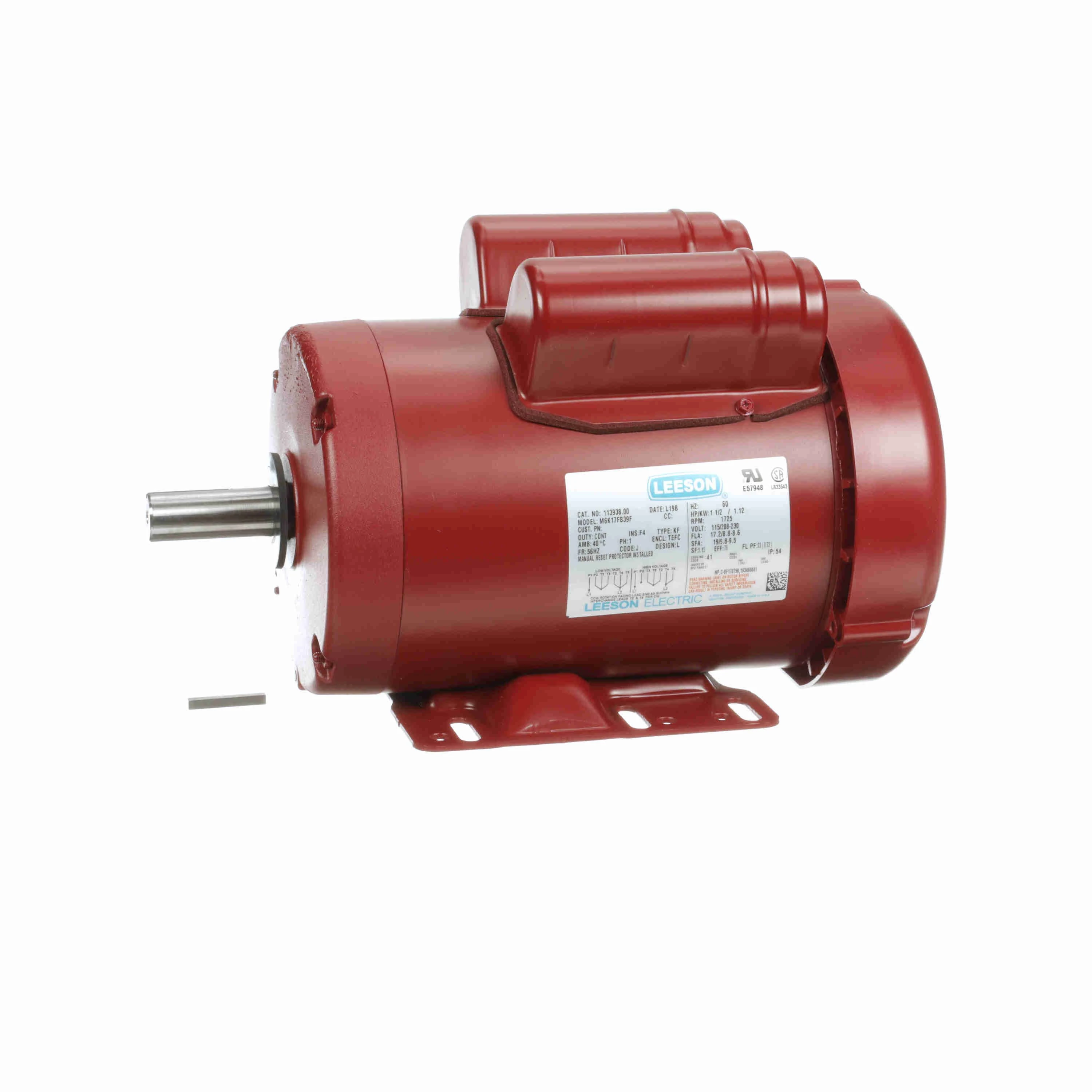

| Item | Farm Duty Motor |
|---|---|
| Amps | 14/7A |
| Application | Farm Duty |
| Assembly | 042545 |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Code | K |
| De Bearing Size | 6203 |
| De Bearing Type | Ball |
| Design Code | No |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Finish | Enamel |
| Frame | 56 |
| Frame Length | 6 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 14/7-7.1A |
| Height | 10 22/25" |
| Hp | 1 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | K |
| Kw | 0.75 kW |
| Length | 14 11/25" |
| Length Less Shaft | 10 1/8" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1725 RPM |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | High Torque |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | N |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 74% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 0.75 kW |
| Overall Length | 12" |
| Packaging | B |
| Phase | 1 |
| Power Factor | 63 |
| Resistance Main | 1.8 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Extension | 1.88 |
| Shaft Length | 1 7/8" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115V |
| Width | 10 11/25" |
| Standards | CSA (LR2025), UL (E49747) |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 36.68 |
| Width (cm) | 26.52 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 14.85 |
| Style | Model | Voltage | Hp | Nameplate Rpm | Frame | Motor Application | Motor Design | Insulation Class | Service Factor | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

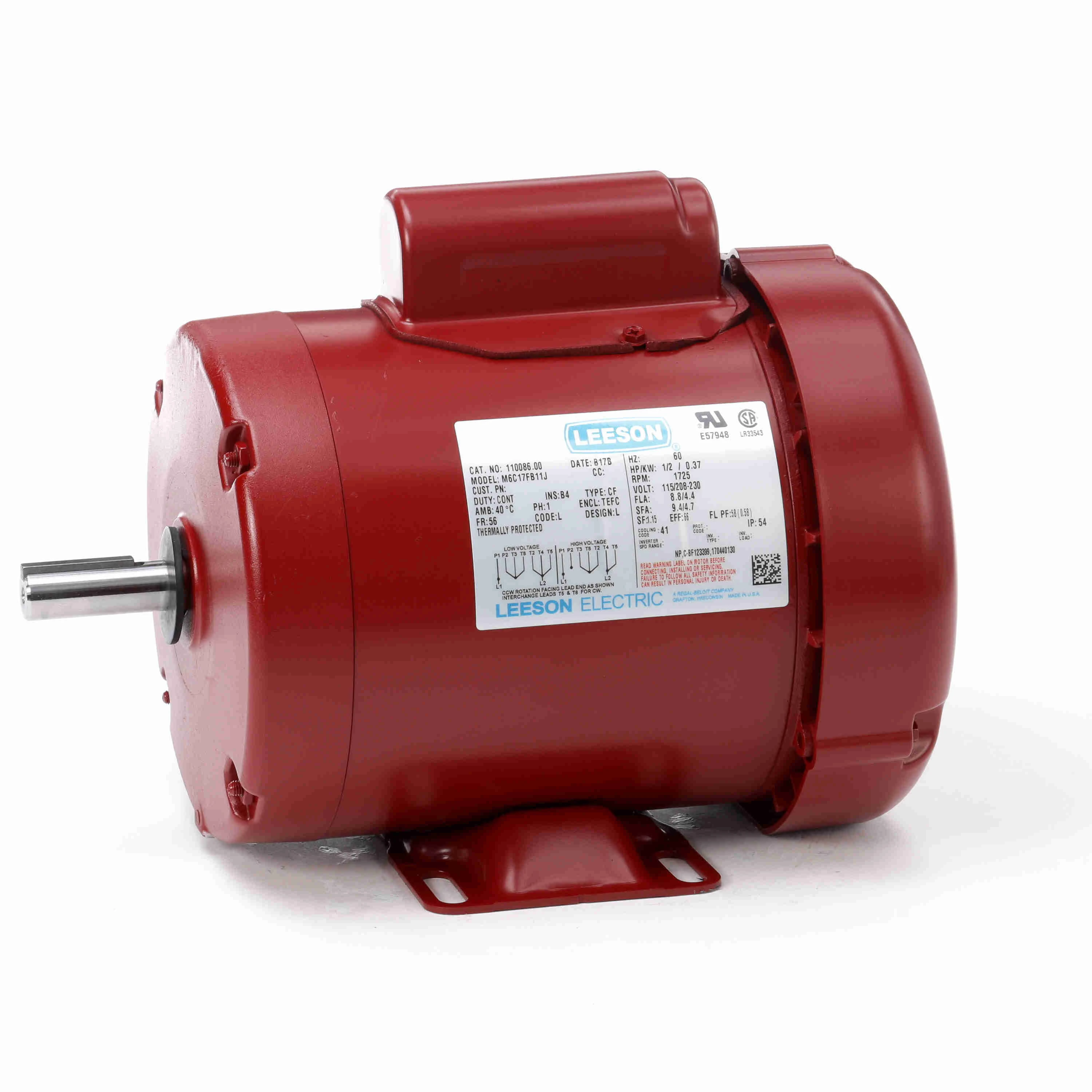

| A | 110086.00 | 115/208-230V | 1/2 hp | 1725 RPM | 56 | Farm Duty | Capacitor Start | Class B | 1.15 | $382.33 | |
| B | 110087.00 | 115V | 3/4 hp | 1725 RPM | 56 | Farm Duty | Capacitor Start | Class B | 1.15 | $655.88 | |

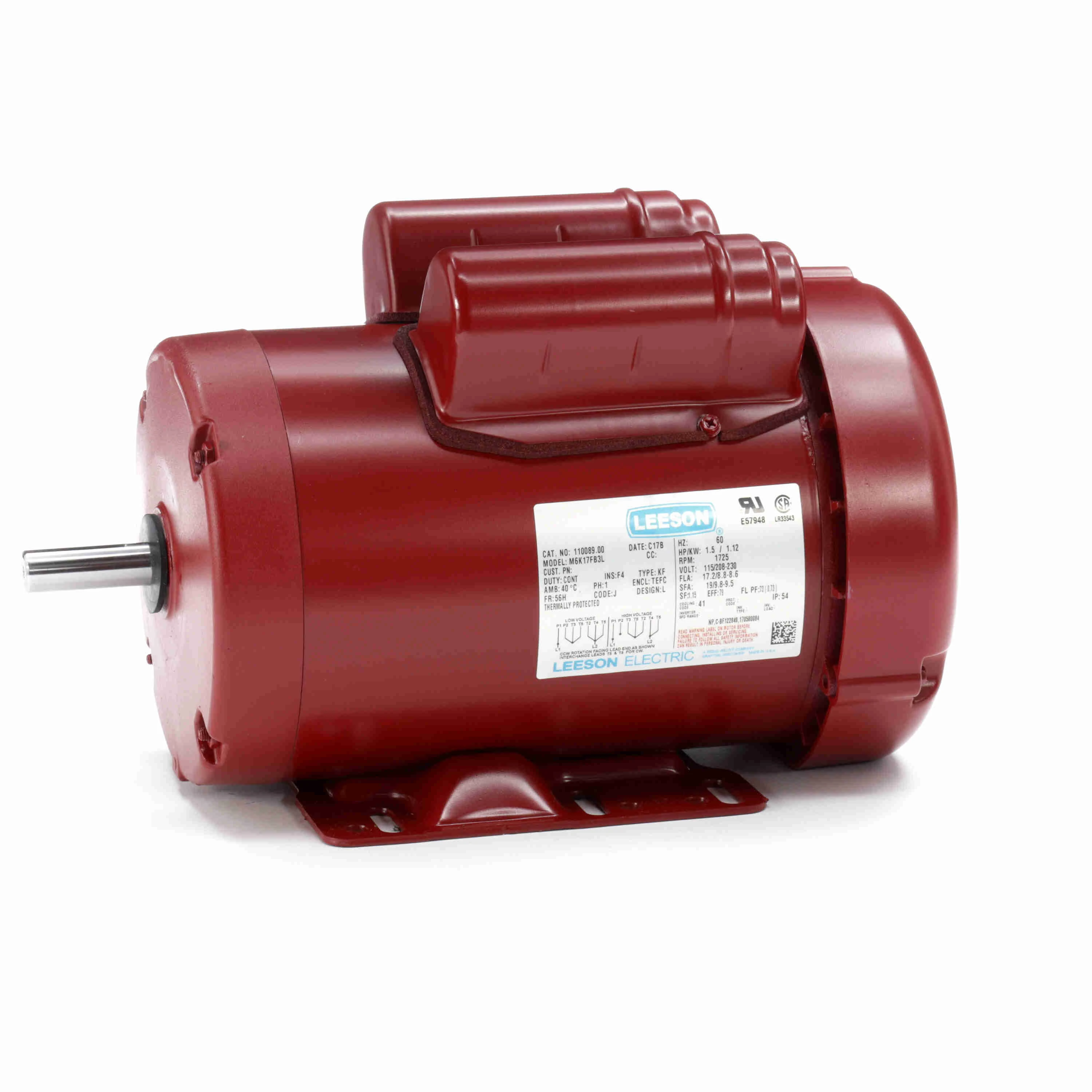

| C | 110089.00 | 115/208-230V | 1 1/2 hp | 1725 RPM | 56H | Farm Duty | Capacitor Start/Run | Class F | 1.15 | $1,122.20 | |

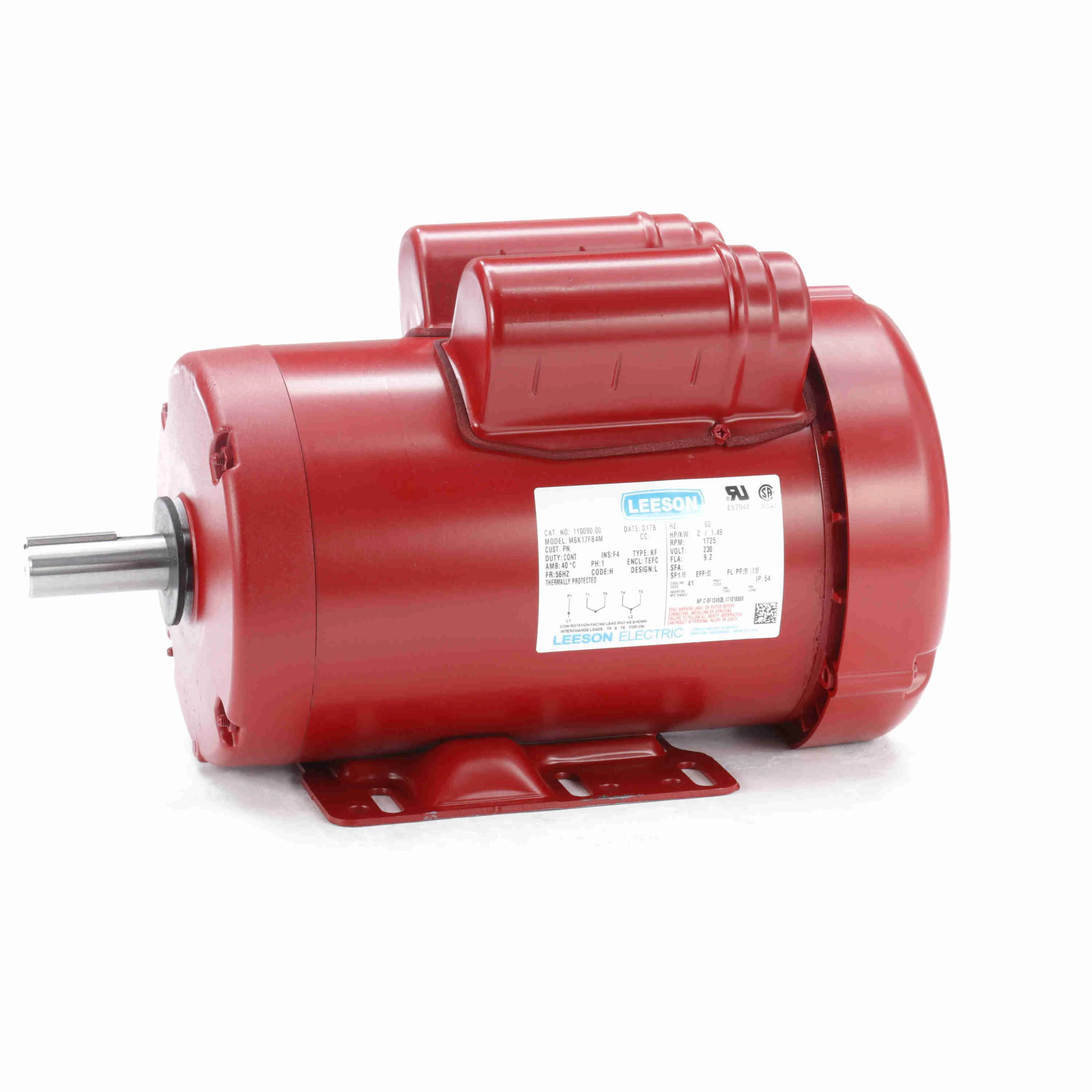

| D | 110090.00 | 230V | 2 hp | 1725 RPM | 56HZ | Farm Duty | Capacitor Start/Run | Class F | 1.15 | $1,333.72 | |

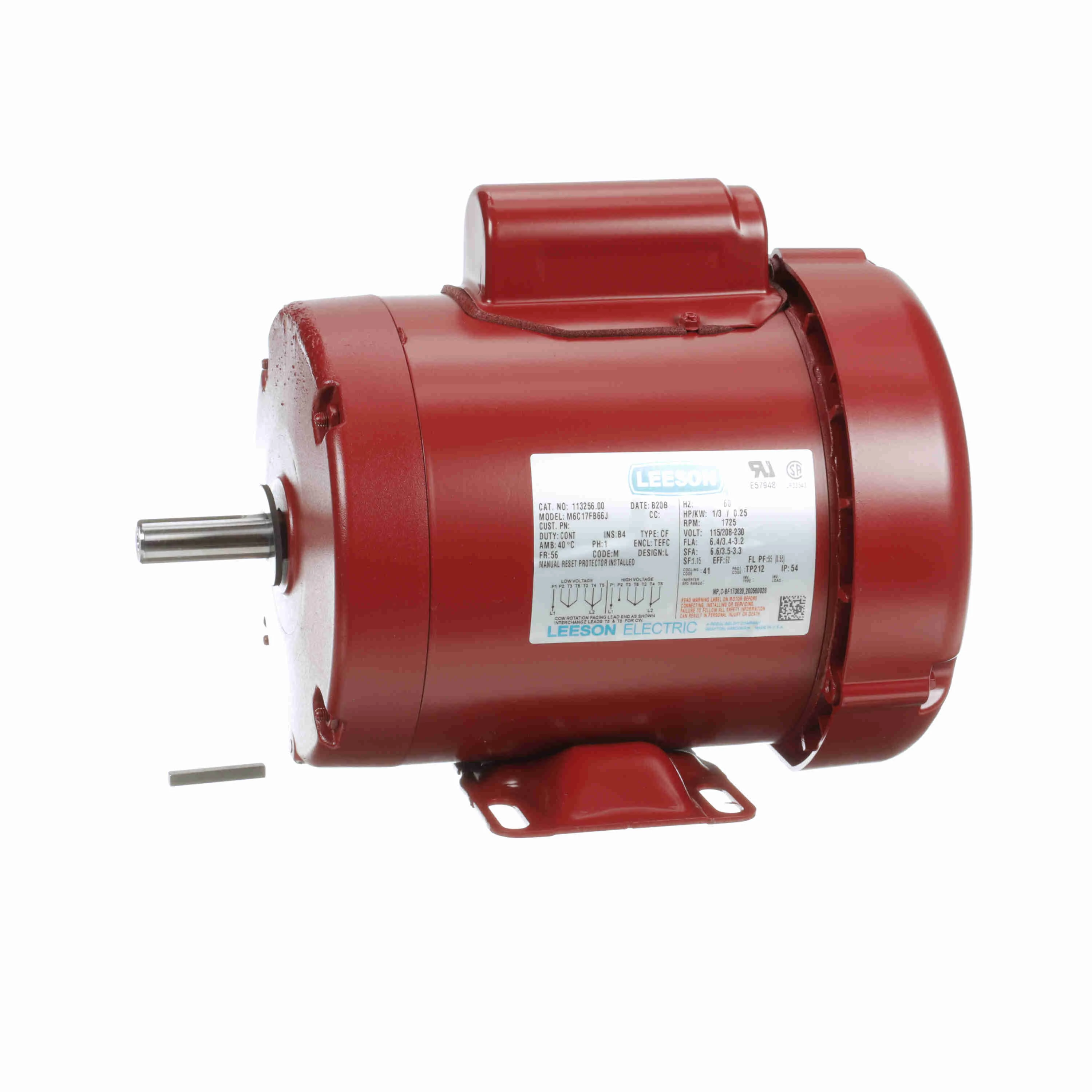

| E | 113256.00 | 115/208-230V | 33/100 hp | 1725 RPM | 56 | Farm Duty | Capacitor Start | Class B | 1.15 | $799.12 | |
| F | 113938.00 | 115/208-230V | 1 1/2 hp | 1725 RPM | 56HZ | Farm Duty | Capacitor Start/Run | Class F | 1.15 | $632.36 | |

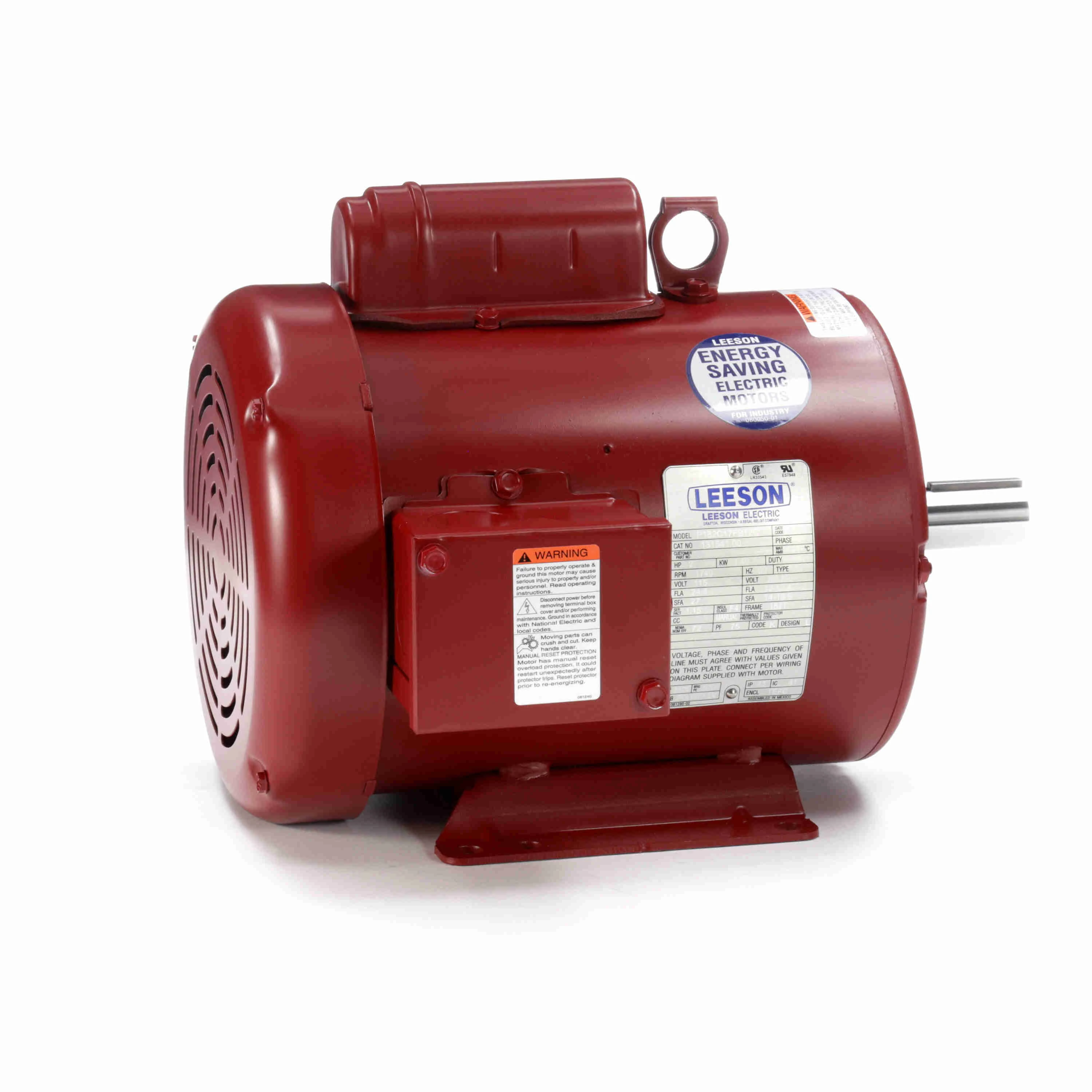

| G | 131541.00 | 115/208-230V | 2 hp | 1740 RPM | 182T | Farm Duty | Capacitor Start | Class F | 1.15 | $1,382.01 |
