| Item | Hydraulic Hand Pump |
|---|---|
| Connection Size | 3/8" |
| Connection Type | NPT |
| Cylinder Compatibility | Single Acting |
| Dimension P | 4 19/25" |
| Dimension S | 0.33" |
| Dimension T | 2.93" |
| Displacement Per Stroke 1st Stage | 1 cu. in. |
| Displacement Per Stroke 2nd Stage | 0.15 cu. in. |
| Handle Material | Steel |
| Housing Material | Steel |
| Includes | Oil |
| Max. Flow Rate | 0.15 cu. in./min. |
| Max. Handle Effort | 77 lbs. |
| Max. Operating Pressure | 10000 psi |
| Max. Pressure 1st Stage | 500 psi |
|---|---|
| Max. Pressure 2nd Stage | 10000 psi |
| Number Of Stages | 2 |
| Oil Included | Yes |
| Overall Height | 7.7" |
| Overall Length | 23.5" |
| Overall Width | 5.9" |
| Power Source | Manual |
| Pump Material | Steel |
| Reservoir Capacity | 250 cu. in. |
| Reservoir Material | Steel |
| Speed Type | Two Speed |
| Type | Manual |
| Valve Operation | Manual |

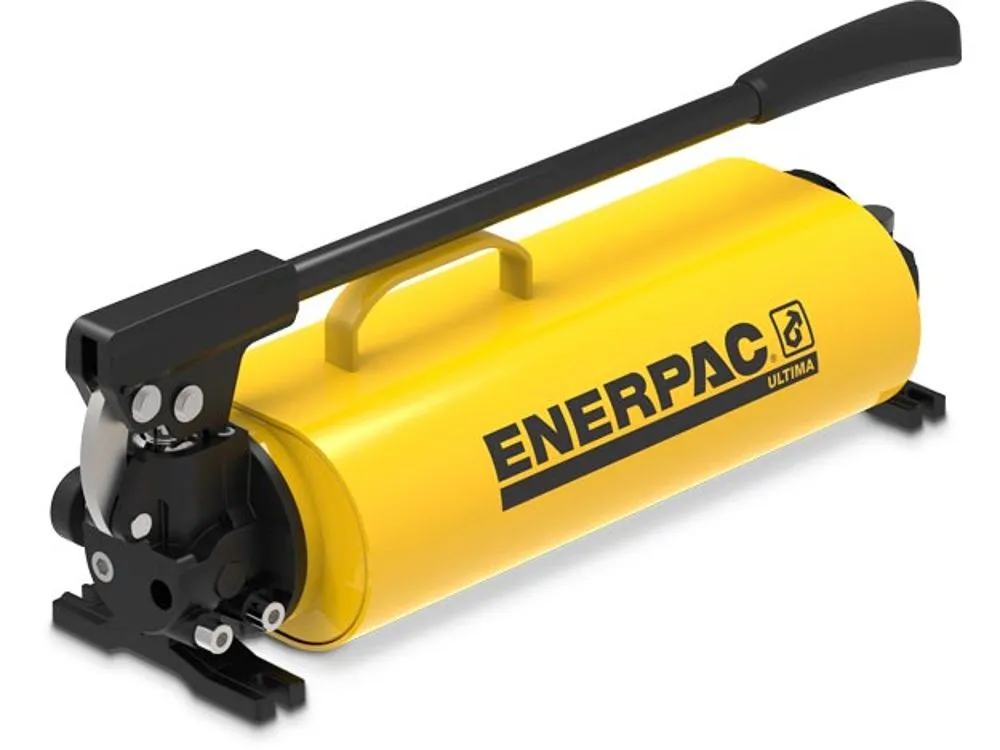

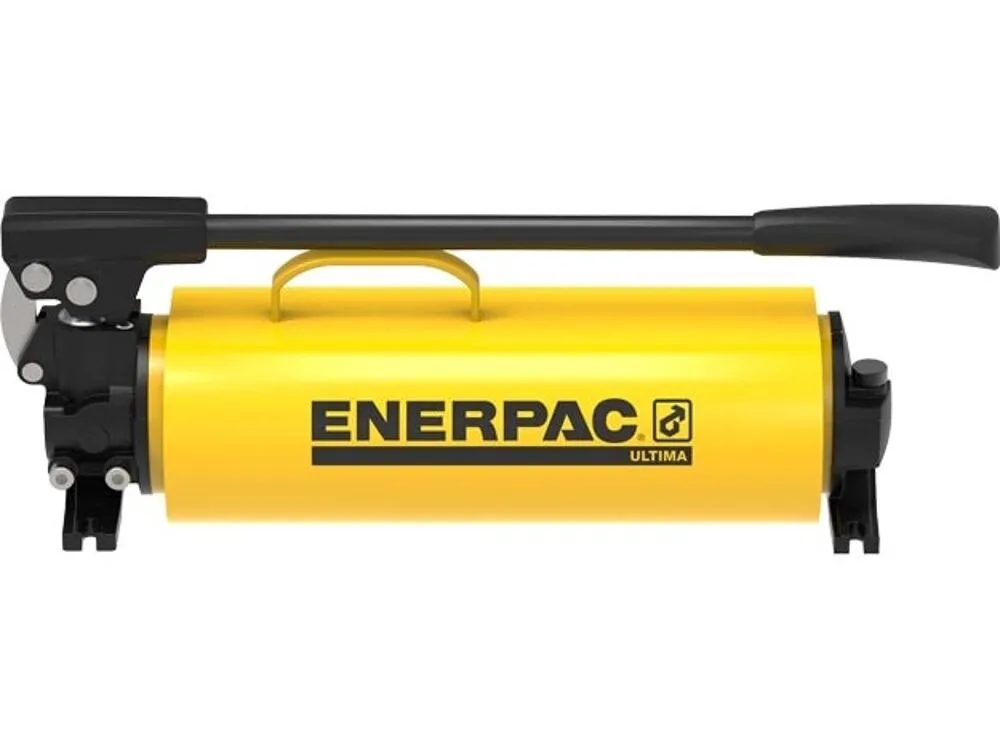

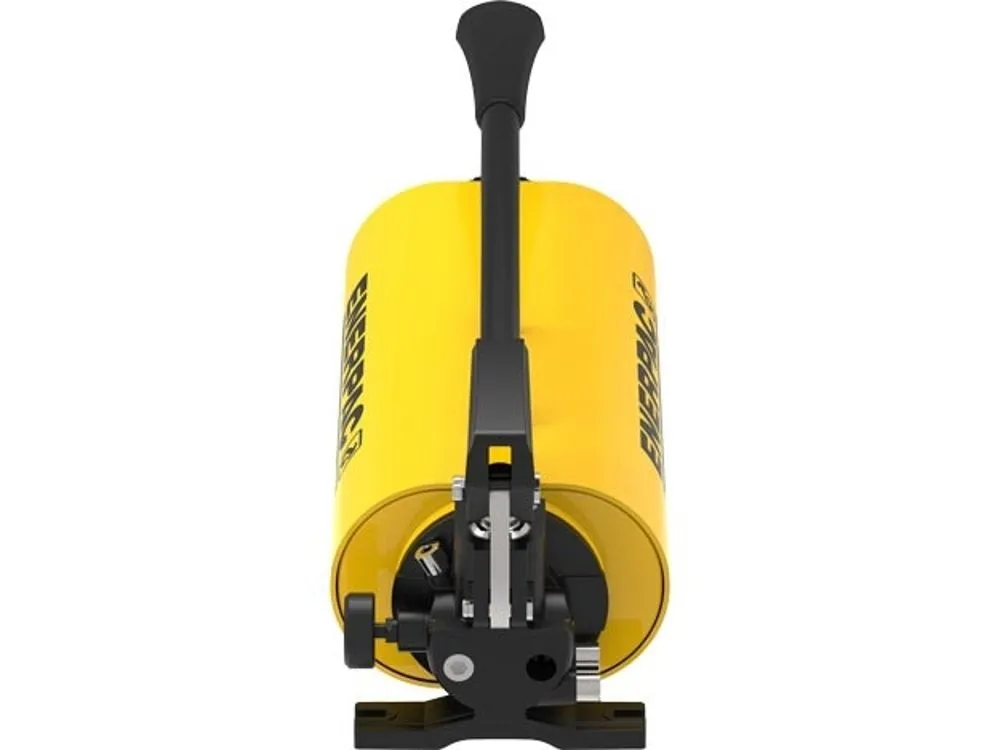

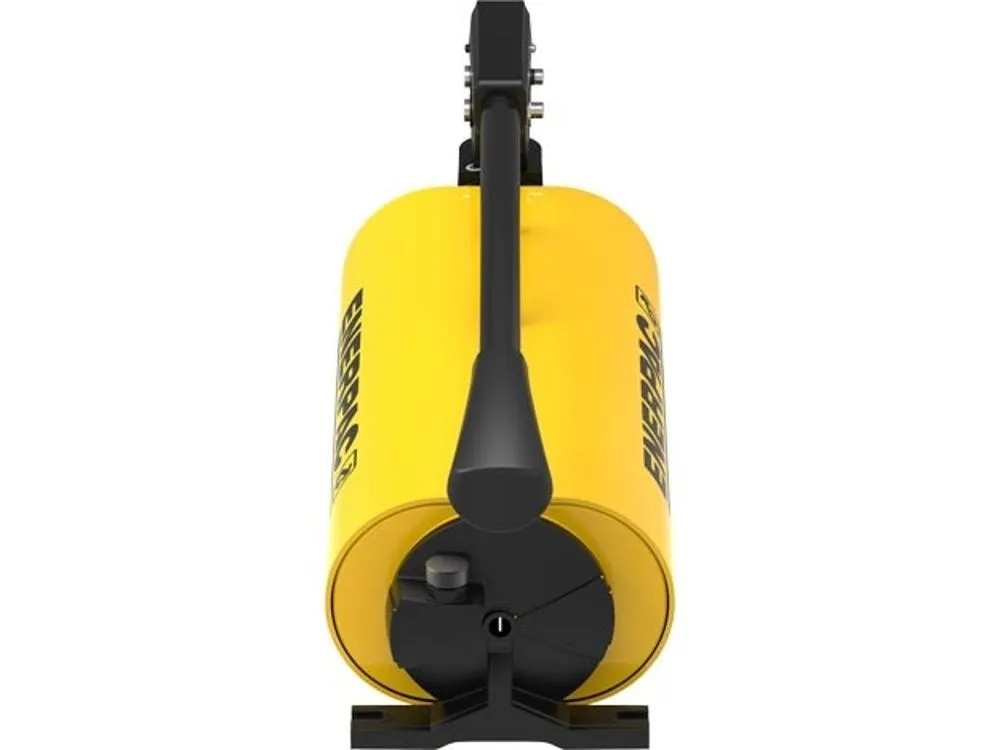

Enerpac P801 hydraulic hand pump is used in various maintenance & repair tasks and industrial applications that require portable hydraulic power. This hydraulic hand pump is operated manually using hands where electricity or fuel is not available for power sourcing.
| Height (cm) | 19.43 |
|---|---|
| Length (cm) | 59.69 |
| Width (cm) | 17.6 |
| HS Code | 8413200000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 15.687 |
Two stage pumps, such as Enerpac P802 hand pump, are capable of switching two speed configurations depending upon the application requirement. Two stage hand pumps deliver higher flow rates until the cylinder starts working.
These hand pumps convert mechanical energy into hydraulic energy using hydraulic fluid under pressure. The pressure is generated by moving the pumps handle.
Two stage pumps, such as Enerpac P802 hand pump, are capable of switching two speed configurations depending upon the application requirement. Two stage hand pumps deliver higher flow rates until the cylinder starts working.
Regular checks of fluid levels, seals and connections should be performed to ensure that the pump is functioning properly.
These hand pumps convert mechanical energy into hydraulic energy using hydraulic fluid under pressure. The pressure is generated by moving the pumps handle.
Enerpac P801 Ultima hydraulic hand pump can be operated at pressures up to 10000 psi and usable oil capacities up to 250 cubic inches.
| Style | Model | Number Of Stages | Cylinder Compatibility | Max. Pressure 1st Stage | Max. Pressure 2nd Stage | Displacement Per Stroke 1st Stage | Displacement Per Stroke 2nd Stage | Reservoir Capacity | Handle Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | P141 | 2 | Single Acting | 10000 psi | 10000 psi | 0.055 cu. in. | 0.05 cu. in. | 20 cu. in. | Fiberglass | $957.13 | |
| B | P18 | 1 | Single Acting | 2850 psi | Not Applicable | 0.15 cu. in. | Not Applicable | 22 cu. in. | Fiberglass | $1,405.25 | |

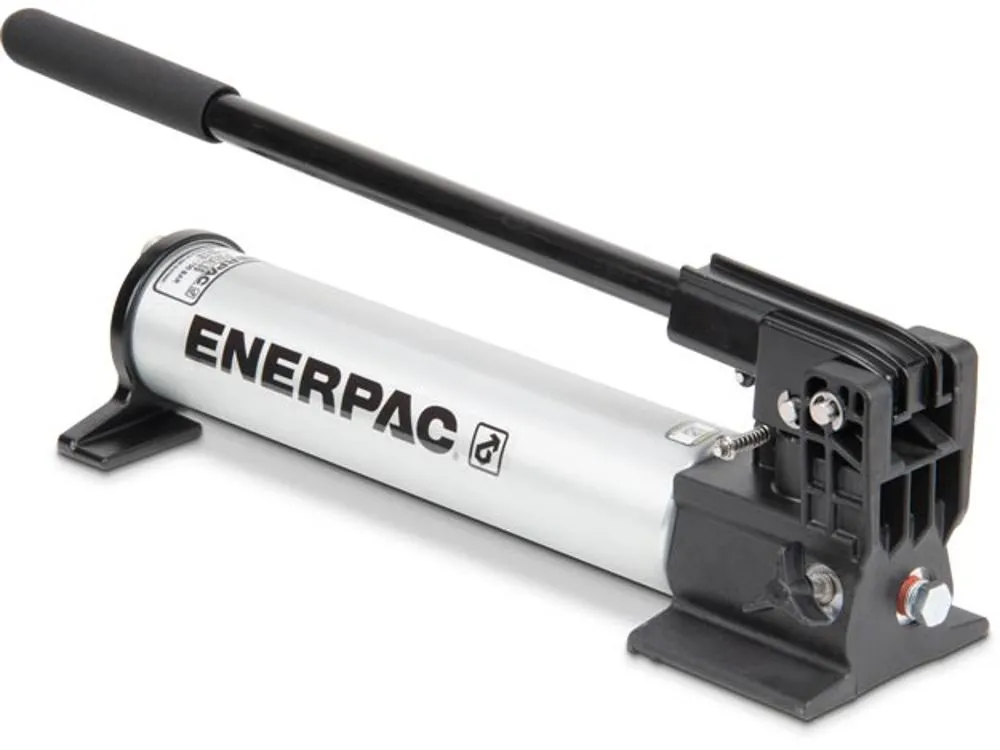

| C | P392ALSS | 2 | Single Acting | 200 psi | 10000 psi | 0.687 cu. in. | 0.151 cu. in. | 55 cu. in. | Fiberglass | $1,666.75 | |
| D | P802 | 2 | Single Acting | 400 psi | 10000 psi | 2.4 cu. in. | 0.151 cu. in. | 155 cu. in. | Fiberglass | $2,079.49 | |
| E | P202 | 2 | Single Acting | 200 psi | 10000 psi | 0.221 cu. in. | 0.055 cu. in. | 55 cu. in. | Fiberglass | $1,126.33 | |
| F | P391 | 2 | Single Acting | 10000 psi | 10000 psi | 0.151 cu. in. | 0.15 cu. in. | 55 cu. in. | Fiberglass | $1,161.81 | |
| G | P464 | 2 | Double Acting | 200 psi | 10000 psi | 7.69 cu. in. | 0.29 cu. in. | - | Fiberglass | $6,117.61 |
