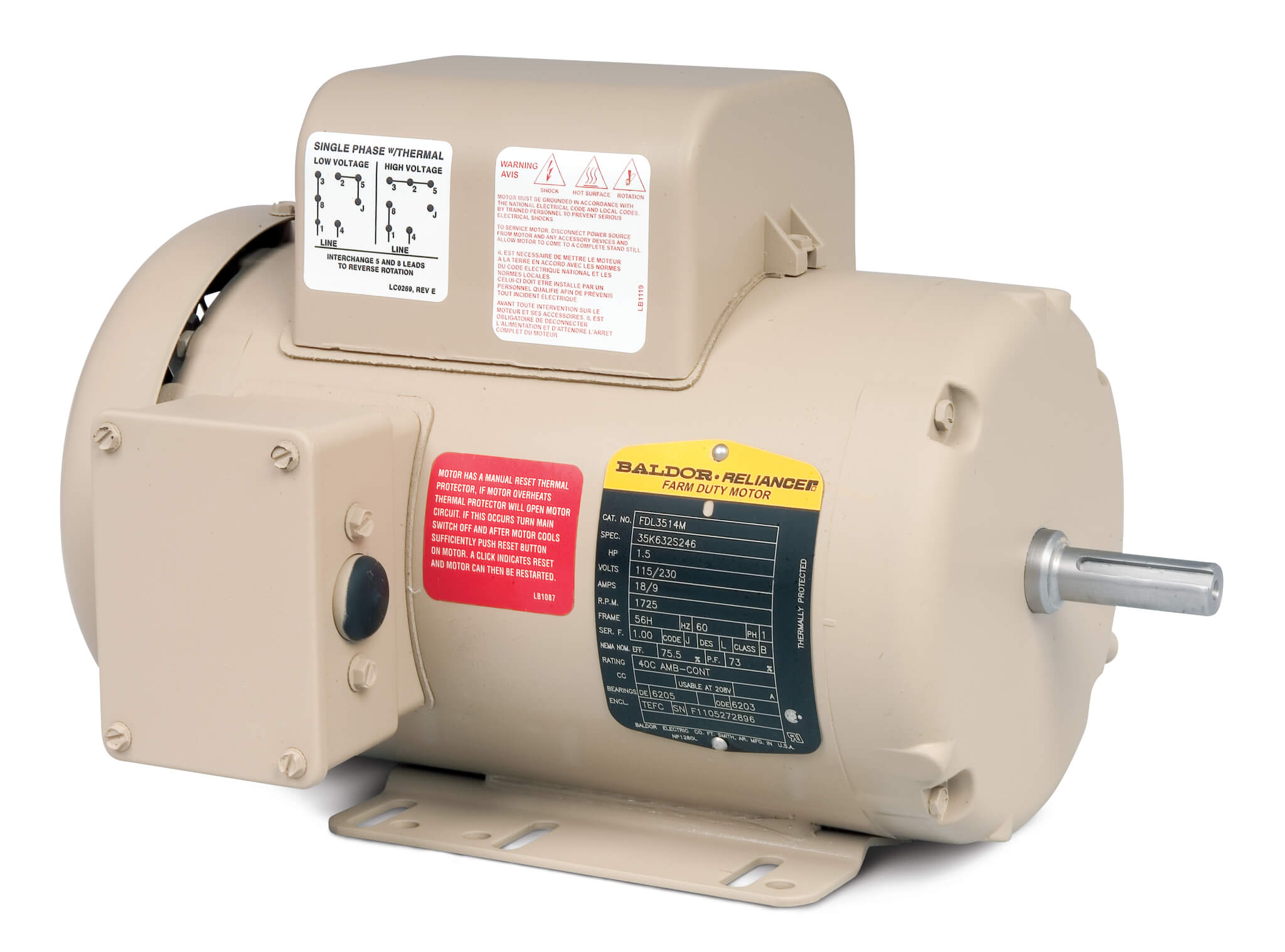

| Item | Farm Duty Motor |
|---|---|
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 11.8/5.9A |
| Amps @ 208v | 6.3A |
| Application | Farm Duty |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Sealed |
| Break-down Torque | 7.19 lbs.-ft. |
| Capacitor Required | Yes |
| Class | Stock |
| Code | L |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | L |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 67% |
| Enclosure Design | TEFC |
| Extended Thru-bolts | No |
| Finish | Painted |
| Frame | 56H |
| Frame Material | Steel |
| Frame Size | 56H |
| Frequency | 60 Hz |
| Full Load Amps | 6.5A |
| Full Load Torque | 2.99 lbs.-ft. |
| Hp | 1 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 4#16 A&J, 2#18 B Ph, 1#14 #4Th |
| Length Less Shaft | 11" |
| Line-line Res. @ 25° C | 2.6968 ohms A Ph/1.2724 ohms B Ph |
| Locked-rotor Torque | 9.56 lbs.-ft. |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Sealed |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
|---|---|
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Standard |
| Motor Shaft Rotation | Reversible |
| Motor Sub Application | General Purpose |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Stud Pattern | 5" x 4.88" |
| Mounting Stud Size | 4.88" x 5" |
| Mounting Type | Rigid Base |
| Multiplier | K |
| Nameplate Rpm | 1725 RPM |
| Nema/iec | NEMA |
| No Load Amps | 3.48A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 67%, 70% |
| Overall Length | 12.91" |
| Phase | 1 |
| Power Factor | 74 |
| Proprietary | No |
| Pull-up Torque | 5.65 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | A |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 1 7/8" |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 42.3A |
| Stud Length | #8-32 |
| Stud Length | 1 3/8" |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 99°C |
| Temp. Rise @ Rated Load | 85°C |
| Temp. Rise @ S. F. Load | 99°C |
| Thermal Protection | Manual |
| Type | 3528L |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/230V |
| Wire Size | 16 AWG |
| Xp Class And Group | None |
| Height (cm) | 33.33 |
|---|---|
| Length (cm) | 49.21 |
| Width (cm) | 34.92 |
| HS Code | 85015220 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 18.45 |
| Style | Model | Voltage | Hp | Frame | Nameplate Rpm | Motor Design | Motor Service Factor | Insulation Class | Service Factor | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | FDL3501M | 115/230V | 1/3 hp | 56 | - | - | - | Class B | 1.35 | $750.26 | |
| A | FDL3504M | 115/230V | 1/2 hp | 56 | 1725 RPM | Capacitor Start | 1.25 | Class B | 1.25 | $1,155.55 | |
| B | FDL3507M | 115/230V | 3/4 hp | 56 | 1725 RPM | Capacitor Start/Run | 1.25 | Class B | 1.25 | $964.25 | |
| A | FDL3510TM | 115/230V | 1 hp | 143T | - | - | - | Class F | 1.15 | $1,164.61 | |
| B | FDL3514M | 115/208-230V | 1 1/2 hp | 56H | 1725 RPM | Capacitor Start/Run | 1 | Class F | 1 | $1,293.55 | |
| B | FDL3514TM | 115/208-230V | 1 1/2 hp | 145T | 1725 RPM | Capacitor Start/Run | 1 | Class F | 1 | $1,272.25 | |
| B | FDL3516TM | 208-230V | 2 hp | 56HZ | 1740 RPM | Capacitor Start/Run | 1.15 | Class F | 1.15 | $1,570.81 |
