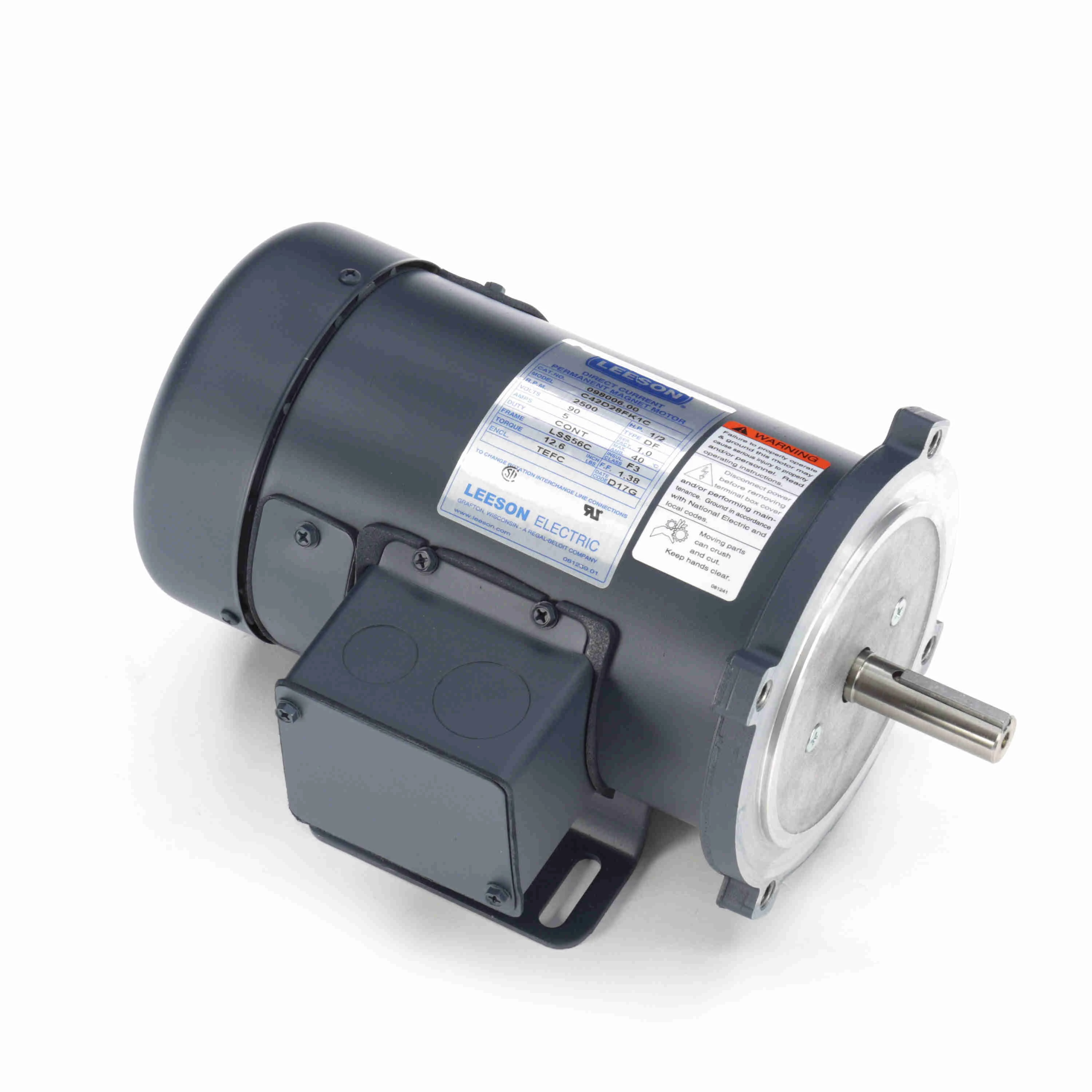

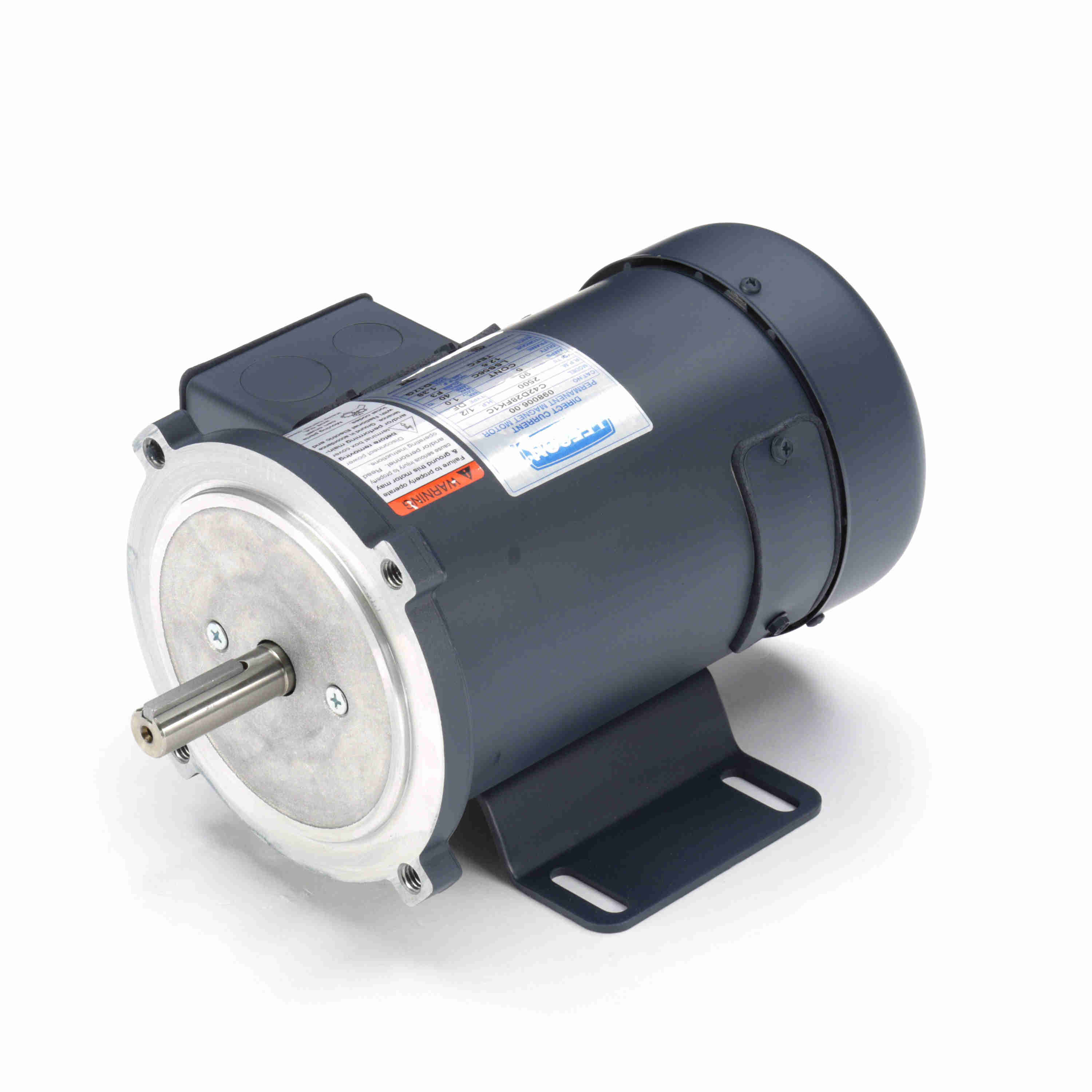

LEESON 098006.00 C42D28FK1 DC Motor | AJ2PFE 48ZG61 / C42D28FK1

LEESON 2500RPM 56C, 1/2HP, TEFC 90VDC PERMANENT MAGNET MOTOR 098006.00, Product In Stock

LEESON 098006.00 C42D28FK1C SCR Motor, 0.50 HP, 90V, 2500 RPM

Item: AJ2PFE

Model: 098006.00

Cross Ref: 48ZG61 / C42D28FK1C

Check Availability

In Stock.

Get it by Monday, Feb 9

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Full Load Torque

We deliver to your doorstep under DAP terms. Customs clearance is for your account

~~$1,005.79~~

10% off

$905.21 /unit (ex. VAT)

Add To Cart

Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now

Payment

Delivery

Specifications
Product Details
Shipping Information
Working Mechanism
Features
FAQ′s

Specifications

Item	DC Motor
Amps	5A
Bearing Type	Ball
Drive End Bearing Size	6203
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	79.9%
Enclosure Type	Tefc
Form Factor	1.38
Frame	56C
Frame Length	6 1/2"
Frame Type	SS56C
Full Load Amps	5A
Full Load Torque	12.6 lbs.-in.
Grease Type	Polyrex EM
Height	10 22/25"
Hp	1/2 hp
Ins. Class	Class F
Insulation Class	Class F
Kw	0.37 kW
Length	14 11/25"
Length Less Shaft	8 7/8"
Lubrication	Polyrex EM
Max. Ambient Temp.	40°C
Motor Application	General Application
Motor Bearings	Ball

Motor Design	Permanent Magnet DC
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Mounting Type	Face, Base
Motor Service Factor	1
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise/Counter Clockwise
Mounting Type	Face/Base
Nameplate Rpm	2500 RPM
No. Of Studs	4
Opp. Drive End Bearing Size	6203
Opp. Drive End Bearing Type	Ball
Overall Length	10 13/16"
Packaging	PG659201.04A
Power	0.37 kW
Removable Base	Yes
Rpm	2500 RPM
Service Factor	1
Shaft Dia.	5/8"
Shaft Length	2.06"
Stud Size	3/8"-16
Thermal Protection	No Protection
Type	SCR Motor
Voltage	90V
Width	10 11/25"
Motor Thermal Protection	None
Standards	CSA (LR2025), UL (E49747)

Product Details

Leeson 098006.00 C42D28FK1 DC motor is used in conveyors, industrial machinery and robotics for reliable and precise rotational motion control in manufacturing and automation processes.

Shipping Information

Height (cm)	27.64
Length (cm)	36.68
Width (cm)	26.52

HS Code	8501524000
Country Of Origin	US
Weight (kg)	10.35

Working Mechanism

This Leeson 098006.00 C42D28FK1 DC motor operates based on the principle of electromagnetism.
It features a permanent magnet design, where a fixed magnet produces a constant magnetic field.
When voltage is applied to the motor's coils, a magnetic field is generated & the interaction between this magnetic field and the fixed magnet causes the rotor to spin.
The direction of rotation is determined by the polarity of the applied voltage, which can be reversed to change the motor's rotation direction.

Features

It features a permanent magnet DC motor design for improved energy efficiency and performance.
This DC motor offers face / base mounting for simplifying the installation process.
It has a Class F insulation, indicating a high level of insulation for enhanced safety.
This Leeson 098006.00 DC motor offers shaft rotation in both CW & CCW directions, enhancing flexibility in motor orientation.

It has a continuous duty cycle, allowing for uninterrupted operation in applications that require continuous use.
This Leeson 098006.00 DC motor has a removable base for maintenance and repairs.
It features a totally enclosed fan-cooled enclosure for protection from dust & moisture.
This DC motor features a keyed shaft design, ensuring secure and reliable power transmission.
It offers ball bearings for their durability and low friction.

Certifications

Frequently Asked Questions

What are the factors to consider while choosing this Leeson DC motor?

Major factors include voltage compatibility, speed control, environmental conditions, insulation class and thermal protection to ensure it meets your application's specific needs.

How is this Leeson 098006.00 C42D28FK1 motor cooled?

This motor is cooled by a fan integrated into its design, ensuring efficient cooling during operation.

What are the factors to consider while choosing this Leeson 098006.00 C42D28FK1 DC motor?

Ensure proper electrical connections and use appropriate fuses or circuit breakers to prevent electrical hazards.
Implement external thermal protection measures to avoid overheating, as this motor lacks built-in thermal protection.
Regularly inspect and maintain the motor for safe and efficient operation.
Provide adequate ventilation in the motor's operating environment to prevent excessive heat buildup.
Operate the motor within specified temperature and environmental conditions to avoid damage and ensure safety.
Establish and communicate emergency procedures in case of motor malfunctions or unexpected events.
Implement lockout / tagout procedures during maintenance or repair work to prevent accidental startup.
Properly ground the motor and associated equipment to prevent electrical hazards.
Be cautious when adjusting the applied voltage to control motor speed to avoid excessive speed that can lead to unsafe conditions or damage.
Consider potential environmental hazards related to materials or substances being handled and take appropriate safety measures.
