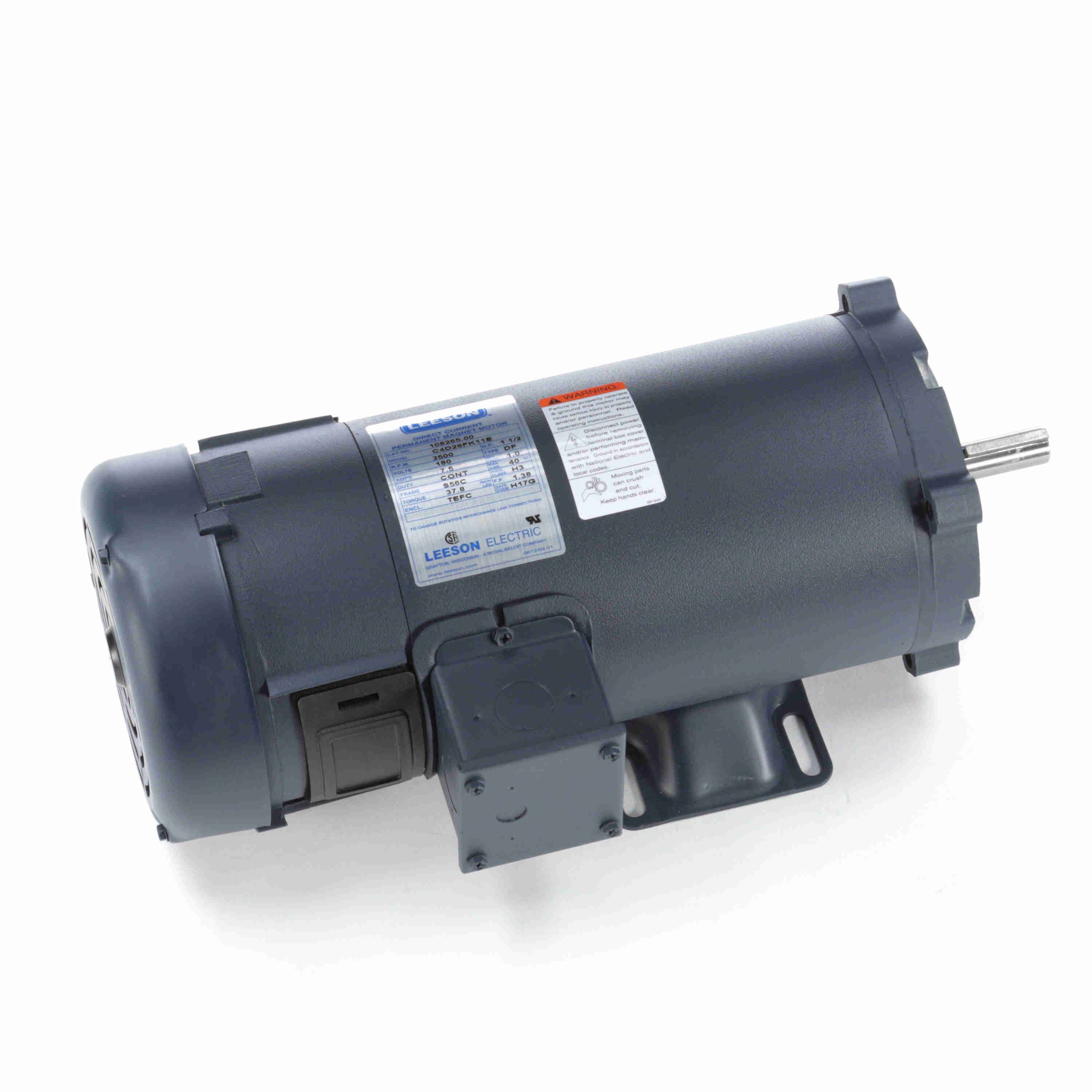

| Item | DC Motor |
|---|---|
| Amps | 7.5A |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 15/16" |
| Brush Material | Carbon |
| Brush Type | Carbon |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.3% |
| Enclosure Type | Tefc |
| Form Factor | 1.38 |
| Frame | 56C |
| Frame Length | 7.97" |
| Frame Material | Steel |
| Frame Type | S56C |
| Full Load Amps | 7.5A |
| Full Load Torque | 37.8 lbs.-in. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Ins. Class | Class H |
| Insulation Class | Class H |
| Kw | 1.1 kW |
| Length | 19 1/2" |
| Length Less Shaft | 13 3/8" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
|---|---|
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Face/Base |
| Nameplate Rpm | 2500 RPM |
| No. Of Studs | 4 |
| Nominal Efficiency | 70.1% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 15 5/16" |
| Packaging | PG659401.04Z |
| Power | 1.1 kW |
| Removable Base | Yes |
| Rpm | 2500 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Thermal Protection | No Protection |
| Type | DF |
| Voltage | 180V |
| Width | 10 11/25" |
| Motor Thermal Protection | None |
| Standards | CSA (LR2025), UL (E49747) |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 49.53 |
| Width (cm) | 26.52 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 20.7 |
