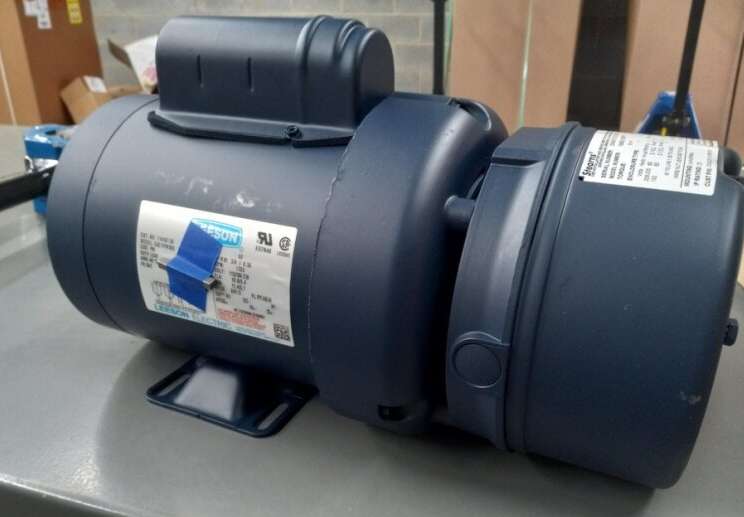

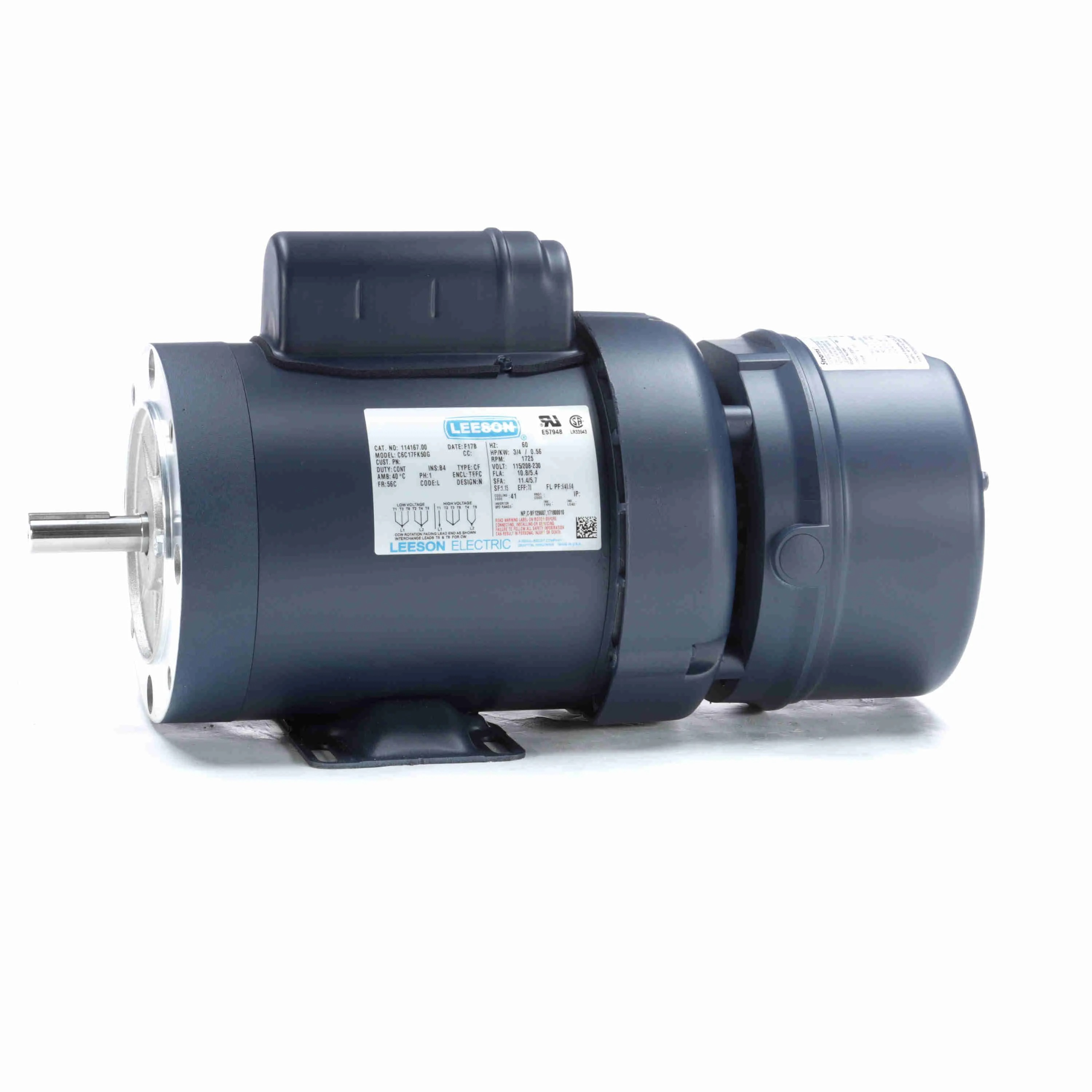

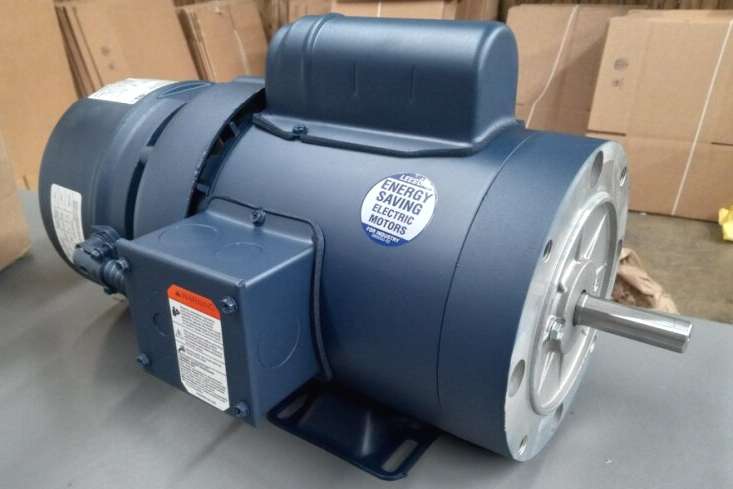

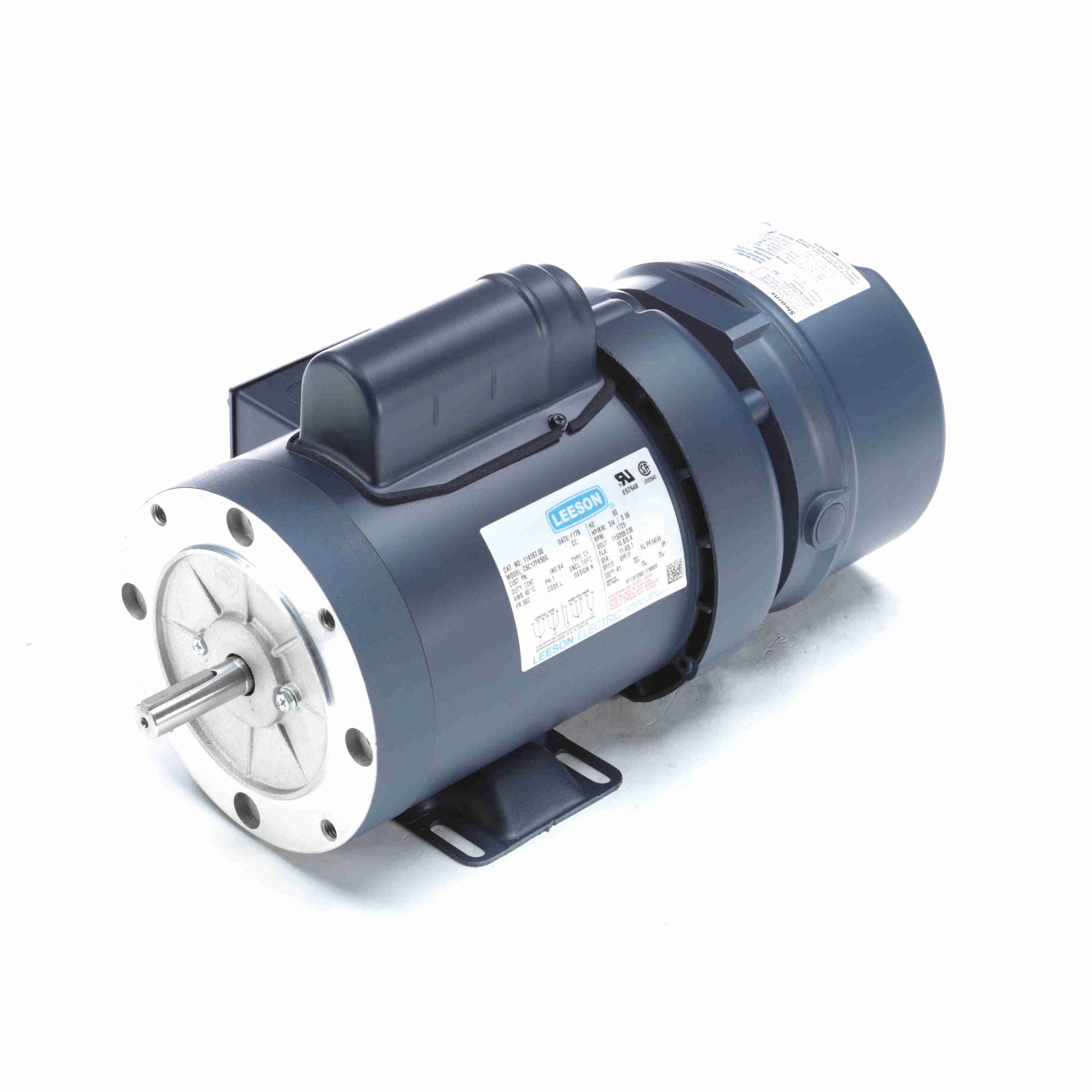

| Item | Brake Motor |
|---|---|
| Amps | 10.8/5.4A |
| Application | Brake Motor |
| Bearing Protection | Double Shield |
| Bearing Type | Ball |
| Brake Model/series | Series 56000 |
| Brake Rating | 6 lbs.-ft. |
| Break-down Torque | 98.47 lbs.-ft. |
| Code | L |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | L, N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56C |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 5.46A |
| Grease Type | Polyrex EM |
| Height | 9 22/25" |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Includes | Key |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Inverter Rated | No |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 0.56 kW |
| Length | 22 4/5" |
| Length Less Shaft | 14 3/8" |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1725 RPM |
| Motor Application | Brake Motor |
|---|---|
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CCWLE |
| Motor Thermal Protection | No Protection |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.56 kW |
| Overall Length | 16 3/16" |
| Packaging | B |
| Phase | 1 |
| Power | 0.56 kW |
| Power Factor | 64 |
| Resistance Main | 2.6 ohms |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Series | Series 56000 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Standards | Csa, Ul Recognized |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | CF |
| Usable @ 200v | No |
| Voltage | 115/208-230V |
| Width | 10 14/25" |
| Height (cm) | 25.1 |
|---|---|
| Length (cm) | 57.91 |
| Width (cm) | 26.82 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 18 |
| Style | Model | Hp | Nameplate Rpm | Frame | Design | Brake Rating | Motor Thermal Protection | Insulation Class | Power Factor | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

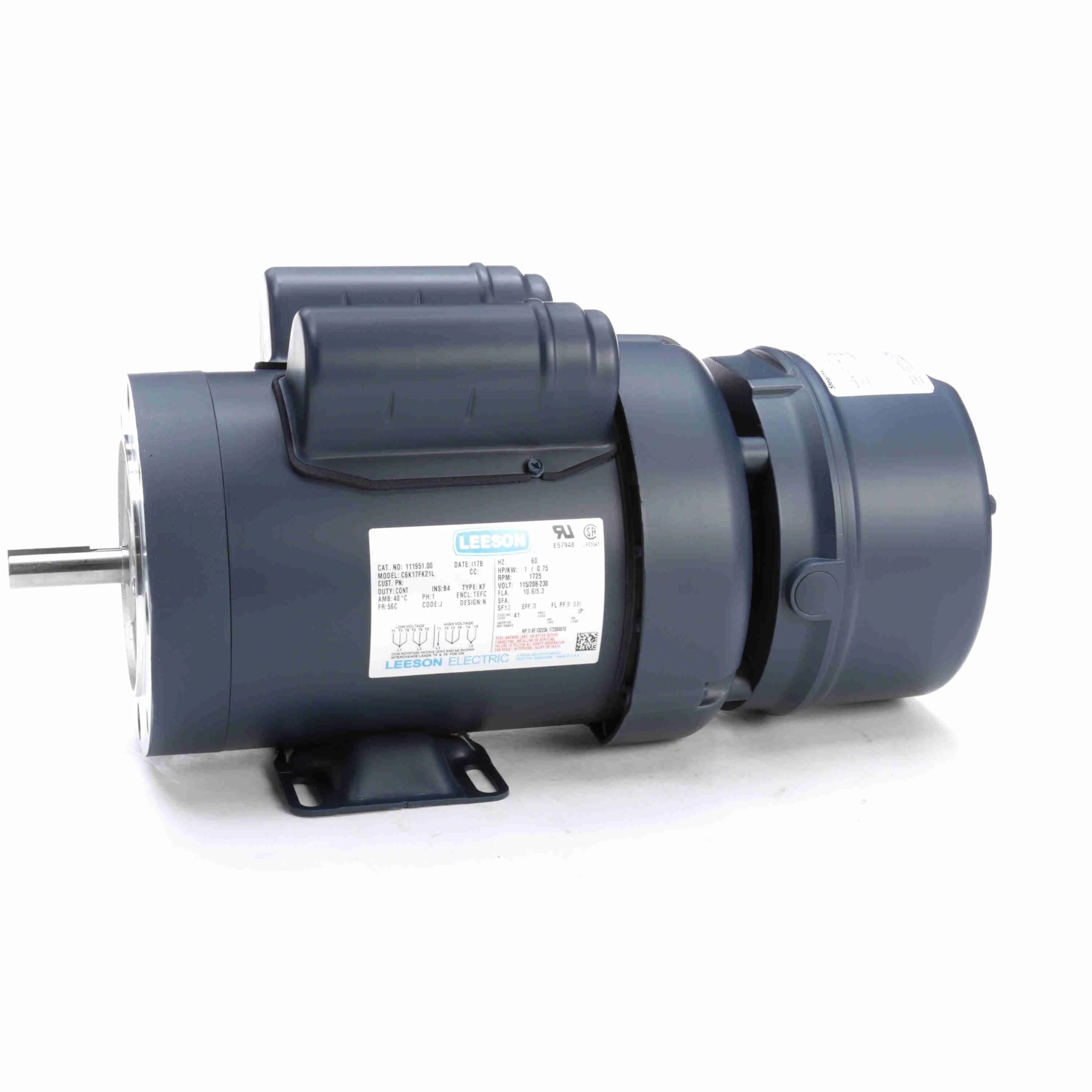

| A | 111951.00 | 1 hp | 1725 RPM | 56C | J, N | 6 lbs.-ft. | No Protection | Class B | 81 | $1,817.08 | |

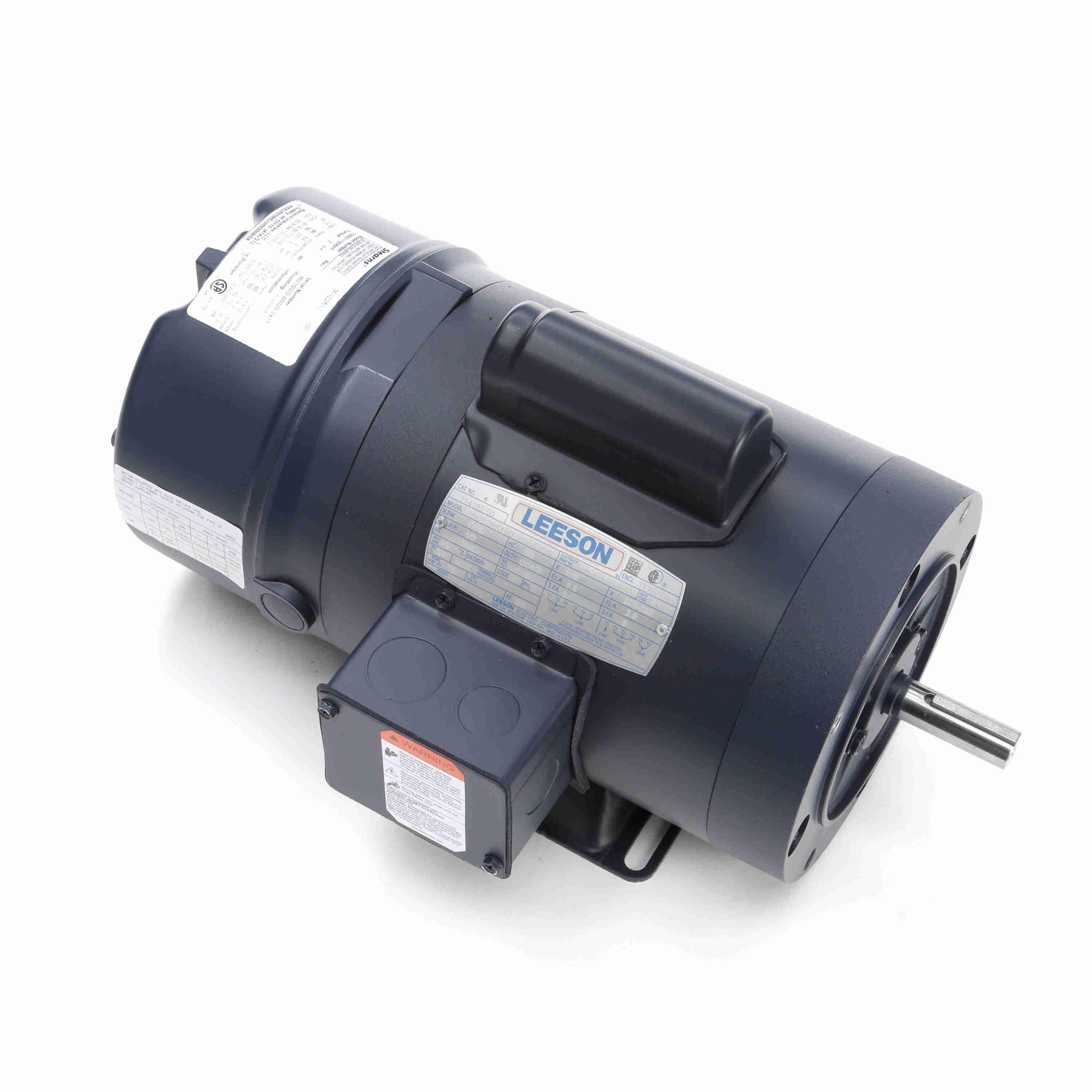

| B | 114165.00 | 33/100 hp | 1800 RPM | 56C | L, N | - | - | Class B | 54 | $1,782.19 | |

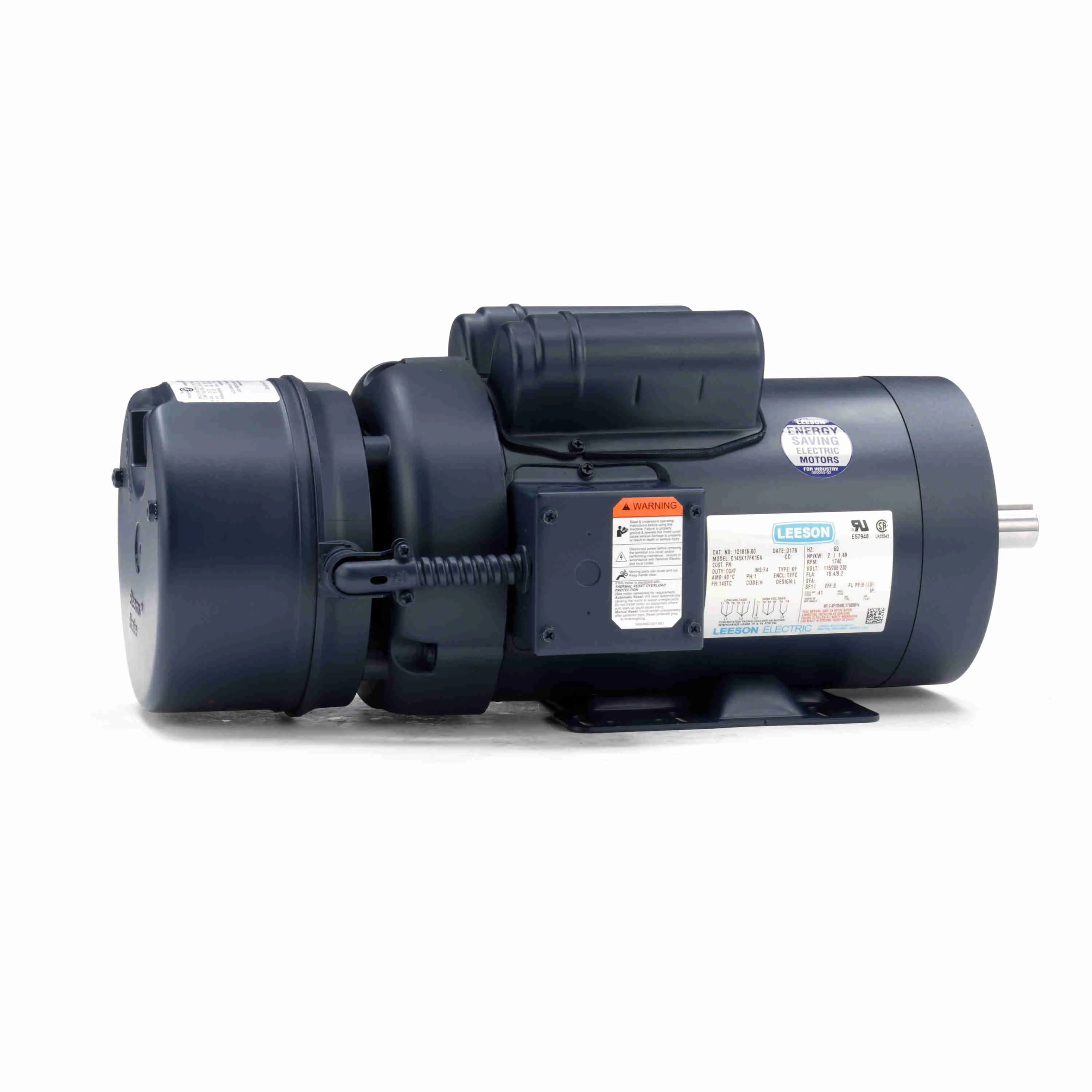

| C | 121816.00 | 2 hp | 1740 RPM | 145TC | - | - | - | Class F | 86 | $3,150.16 | |

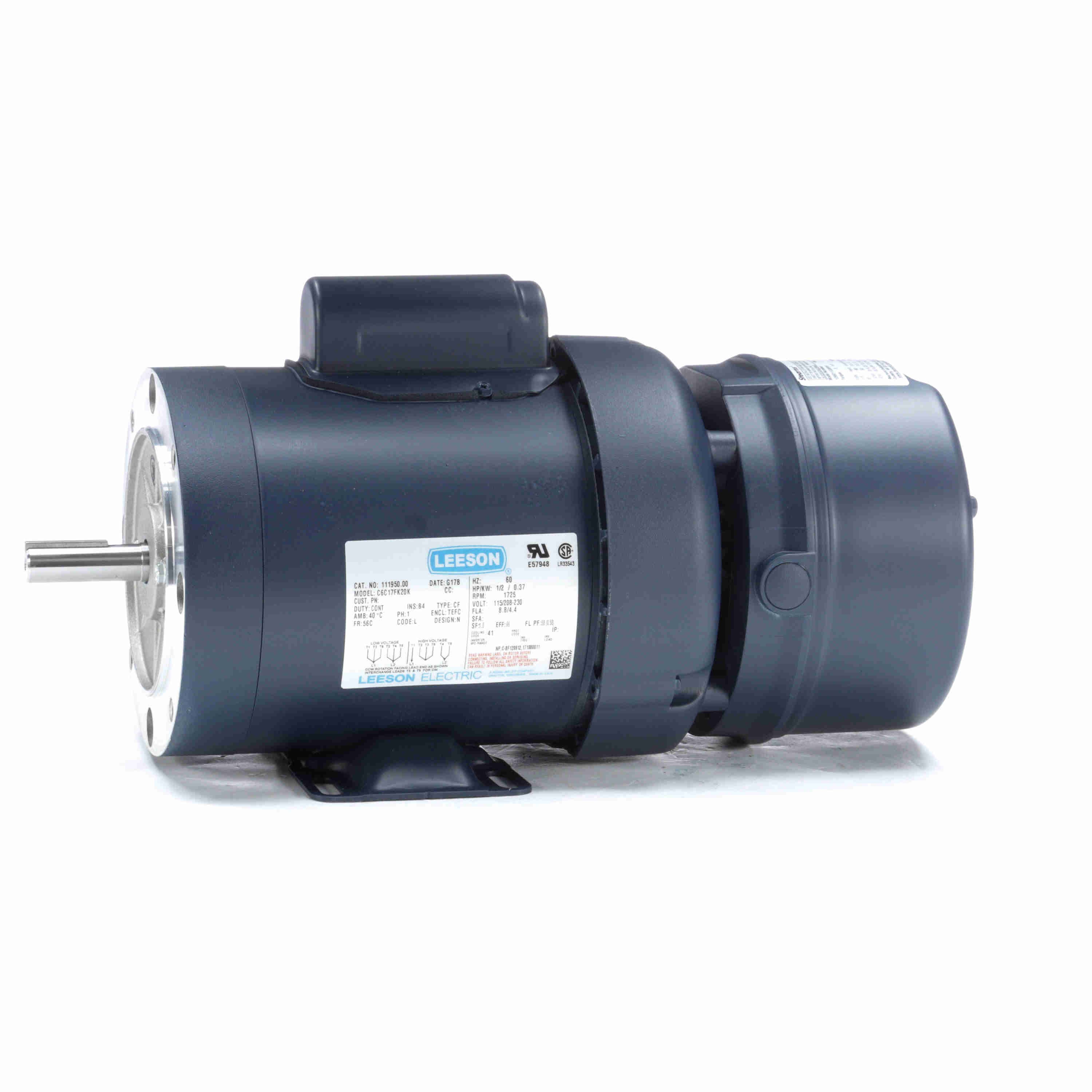

| D | 111950.00 | 1/2 hp | 1725 RPM | 56C | L, N | 3 lbs.-ft. | Manual | Class B | 58 | $1,183.36 |
