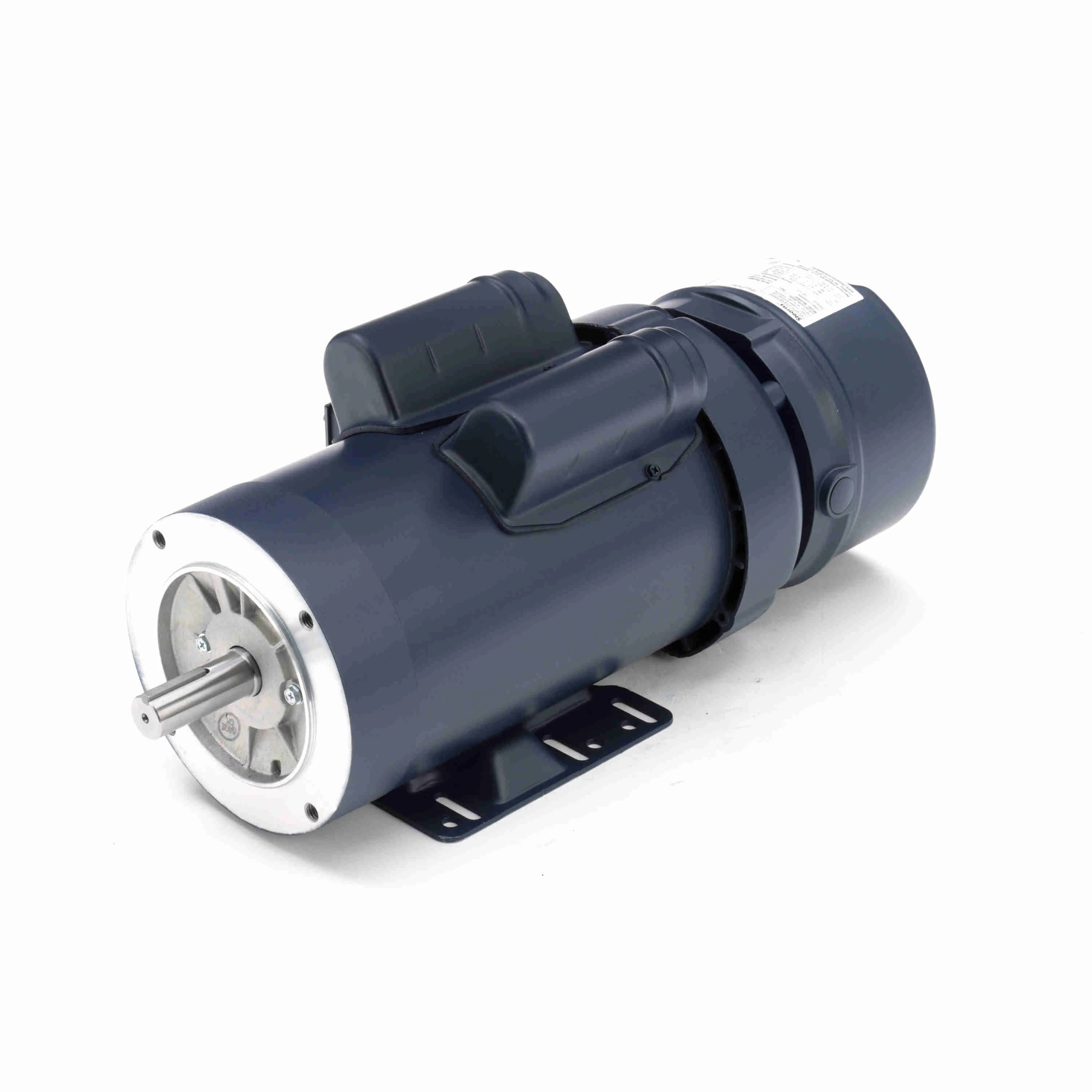

| Item | Brake Motor |
|---|---|
| Amps | 18.4/9.2A |
| Application | Brake Motor |
| Bearing Type | Ball |
| Break-down Torque | 15.4 lbs.-ft. |
| Code | H |
| Conduit Box Position | F1 |
| Design Code | L |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | Tefc |
| Frame | 145TC |
| Frame Length | 8 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 18.4/9.2A |
| Height | 8.82" |
| Hp | 2 hp |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | H |
| Kw | 1.5 kW |
| Length | 19.23" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1740 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Orientation | Horizontal |
| Motor Shaft Design | T |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1740 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.49 kW |
| Overall Length | 19 3/16" |
| Packaging | B |
| Phase | 1 |
| Power | 1.49 kW |
| Power Factor | 86 |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | KF |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Width | 8 16/25" |
| Height (cm) | 22.4 |
|---|---|
| Length (cm) | 48.84 |
| Width (cm) | 21.95 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 24.75 |
| Style | Model | Hp | Nameplate Rpm | Frame | Design | Brake Rating | Motor Thermal Protection | Insulation Class | Power Factor | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 111951.00 | 1 hp | 1725 RPM | 56C | J, N | 6 lbs.-ft. | No Protection | Class B | 81 | $1,817.08 | |
| B | 114165.00 | 33/100 hp | 1800 RPM | 56C | L, N | - | - | Class B | 54 | $1,782.19 | |
| C | 114167.00 | 3/4 hp | 1725 RPM | 56C | L, N | 6 lbs.-ft. | No Protection | Class B | 64 | $1,763.54 | |
| D | 111950.00 | 1/2 hp | 1725 RPM | 56C | L, N | 3 lbs.-ft. | Manual | Class B | 58 | $1,183.36 |
