| Item | Brake Motor |
|---|---|
| Amps | 4.8/2.4A |
| Break-down Torque | 4.5 lbs.-ft. |
| Code | L |
| Design | B, L |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 145T |
| Frame Length | 7 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 4.6-4.8/2.4A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 1.1 kW |
| Length | 19 1/2" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
|---|---|
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 3 |
| Power | 1.1 kW |
| Power Factor | 67.7 |
| Resistance Main | 9.12 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Type | TF |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
| Height (cm) | 27.64 |
|---|---|
| Length (cm) | 49.53 |
| Width (cm) | 26.52 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 22.95 |
| Style | Model | Voltage | Hp | Nameplate Rpm | Design | Frame | Insulation Class | Power Factor | Rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

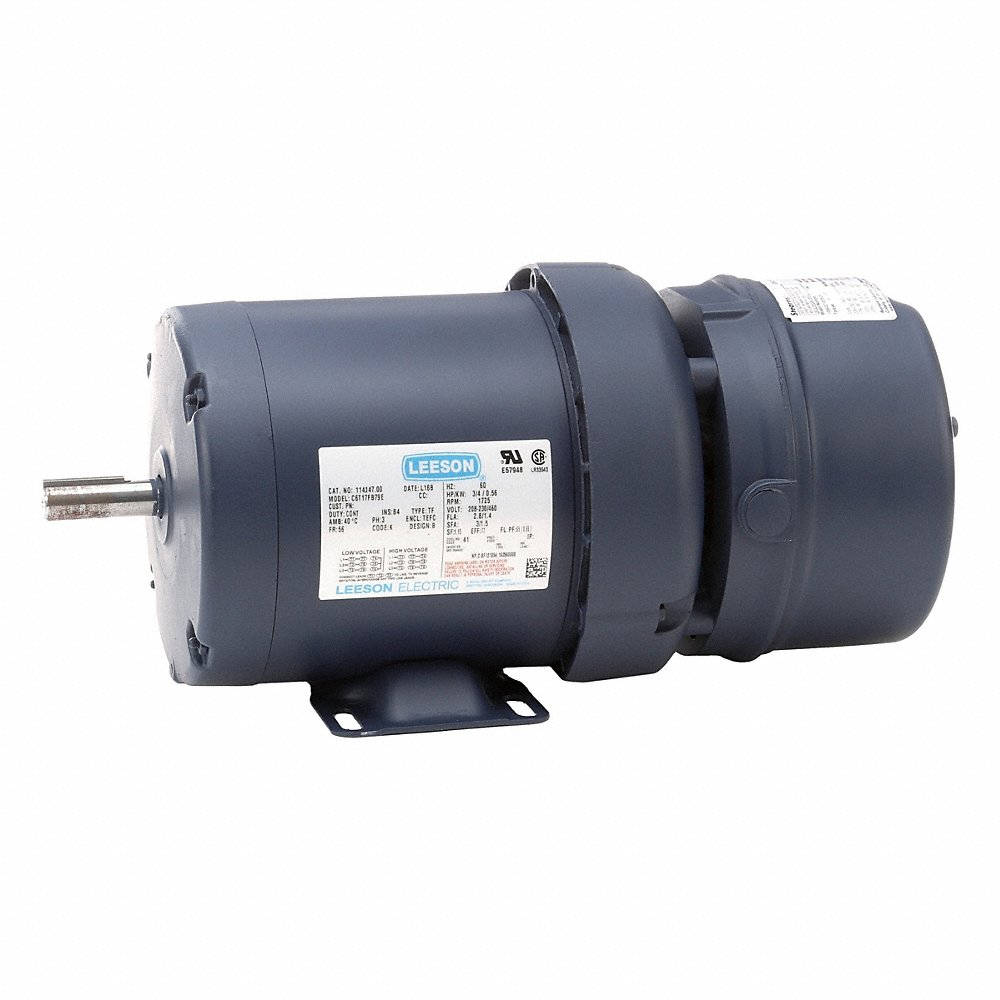

| A | 114147.00 | 208-230/460V | 3/4 hp | 1800 RPM | B, K | 56 | Class B | 65 | 1700-1800 RPM | $1,286.21 | |

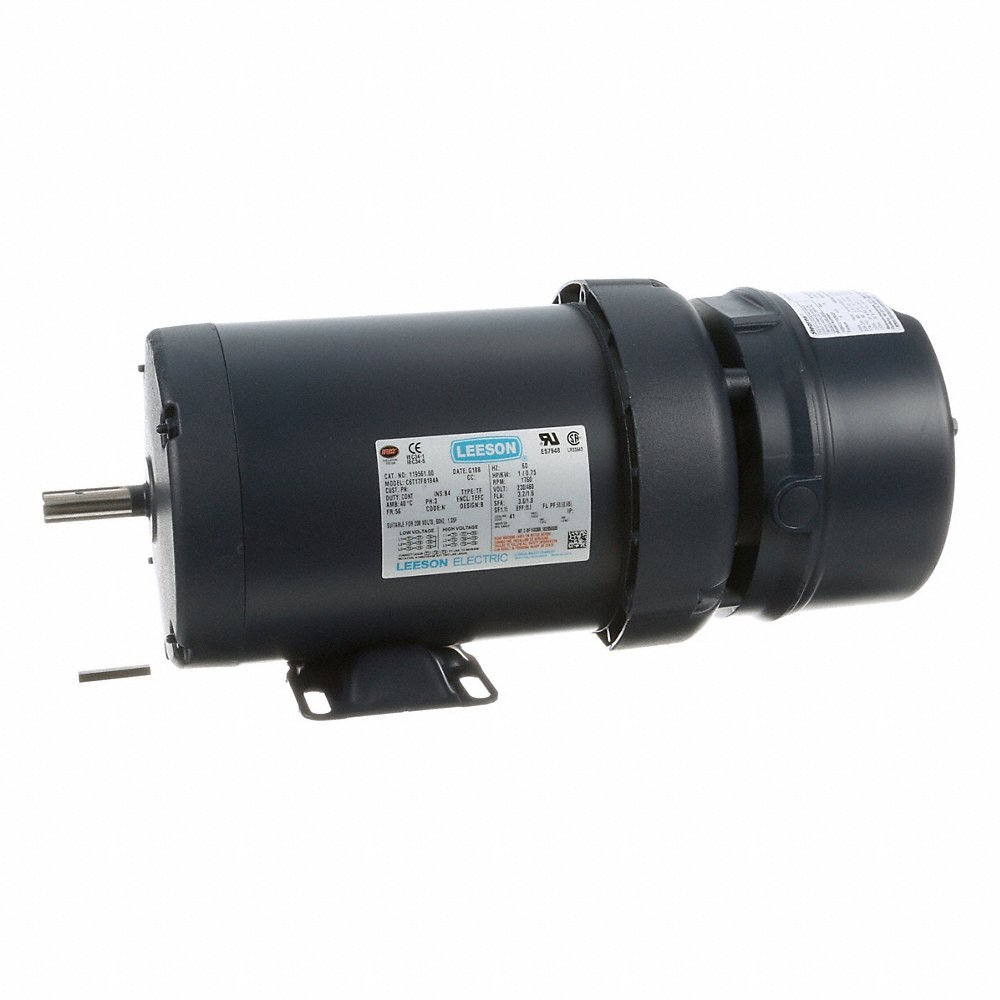

| B | 119561.00 | 230/460V | 1 hp | 1800 RPM | B, N | 56 | Class B | 68.5 | 1700-1800 RPM | $1,531.46 | |
| C | 122245.00 | 230/460V | 1 hp | 1200 RPM | B, K | 145T | Class F | 60 | 1100-1200 RPM | $2,160.94 | |
| D | 122247.00 | 208-230/460V | 2 hp | 1745 RPM | B, L | 145 | Class F | 75.6 | 1700-1800 RPM | $1,765.27 | |
| E | 140636.00 | 230/460V | 10 hp | 1800 RPM | B, H | 215T | Class F | 77 | 1700-1800 RPM | $4,114.01 |
