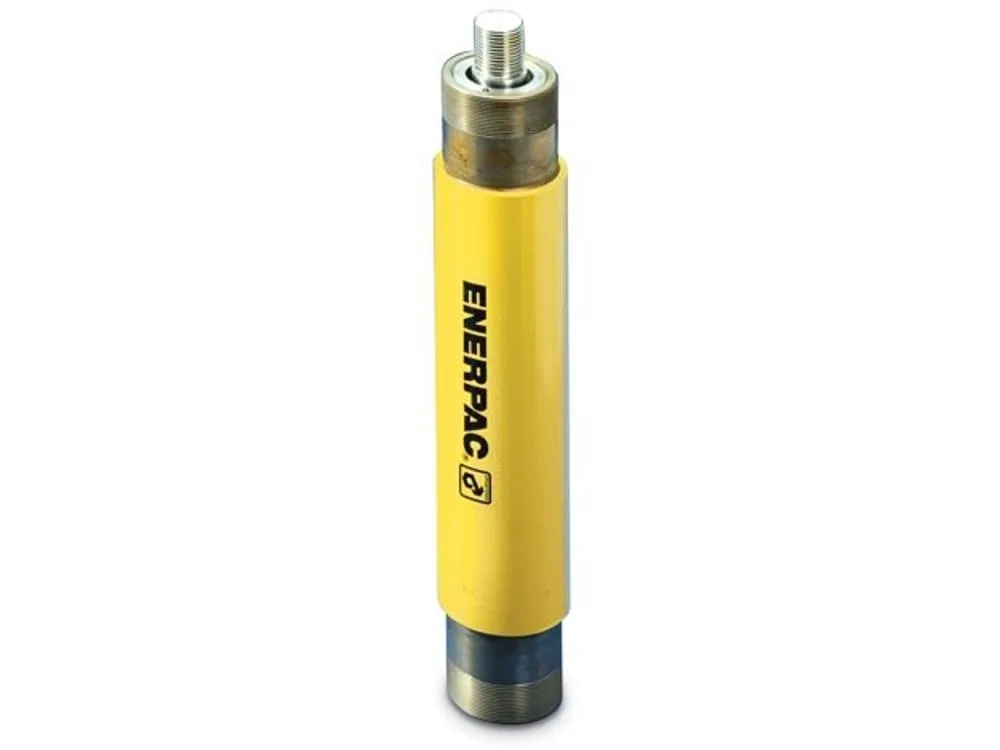

| Item | Hydraulic Cylinder |
|---|---|
| Body Material | Steel |
| Center Hole Diameter | 1 1/8" |
| Clevis Eye Mounting Dimension Length | 19 8/25" |
| Clevis Eye Mounting Dimension M | 2.05" |
| Clevis Eye Mounting Dimension Overall Length | 25.57" |
| Collapsed Height | 15.31" |
| Collar Thread Length | 22/25" |
| Collar Thread Size | 2 3/16"-16 |
| Cylinder Bore | 2" |
| Cylinder Capacity Advance At 5000 Psi | 15500 lbs. |
| Cylinder Capacity Retract At 5000 Psi | 8300 lbs. |
| Cylinder Type | High Cycle |
| Effective Push Area | 3.14 sq. in. |
| Extended Height | 21 14/25" |
| Finish | Paint |
| Handle | No |
| Internal Base Thread Length | 0.94" |
| Internal Base Thread Size | 2 3/16"-16 |
| Length | 14.13" |
| Link Width | 2.13" |
| Material | Steel |
|---|---|
| Max. Operating Pressure | 10000 psi |
| Max. Push Capacity | 16 ton. |
| Nominal Capacity | 15 ton. |
| Nominal Stroke Length | 6" |
| Oil Capacity | 19.63 cu. in. |
| Oil Capacity Push | 19.63 cu. in. |
| Outside Dia. | 3" |
| Plunger Dia. | 1.38" |
| Plunger Outside Thread Size | 1 1/8"-12 |
| Plunger Thread Length | 1" |
| Plunger Thread Size | 1 1/8"-12 |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 15.31" |
| Saddle Protrusion From Plunger | 1.19" |
| Single Acting/double Acting | Double Acting |
| Stroke Length | 6 1/4" |
| Top To Retract Port | 2.9" |
| Weighing Capacity | 16 ton. |
| Height (cm) | 44.73 |
|---|---|
| Length (cm) | 7.62 |
| Width (cm) | 7.62 |
| HS Code | 8412210030 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 9.9225 |
