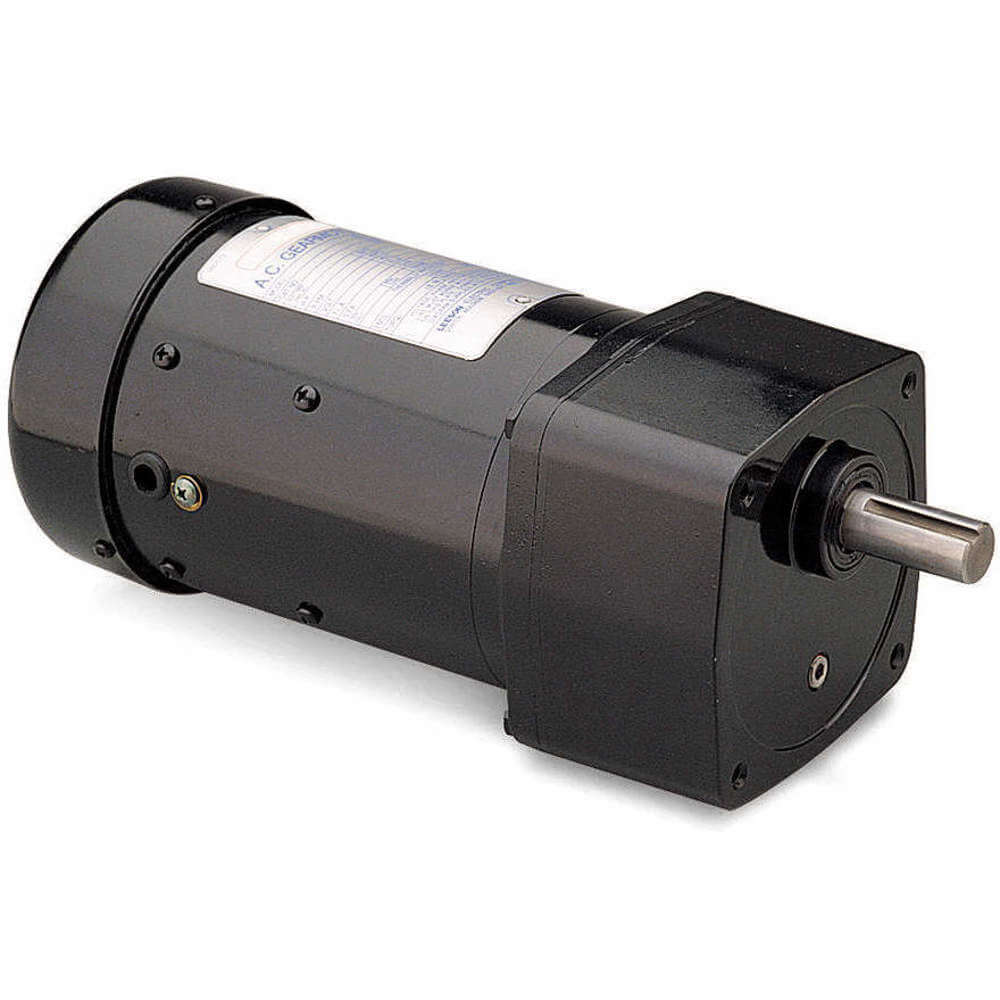

| Item | AC Gearmotor |
|---|---|
| Agma Gear Class | Class 9 |
| Amps | 2.9/1.45A |
| Application | Inverter Duty |
| Bearing Type | Needle Roller, Oversized On Output Shaft |
| Capacitor Required | Yes |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frequency | 50/60 Hz |
| Full Load Current | 1.45/2.9A |
| Gear Case Material | Die Cast Aluminium |
| Gear Material | Precision Machined And Hardened |
| Gear Ratio | 58:1 |
| Gearmotor Shaft Type | Single |
| Housing Material | Die Cast Aluminium |
| Includes Capacitor | Capacitor Included |
| Input Horsepower | 0.167 hp |
| Input Hp | 1/6 hp |
| Length Less Shaft | 11 3/4" |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 270 lbs.-in. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Thermal Protection | None |
| Motor Type | Permanent Split Capacitor |
|---|---|
| Mount Type | Any Position |
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 29 RPM |
| Nameplate Rpm Range | 16-30 RPM |
| No. Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Output Shaft Diameter | 3/4" |
| Output Shaft Length | 1 5/8" |
| Overall Height | 4.97" |
| Overall Width | 4.97" |
| Overhung Load | 327 lbs. |
| Overhung Load Capacity | 327 lbs.-ft. |
| Phase | 1 |
| Rotation | CW/CCW |
| Rpm Range | 16-30 RPM |
| Seal Type | Heavy Duty, Single Lip, Spring Loaded |
| Seals | Heavy Duty, Single Lip, Spring Loaded |
| Shaft Orientation | Parallel |
| Thermal Protection | No |
| Type | Permanent Split Capacitor |
| Brake Type | None |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Height (cm) | 27.94 |
|---|---|
| Length (cm) | 49.78 |
| Width (cm) | 26.42 |
| HS Code | 8501404020 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 11.9025 |
